Technical Paramaters of Ion Chromatography Instrument
|
Product Name
|

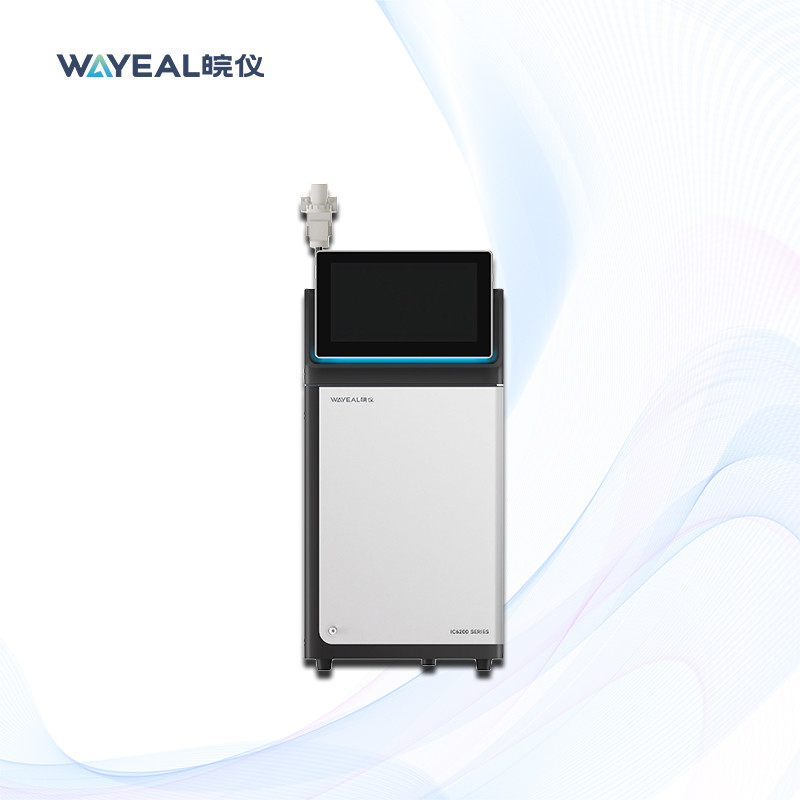

IC6200 Ion Chromatography Instrument
|
|
System Parameters
|
|
|
Qualitative repeatability
|
≤0.5%
|
|
Quantitative repeatability
|
≤1.0%
|
|
Pump System
|
|
|
Pump material
|
PEEK
|
|
Pump flow rate
|
(0.001~10.000) mL/min
|
|
Pump head pressure resistance
|
(0 ~ 35) MPa
|
|
Flow rate setting inaccuracy
|
<0.1%
|
|
Flow stability
|
<0.1%
|
|
Pressure display accuracy
|
0.01Mpa
|
|
Pressure pulsation
|
<0.5%
|
|
Conductivity Detector
|
|
|
Baseline noise
|
≤0.1%FS
|
|
Baseline drift
|
≤0.5%FS
|
|
Minimum detectable concentration (Cl)
|
≤ 0.0002ug/mL
|
|
Minimum detection concentration (Li)
|
≤ 0.0001ug/mL
|
|
Conductivity cell volume
|
≤ 0.6μL
|
|
Conductivity detection range
|
0-15000μS/cm
|
|
Detector resolution
|
0.00238nS/cm
|
|
Conductivity cell temperature setting error
|
±0.01°C
|
|
Suppressor
|
|
|
Constant current source range
|
0~500mA in 0.1mA increments
|
|
Column Oven
|
|
|
Temperature range
|
room temperature: +5°C~85°C
|
|
Control temperature stability
|
≤ 0.1°C
|
|

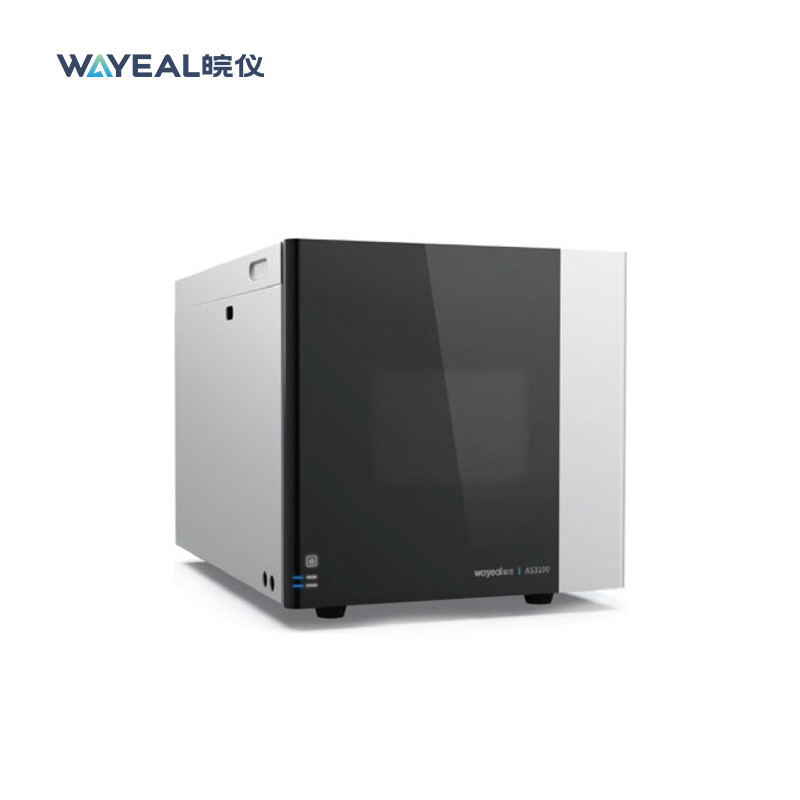

Autosampler
|
|
|
Injection Bits
|
48/96/120
|
|
Refrigeration temperature range
|
4-30°C
|
|
Repeatability
|
Full loop injection < 0.3% RSD,
Partial injection < 0.5% RSD,
Non-destructive injection < 1 % RSD (injection volume > 5uL)
|
|
Linearity
|
>0.999
|
|
Cross-contamination
|
<0.01%
|
|
Eluent Generator
|
|
|
Flow rate range
|
0.001~3.000mL/min
|
|
Software
|
Self-developed SmartLab
|
System configuration of IC6200 Ion Chromatography Instrument
Pump: Full PEEK pump head, resistant to acids, alkalis and reversed-phase organic solvents.
Detector: Conductivity detector, UV detector and Amperometric detector are optional, with high sensitivity to detect ion concentration.
Column: self-developed anion and cation chromatographic columns, guard columns, for the separation of different ions.

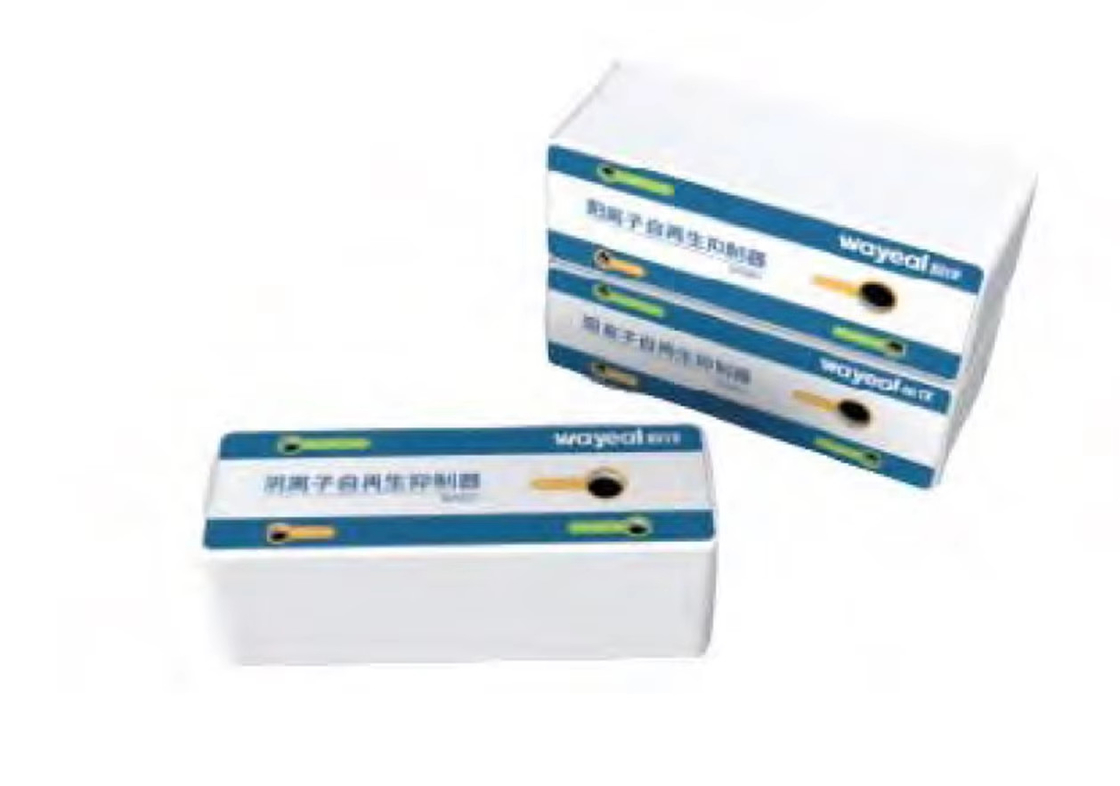

Suppressor: Electrolyte auto-regeneration membrane suppressor, reduces background conductivity, increases detection sensitivity, reagent-free.
Software: SmarLab Chromatography Data System for instrument control, data acquisition and analysis.
Applications of Ion Chromatography Instrument in the Environmental Industry
Water Quality Monitoring: Analysis of anions (e.g., nitrate, phosphate, sulfate, chloride) and cations (e.g., sodium, potassium, calcium, magnesium) in drinking water, wastewater, surface water, and groundwater.
Air Quality Monitoring: Determination of ionic species in particulate matter (PM2.5, PM10) and rainwater for acid rain studies.
Soil Testing: Determines the anion and cation content of soluble salts in the soil, assesses the degree of soil salinization, and guides agricultural production.
