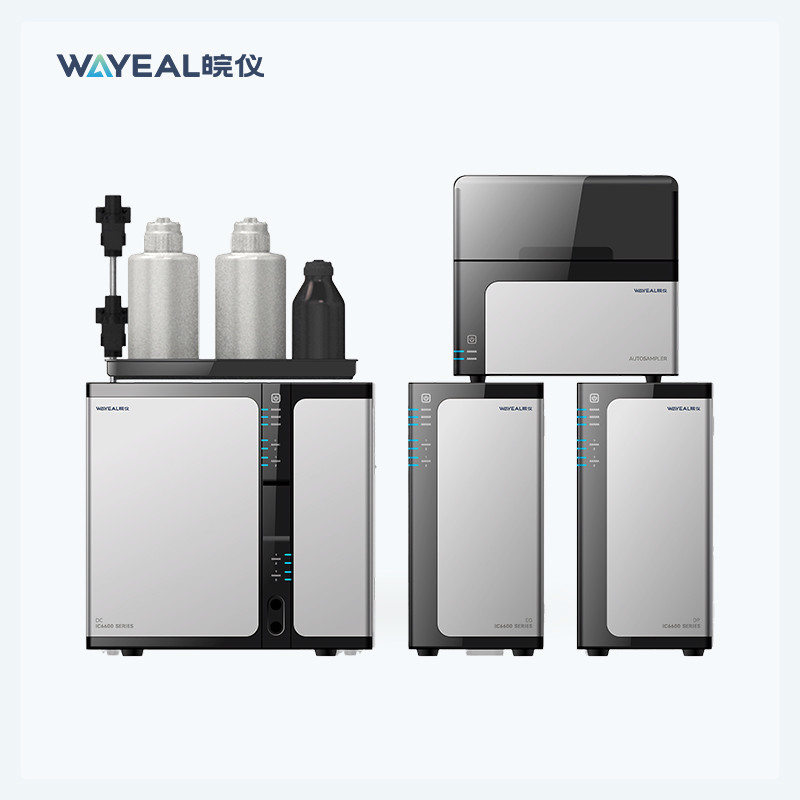

High Precious Ion Chromatograph Instrument System For Water Analysis 220V 50Hz

Name: High Precious Ion Chromatograph Instrument System For Water Analysis 220V 50Hz
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: IC6600
Price: 15,400.00 USD
Availability: InStock

Basic Properties

Place of Origin: Anhui, China

Brand Name: Wayeal

Certification: ISO, CE

Model Number: IC6600

Trading Properties

Minimum Order Quantity: 1

Price: Negotiation

Payment Terms: L/C, T/T

Supply Ability: 30 Pieces Per Month

ion chromatography instrument

ion chromatography machine

ion chromatography system

Specifications

Product Name:	Ion Chromatography Instrument	Ambient Temperature:	10-40℃
Working Power:	220V, 50Hz	Flow Setting Error:	<0.1%
Pressure Display Accuracy:	0.001Mpa	Pressure Pulsation:	<0.25%
High Light:	50HZ Ion Chromatography Instrument , 220V Ion Chromatography Instrument , 220V ion chromatography system

Product Description

High Precious Ion Chromatograph System Instrument for Water Analysis

Introduction of Ion Chromatography Instrument

The multifunctional ion chromatograph features high efficiency, high sensitivity and high reliability. Dual system modular design, users can choose the system configuration according to their needs.

Features of Ion Chromatography Instrument

1. Dual system integrated design for simultaneous detection of anions and cations.
2. Conductivity and electrochemical detectors to meet the detection needs of different substances.
3. Two-dimensional ion chromatography (valve switching) and post-column derivatization can be realized.
4. High-end dual pump detection system can be configured, or single pump single system detection can be customized according to customer requirements. Customize your chromatography solution.

Technical Data of Ion Chromatography Instrument

High Precious Ion Chromatograph Instrument System For Water Analysis 220V 50Hz
System Parameters
Qualitative repeatability	≤0.1%
Quantitative repeatability	≤0.5%
Pump System
Pump flow rate range	(0.001～12.000)mL/min
Flow rate setting error	＜0.1%
Flow rate stability	＜0.1%
Pressure display accuracy	0.01Mpa
Pressure pulsation	＜0.25%
Amperage Detector
Type	Thin layer structure, automatic range
ve voltage range	-2.0V---2.0V
Drive voltage resolution	0.001V
Output signal range	50pc---200uC
DC mode	1pA---74uA
Noise	Integral mode <30pC DC mode <5pA; DC mode static noise <1pA;
Cell volume	＜0.2μL
Min detection concentration	I^-——0.001μg/mL
Min detection concentration	Fructose - 0.01μg/mL
Min detection concentration	CN^-——0.0005μg/mL
Suppressor
Constant current range	0-500mA
Dead volume	50μL
Suppressor volume	170ueq/min
Pressure resistance	3MPa
Column Oven
Temperature range	Room +5°C~70°C
Temperature control stability	≤0.1℃
Temperature seeting error	0.05℃
Autosampler
Quantitative repeatability	Full loop injection <0.3%RSD
Linear	>0.999
Injection positions	120 or 96
