250MM Column PEEK Pump Ion Chromatography Equipment Wayeal IC6200

Name: 250MM Column PEEK Pump Ion Chromatography Equipment Wayeal IC6200
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: IC6200
Price: 15,400.00 USD
Availability: InStock

Basic Properties

Place of Origin: Anhui, China

Brand Name: Wayeal

Certification: ISO, CE

Model Number: IC6200

Trading Properties

Minimum Order Quantity: 1

Price: Negotiation

Payment Terms: L/C, T/T

Supply Ability: 30 Pieces Per Month

ion chromatography system

Specifications

Product Name:	Ion Chromatography Instrument	Application:	Drinking Water, Ground Water
Power Supply:	220V, 50~60Hz	Qualitative Repeatability:	≤0.5%
Quantitative Repeatability:	≤0.2%	Pump Pressure:	0~42PMPa
High Light:	IC6250 Ion Chromatography Equipment , 250MM Ion Chromatography Equipment , PEEK Pump Ion Chromatography Instrument

Product Description

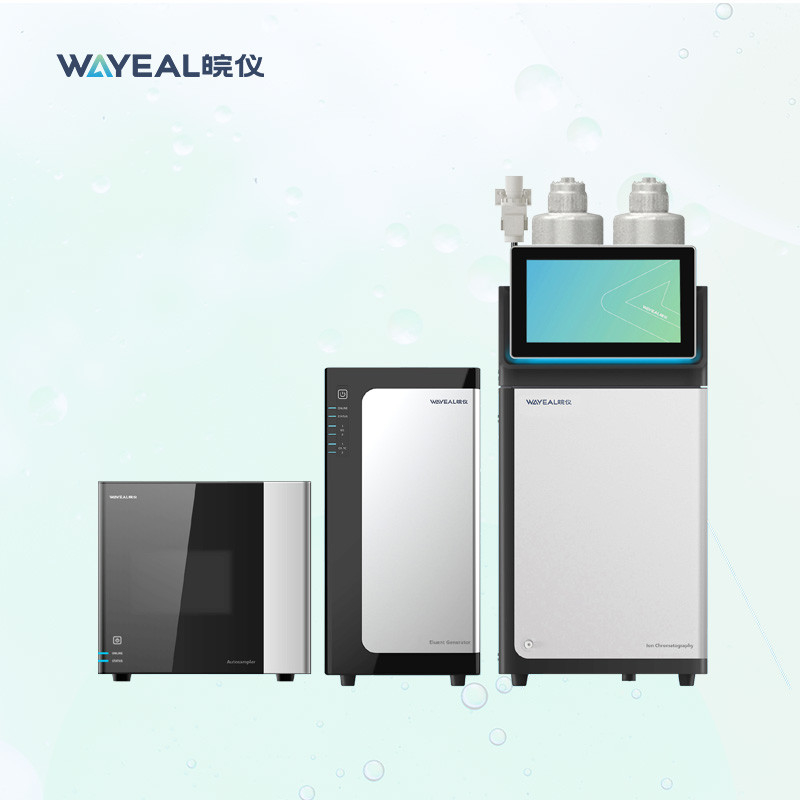

Wayeal IC6200 250MM Column PEEK Pump Ion Chromatography Instruments Equipment

Introduction of Ion Chromatography Instrument

Ion chromatography or Ion exchange chromatography is a branch of High-Performance Liquid Chromatography or HPLC. It has a potential of separating charged molecular species present in the mobile phase stream. In simpler words, you can also say that it is a method used for separating any compound’s ions on the basis of their interaction with stationary (resin) and mobile (eluent) phase. The process consists of two columns named anion column and cation column that attract anions and cations, respectively. By separating these ionic species, one can measure their concentrations in the given substance.

Features of Ion Chromatography Instrument

1. Integrated apperance design, high brightness LCD full touch GUI controller

2. High degree of automation "One Key Rinse" and "One Key Maintenance" automatic maintenance function.

3. Full PEEK pump and electric injection valve.

4. All-plastic non-metallic flow path

5. Highly precise teperature control of the whole system.

6. Powerful and convenient chromatography workstation.

Technical Data of Ion Chromatography Instrument

System Parameter
Qualititative Repeatability	≤0.05%
Quantitative Repeatability	≤0.2%
Pump System
Flow Rate (Full PEEK Pump)	(0.001–12.000) mL/min
Pump Head Pressure Resistance	(0–42) MPa
Flow Rate Set Error	≤ ±0.1%
Flow Rate Stability	≤ ±0.1%
Pressure Display Resolution	0.01 MPa
Suppressor
Suppressor Type	Electrolytic self-regenerating membrane suppressor
Constant Current Range	0–500 mA, adjustable in increments of 1 mA
Column Oven
Temperature Range	Ambient +5°C to 85°C
Temperature Stability	±0.01°C
Compatibility	Compatible with 250 mm and 150 mm length columns
AS2800 Series Autosampler
Quantitative Repeatability	< 0.5% RSD (full-loop injection)
Sample Positions	48 positions / 11 positions
Wash Ports	2 ports (fine wash and coarse wash)
Operating Temperature	10–40°C
Vial Types	5mL/ 100mL
Injection Volume	10 µL – 4000 µL (depending on sample loop size)
Single Injection Cycle Time	Approx. 20s (depending on wash time and injection volume)
Injection Mode	Full-loop injection
AS3110 Series Autosampler
Sample Capacity	64/120 positions
Cooling Temperature Range	4–30°C
Repeatability	< 0.3% RSD (full-loop injection, injection volume > 5 µL)
Syringe Specifications	Standard: 500 µL; Optional: 250 µL, 1000 µL, 2500 µL
Sample Loop Specifications	Standard: 100 µL; Optional: 25 µL, 50 µL, 200 µL
Carryover (Cross Contamination)	< 0.01%

Industry Applications of IC6200 Ion Chromatography Instrument

Water Analysis

Ion chromatography with conductivity detector has found wide-scale applications for monitoring of anion concentrations such as chloride, fluoride, bromide, nitrates, nitrite, fluoride, chlorate and bromate in drinking water from different sources.

Pharmaceuticals

on chromatography has over the years matured as an analytical technique for determination of the active pharmaceutical ingredients, excipients, products of degradation and impurity profiling of formulations.
