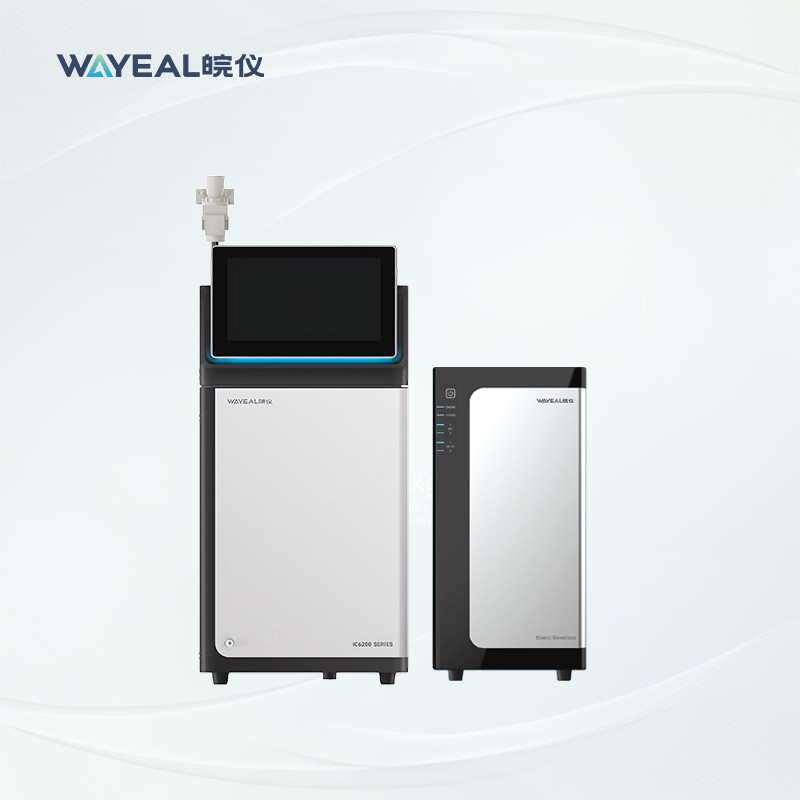

Wayeal IC Machine Ion Chromatography Instrument for Laboratory Environmental analysis
Introduction of Ion Chromatography Instrument
Ion chromatography instrument is a type of high performance liquid chromatograph, so it is also known as high performance ion chromatography (HPIC) or modern ion chromatography. IC systems can analyze particles such as anions, cations, organic salts, and proteins. They are used in environmental, manufacturing, food, pharmaceutical, and chemical industries.
Parameters of Ion Chromatography Instrument
Performance of Ion Chromatography Instrument
|
System Parameter
|
|
|
Qualititative Repeatability
|
≤0.05%
|
|
Quantitative Repeatability
|
≤0.2%
|
|

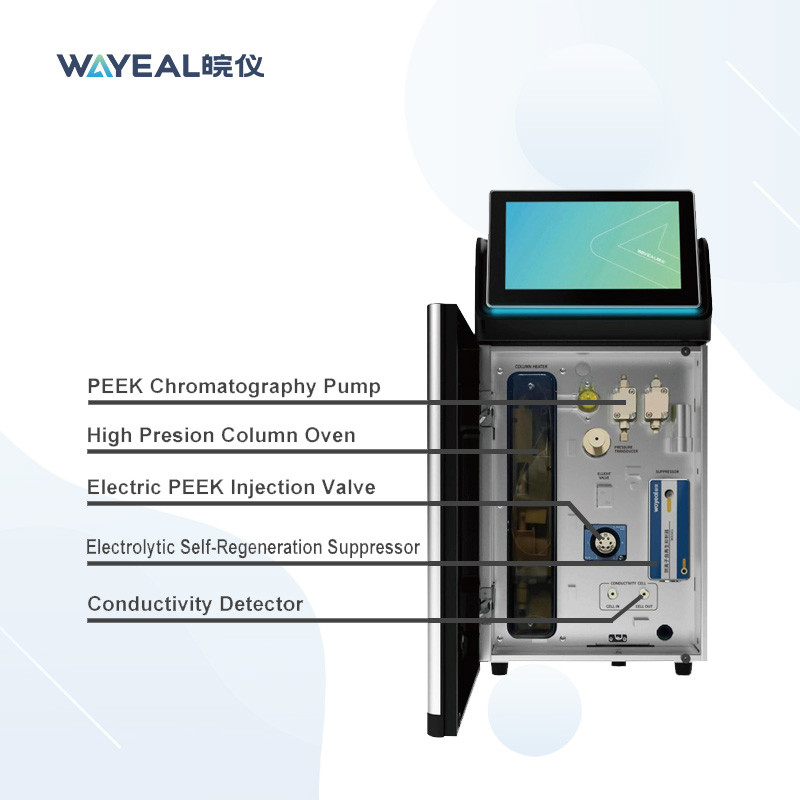

Pump System
|
|
|
Flow Rate (Full PEEK Pump)
|
(0.001–12.000) mL/min
|
|
Pump Head Pressure Resistance
|
(0–42) MPa
|
|
Flow Rate Set Error
|
≤ ±0.1%
|
|
Flow Rate Stability
|
≤ ±0.1%
|
|
Pressure Display Resolution
|
0.01 MPa
|
|
Suppressor
|
|
|
Suppressor Type
|
Electrolytic self-regenerating membrane suppressor
|
|
Constant Current Range
|
0–500 mA, adjustable in increments of 1 mA
|
|
Column Oven
|
|
|
Temperature Range
|
Ambient +5°C to 85°C
|
|
Temperature Stability
|
±0.01°C
|
|
Compatibility
|
Compatible with 250 mm and 150 mm length columns
|
|
AS2800 Series Autosampler
|
|
|
Quantitative Repeatability
|
< 0.5% RSD (full-loop injection)
|
|
Sample Positions
|
48 positions / 11 positions
|
|
Wash Ports
|
2 ports (fine wash and coarse wash)
|
|
Operating Temperature
|
10–40°C
|
|
Vial Types
|
5mL/ 100mL
|
|
Injection Volume
|
10 µL – 4000 µL (depending on sample loop size)
|
|
Single Injection Cycle Time
|
Approx. 20s (depending on wash time and injection volume)
|
|
Injection Mode
|
Full-loop injection
|
|

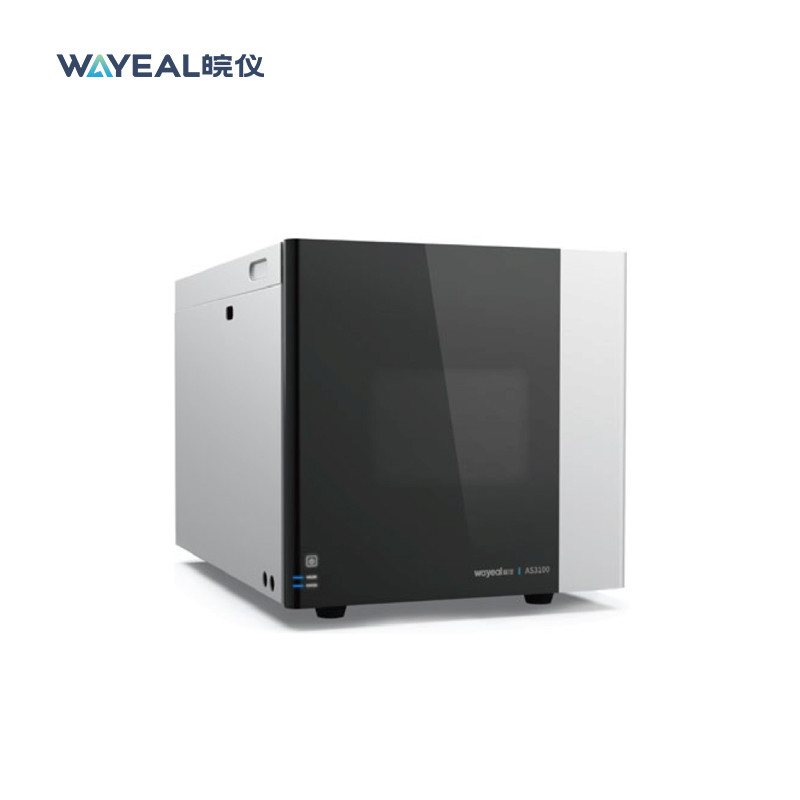

AS3110 Series Autosampler
|
|
|
Sample Capacity
|
64/120 positions
|
|
Cooling Temperature Range
|
4–30°C
|
|
Repeatability
|
< 0.3% RSD (full-loop injection, injection volume > 5 µL)
|
|
Syringe Specifications
|
Standard: 500 µL; Optional: 250 µL, 1000 µL, 2500 µL
|
|
Sample Loop Specifications
|
Standard: 100 µL; Optional: 25 µL, 50 µL, 200 µL
|
|
Carryover (Cross Contamination)
|
< 0.01%
|
1. Original imported/home-made anion columns packed with polymeric material for the detection of conventional anions and disinfectant by-products in food, pharmaceutical, environmental and water samples.
2. The refrigeration function can be upgraded to achieve precise temperature control in the range of 4-30°C, ensuring consistent results for the stability analysis of temperature sensitive samples.
3. The original factory-made electrolytic automatic regeneration membrane suppressor features high capacity, maintenance-free, low background conductance, low background noise and a stable baseline.
4. 7.0" high brightness LCD touch GUI controller, synchronised with the chromatography workstation, allows full operation of the instrument and spectrogram display etc.
5. Electrolytic self-regenerating membrane inhibition method, reagent-free design, no additional acid and alkali addition, no peristaltic pump regeneration.
Industry Application
Environment, food, medicine, agriculture, grain and oil, and chemical industry.
