Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
ISO, CE
Model Number:
IC6600
Multi-functional Ion Chromatograph Price Ion Exchange Chromatography Instrument
Introduction of Ion Chromatography Instrument

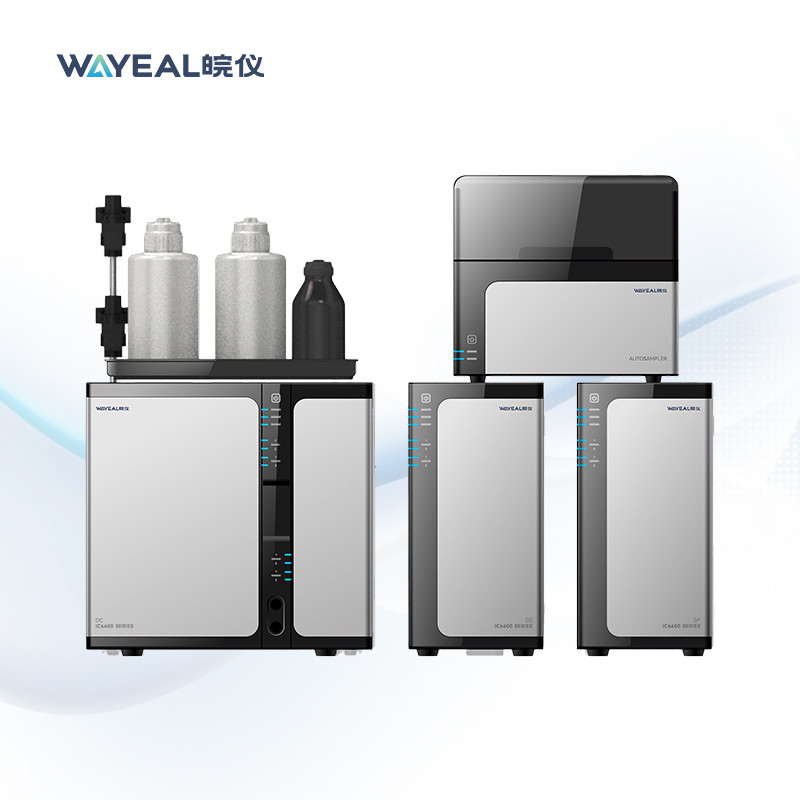

IC6600 series multi-functional ion chromatograph is a new ion chromatograph product launched by Wanyi, which is the ideal model for high efficiency, high sensitivity and high reliability ion chromatography detection.
Features of Ion Chromatography Instrument
1. Ideal model for high efficiency, high sensitivity, high reliability ion chromatography; dual system one machine realizes yin and cation simultaneously;
2. Conductance and electrochemical detectors meet the detection requirements of different substances;
3. Can realize two-dimensional ion chromatography (valve switching) and post-column chemical derivatives
4. Dual system simultaneously detection design allows customers to maximize efficiency, further shorten detection time
5. Double pump, column temperature box, modular design of the crash generator, the user can choose the required system configuration;
6. It can be equipped with high-end double pump double system detection, and can also customize single pump single system detection according to customer needs, and personalize your chromatography solution.
Parameters of Ion Chromatography Instrument
| Double System Ion Chromatogra phy Instrument with Conductivity Amperometric Detectors | |
| System Parameters | |
| Qualitative repeatability | ≤1% |
| Quantitative repeatability | ≤1% |
| Pump System | |
| Pump flow rate | (0.001～12.000)mL/min |
| Pressure Resistance | (0.001～12.000)mL/min |
| Flow rate setting error | ＜0.1% |
| Flow rate stability | ＜0.1% |
| Pressure display accuracy | 0.01Mpa |
| Pressure pulsation | ＜0.25% |
| Amperage Detector | |
| Type | Thin layer structure, automatic range |
| ve voltage range | -2.048V---2.048V |
| Drive voltage resolution | 0.001V |
| Output signal range | 50pc---200uC |
| DC mode | 1pA---74uA |
| Noise | Integral mode <30pC |
| Cell volume | ＜0.2uL |
| Min detection concentration | I-——0.001μg/mL |
| Min detection concentration | Fructose - 0.01μg/mL |
| Min detection concentration | CN-——0.0005μg/mL |
| Suppressor | |
| Constant current range | 0-500mA |
| Dead volume | 50uL |
| Suppressor volume | 170ueq/min |
| Pressure resistance | 3MPa |
| Column Oven | |
| Temperature range | Room +5°C~70°C |
| Temperature control stability | ≤0.1℃ |
| Temperature seeting error | 0.05℃ |
| Autosampler | |
| Quantitative repeatability | Full loop injection <0.5%RSD |
| Linear | >0.9995 |
| Injection positions | 48 vials |
| Washing bit | 2 bits (fine and coarse) |
| Working temperature | 10-40℃ |
| Injection volume | 10uL---4000uL |
Industry Application
Environment, food, medicine, agriculture, grain and oil, and chemical industry
