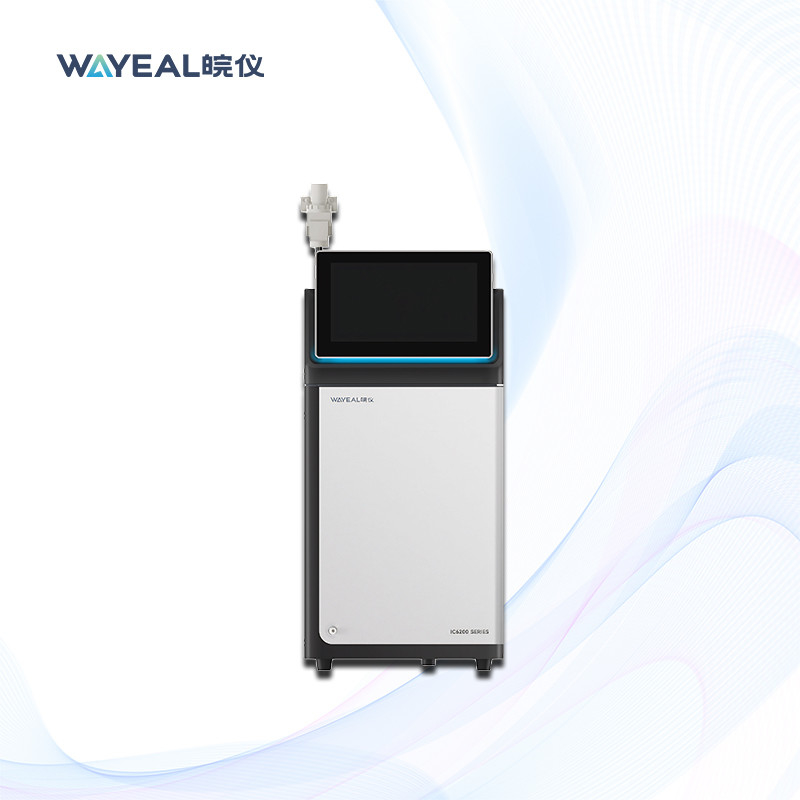

IC6200 PEEK Pump Ion Exchange Chromatography Instrument for Anions or Cations Analysis

Name: IC6200 PEEK Pump Ion Exchange Chromatography Instrument for Anions or Cations Analysis
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: IC6200
Price: 15,400.00 USD
Availability: InStock

Basic Properties

Place of Origin: Anhui, China

Brand Name: Wayeal

Certification: ISO, CE

Model Number: IC6200

Trading Properties

Minimum Order Quantity: 1

Price: Negotiation

Payment Terms: L/C, T/T

Supply Ability: 30 Pieces Per Month

ion chromatography instrument

ion chromatography machine

ion chromatography system

Specifications

Product Name:	Ion Chromatography Instrument	Qualitative Repeatability:	≤ 0.05%
Packing:	Wooden Case	Pump Material:	PEEK
Quantitative Repeatability:	≤ 0.2%	Flow Rate:	(0.001～12.000)mL/min
Pump Pressure:	(0~42) MPa	Flow Rate Stability:	≤ ±0.1%
High Light:	IC6200 hplc ion chromatography , hplc ion chromatography Machine , icp ion chromatography Machine

Product Description

IC6200 PEEK Pump Ion Exchange Chromatography Instrument for Anions or Cations Analysis

Introduction of Ion Chromatography Instrument

Ion chromatography instrument is a kind of high performance liquid chromatography, so it is also called high performance ion chromatography (HPIC) or modern ion chromatography. It is different from traditional ion exchange column chromatography mainly because that resin has high cross-linking degree and low exchange capacity, the sample volume is very small, and normally, a plunger pump is used to pump eluent for on-line automatic continuous conductivity detection of leachate.

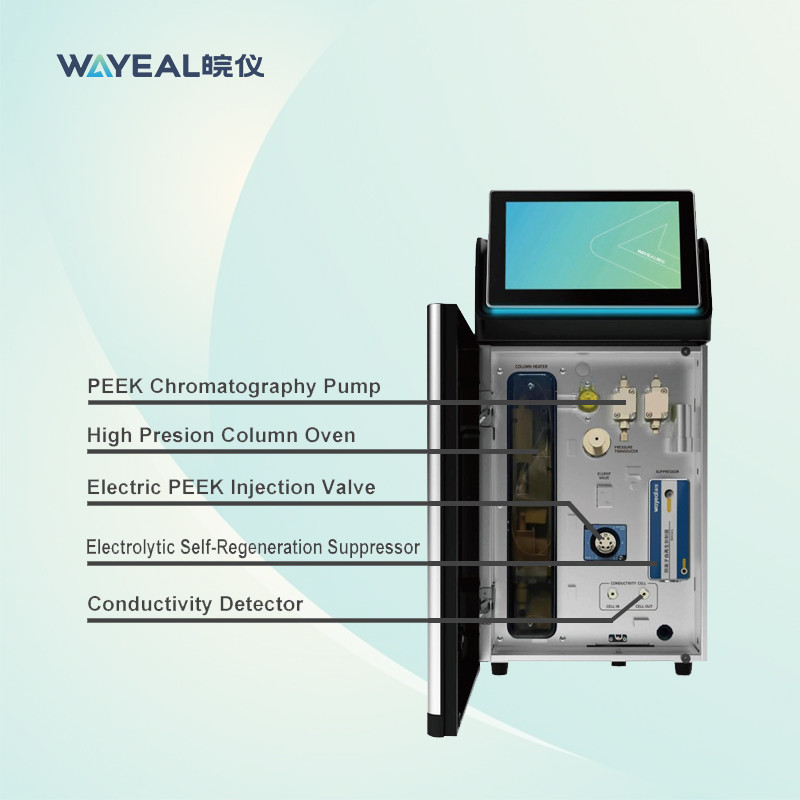

Features of Ion Chromatography Instrument

1. Intergrated design, LCD full touch GUI controller
2. High degree of automation, one key flushing, one key maintenance
3. Higher integration: support optional parts upgrade to 2D system and multi-detector coupling.
4. All-plastic non-metallic flow path.
5. Highly precise temperature control for the whole system.
6. Precision PEEK material ion chromatography pump.
7. Electrolytic self-regenerating membrane suppressor.
8. High-precision temperature-controlled conductivity detector.
9. Powerful and easy-to-use chromatography workstation.

Parameters of Ion Chromatography Instrument

System Parameter
Qualititative Repeatability	≤0.05%
Quantitative Repeatability	≤0.2%
Pump System
Flow Rate (Full PEEK Pump)	(0.001–12.000) mL/min
Pump Head Pressure Resistance	(0–42) MPa
Flow Rate Set Error	≤ ±0.1%
Flow Rate Stability	≤ ±0.1%
Pressure Display Resolution	0.01 MPa

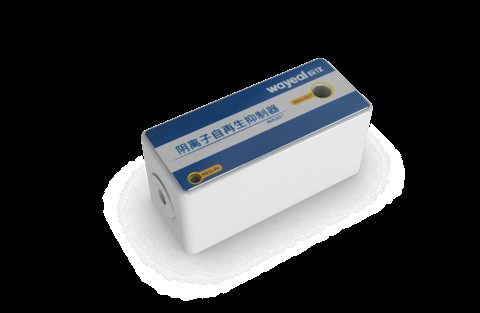

Suppressor
Suppressor Type	Electrolytic self-regenerating membrane suppressor
Constant Current Range	0–500 mA, adjustable in increments of 1 mA
Column Oven
Temperature Range	Ambient +5°C to 85°C
Temperature Stability	±0.01°C
Compatibility	Compatible with 250 mm and 150 mm length columns

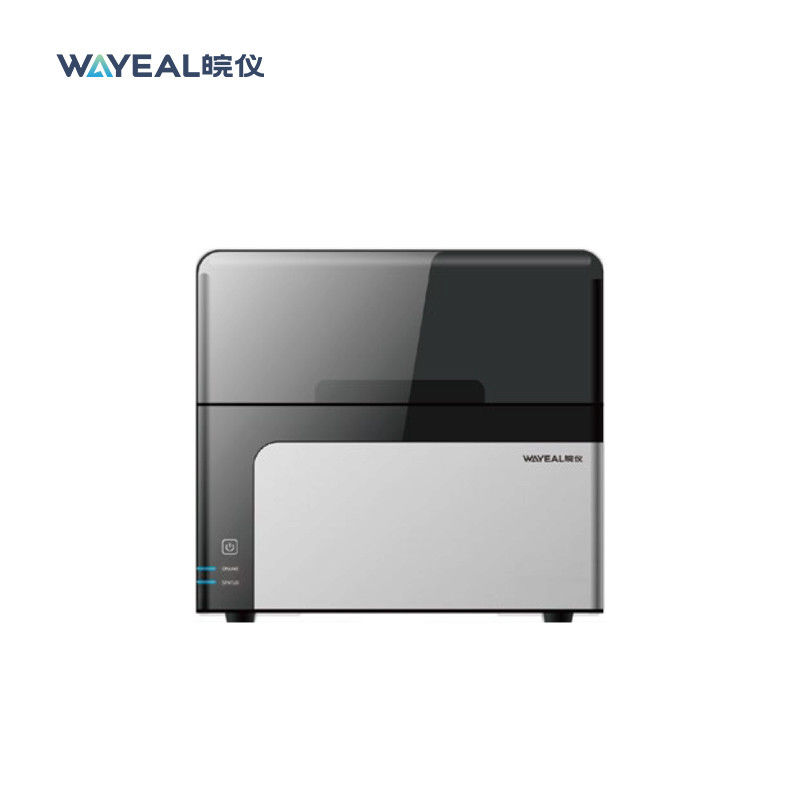

AS2800 Series Autosampler
Quantitative Repeatability	< 0.5% RSD (full-loop injection)
Sample Positions	48 positions / 11 positions
Wash Ports	2 ports (fine wash and coarse wash)
Operating Temperature	10–40°C
Vial Types	5mL/ 100mL
Injection Volume	10 µL – 4000 µL (depending on sample loop size)
Single Injection Cycle Time	Approx. 20s (depending on wash time and injection volume)
Injection Mode	Full-loop injection

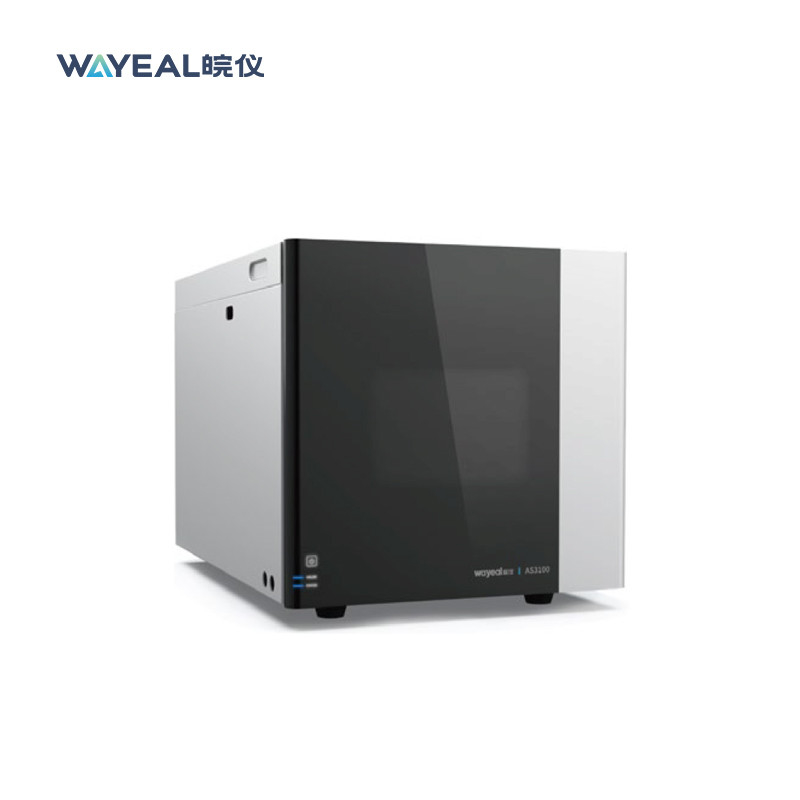

AS3110 Series Autosampler
Sample Capacity	64/120 positions
Cooling Temperature Range	4–30°C
Repeatability	< 0.3% RSD (full-loop injection, injection volume > 5 µL)
Syringe Specifications	Standard: 500 µL; Optional: 250 µL, 1000 µL, 2500 µL
Sample Loop Specifications	Standard: 100 µL; Optional: 25 µL, 50 µL, 200 µL
Carryover (Cross Contamination)	< 0.01%
