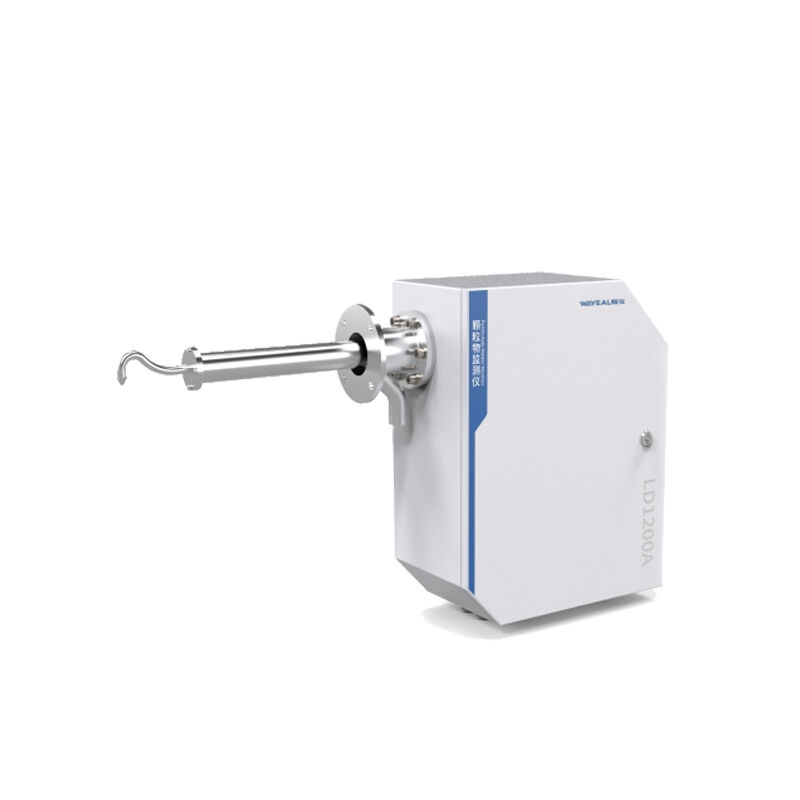

Ultra-Low Particulate Monitor with Full-Process Zero Calibration | LD1200A

Ultra-Low Particulate Monitor with Full-Process Zero Calibration | LD1200A

Product Introduction

LD1200A Ultra-Low Particulate Matter Monitor adopts an integrated high-temperature extraction system. It uses internally polished stainless steel pipes connected directly to the detector via high-temperature ball valves, ensuring no adsorption, compact size, and fast response. The detector operates based on the high-sensitivity laser forward scattering principle and incorporates a uniquely designed dark current technology. Inside the detector, high-temperature clean air at 120°C protects the optical lens, ensuring detector stability. The entire system features minimal maintenance, high detection sensitivity, easy and quick installation, and includes automatic blowback and automatic calibration, making it a truly maintenance-free online monitoring system.

Product Parameter

Product Performance

1. Sampling laser front scattering principle, ultra-high sensitivity, minimum detection limit of 0.1mg/m³.
2. The whole process of high temperature sampling and high temperature analysis and measurement, not affected by water vapor.
3. The unique patented technology of thermal conduction heating sampling rod, heating box build in a large diameter high
temperature pneumatic ball valve, to achieve power outage and lack of air automatically disconnect the gas circuit to protect the detector, and can achieve the timed blowback system maintenance-free design.
4. High-sensitivity laser front scattering detector, and the use of the inner layer of smoke outer high-temperature gas curtain to protect the lens, for zero maintenance.

Industry Application

Ultra-low particulate monitors are primarily used for monitoring particle concentration generated in industrial processes:

Thermal Power Plants
Industrial Kilns
Industrial Boilers
Waste Incineration Plants
Petrochemical Industry
Iron & Steel Metallurgy
Cement Industry.
