DOAS Environmental Continuous Emissions Monitoring System 176KG
| Product Name: | Contimuous Emissions Monitoring System | Size: | 930*730*2010mm |
| Weight: | 176KGS | Measure Method: | UV Differential Method |
| Usage: | SO2, NOX, O2 Monitor | Measurement Range: | SO2: 0-100/200 Mg/m3, NOX: 0-100/200 Mg/m3, O2: 0-25% |
| High Light: | Continuous Emissions Monitoring System DOAS,176KG Continuous Emissions Monitoring System,DOAS continuous environmental monitoring system |
||
Contimuous Emissions Monitoring System for Environmental Flue Gas Emission Detection
Product Introduction

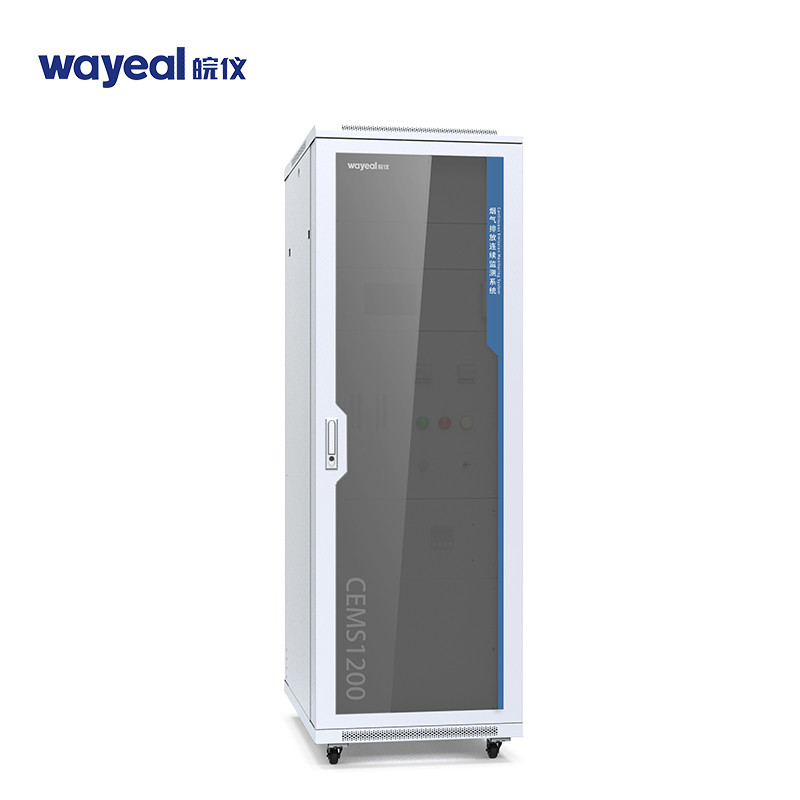

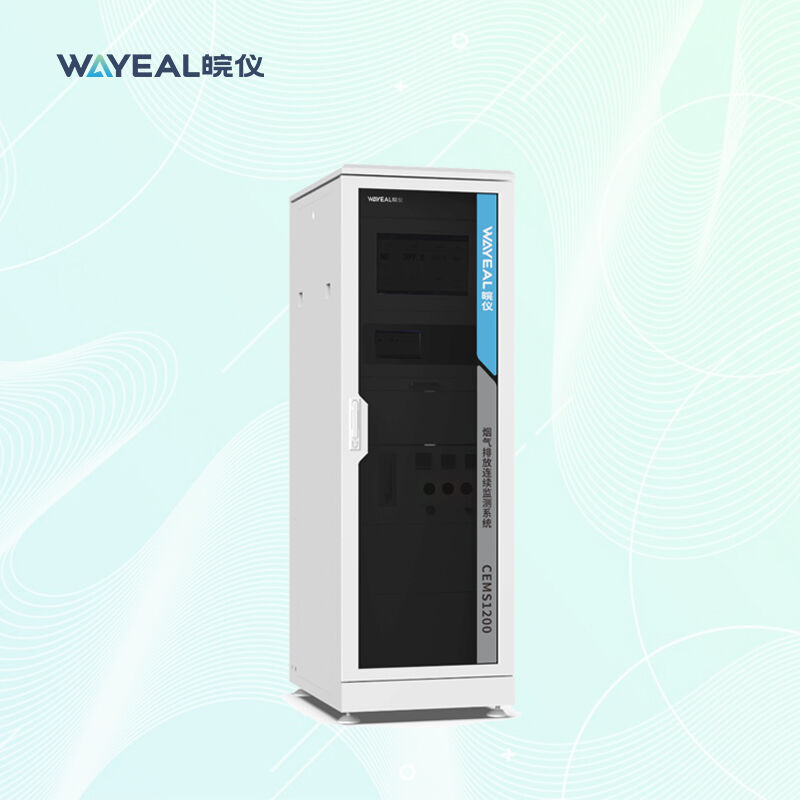

The CEMS 1200 system consists of a gaseous pollutant monitoring sub-system, a particulate matter monitoring sub-system, a flue gas parameter monitoring sub-system and a data acquisition and processing sub-system. It can continuously monitor SO, NOx, O2, CO, CO2, HCI, soot (particulate matter) concentration, flue gas flow rate, flue gas pressure, flue gas humidity and many other relevant parameters as well as statistical emission rates and total emissions.
Product Parameter
| Product Name | Contimuous Emissions Monitoring System for Environmental Flue Gas Emission Detection |
| Diamension | 930*730*2010mm |
| Weight | 175KGS |
| Measure Method | UV Differential Method |
| Nitrogen Oxide Measurement | Heat Resistance Moisture Meter |
| Contaminant Range | SO2 concentration 0 - 100/200 mg/m3
NOX concentration 0-100/200 mg/m3
O2 content 0-25%
|
| Pre-processing | Hot-wet Method |
Product Performance
1. High reliability
Gas analyser with pulsed xenon lamp light source for a 10-year service life.
High reliability due to the use of grating spectroscopy and array sensors with no moving parts.
The dust detector is of an integrated design, compact and highly reliable.
2. High measurement accuracy
The measurement of SO2 and NOx is carried out by the hot-wet method (temperature between 120°C and 200°C can be set), avoiding the inaccuracy of the measurement due to the absorption of SO2 by condensate and the corrosion of the instrument by the formation of sulphite.
SO2 and NOx gas analysis using differential absorption spectroscopy (DOAS), effectively addressing the effects of water, dust and other factors on measurement accuracy.
Industry Application
Steel plants, cement plants, chemical plants.
