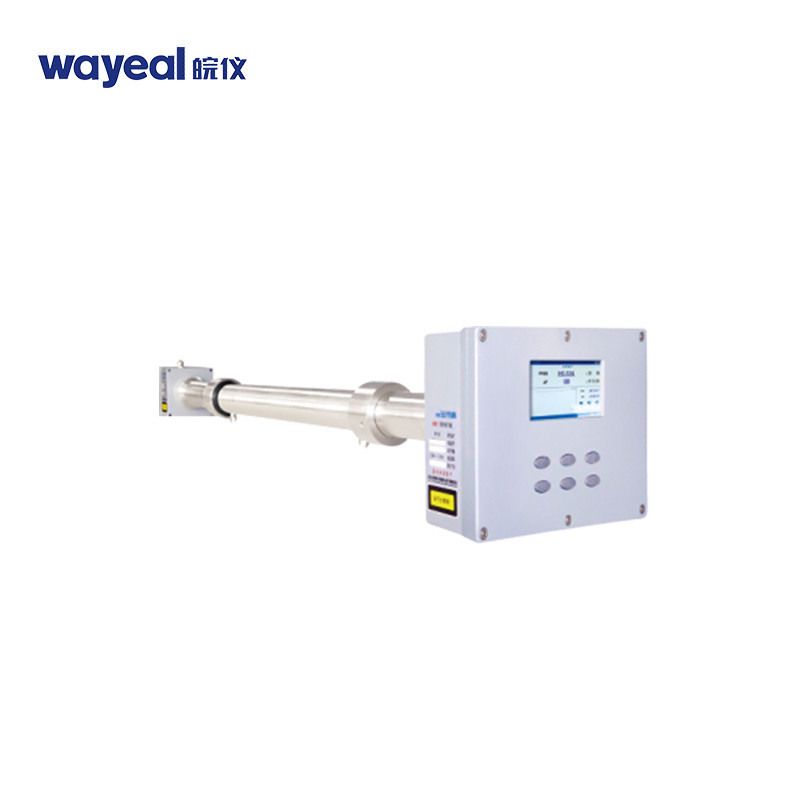

Industrial CO2 NH3 Cems Continuous Laser Emission Monitoring System Gas Analyzer

Name: Industrial CO2 NH3 Cems Continuous Laser Emission Monitoring System Gas Analyzer
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: LG1100
Price: 15,400.00 USD
Availability: InStock

Basic Properties

Place of Origin: Anhui, China

Brand Name: Wayeal

Certification: ISO, CE

Model Number: LG1100

Trading Properties

Minimum Order Quantity: 1

Price: Negotiation

Payment Terms: L/C,T/T

Supply Ability: 20 Pieces Per Month

cems analyzer

cems air pollution monitoring

cems emissions monitoring

Specifications

Product Name:	Continuous Emissions Monitoring System	Product Dimension:	16310240cm
Max working temperature:	1500℃	Measure Method:	Tunable Diode Laser Absorption Spectroscopy
Detection Item:	NH3, H2O, HCI, HF, H2S,O2, CO, CO2, CH4	Response Time:	<1s
High Light:	NH3 emission monitoring system , Cems emission monitoring system , Industrial cems emissions

Product Description

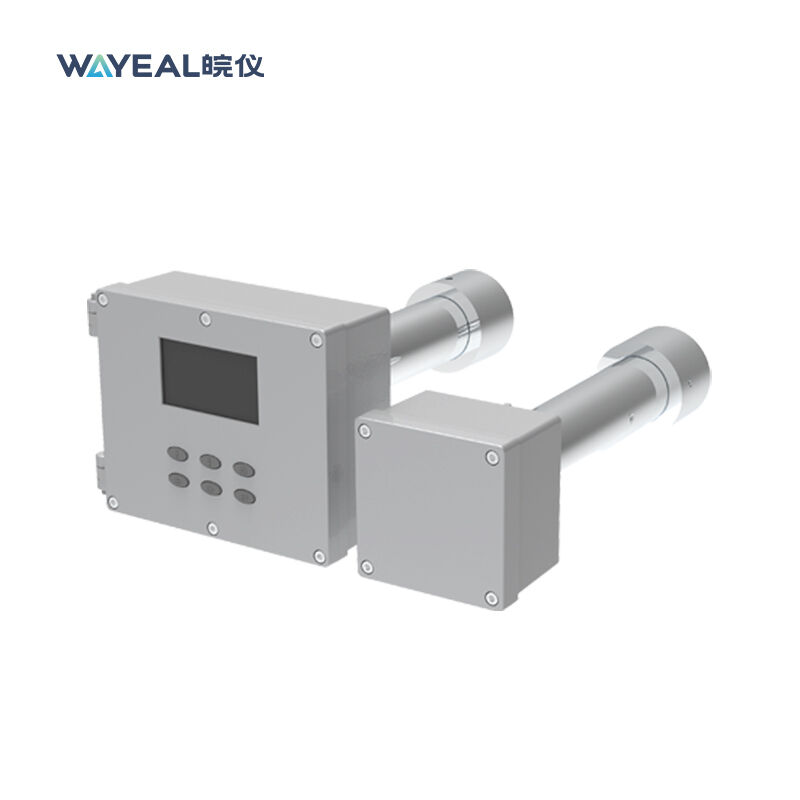

Continuous Laser Gas Analyzer for Industrial Gases and Environmental Flue Gases Detection

Product Introduction

The laser gas analyzer can measure flue gas with high temperature (1500 ℃), high pressure (3bar) and high dust (500g/m3) and can realize in-situ analysis in the work site; and the corresponding time of laser gas analyzer is very short and is a real "real-time online" analytical instrument. It can be used for CO, CO₂, NO, NO₂, CH₄, NH₃, O₂, H₂O, HCl, HF and other gases. It can provide real-time and accurate data for process monitoring, safety monitoring and pollution testing.

Product Parameter

Optical path	0.5-15m
Linear error	<1%
Response time	1s (min)
Zero drift	≤1%F.S/ 3 months
Span drift	≤1%F.S/ 3 months
Protection level	IP66
Security level of laser	Level-1 GB 7247.1-2001 (idt IEC 60825-1:1993)
Analog input	2 circuits 4-20mA
Analog output	2 circuits 4-20mA, (isolated, maximum load 500Ω)
Communication interface	RS485 (optional)
Relay output	3 circuits (relay specification: 220V, 1A)
Ambient temperature	-10-50℃
Ambient humidity	<90%
Gas temperature	<1200℃
Power supply	220 VAC
Compressed air	≥0.3MPa (nitrogen for purifying the instrument air, explosive environment or detecting oxygen)

Gas Measurement Type and Measurement Range

Gas	Detection Limit (ppm)	Measuring Range
NH3	0.1	0-1000ppm
HCL	0.1	0-1000ppm
HF	0.05	0-100ppm
H2S	3	0-30%vol
O2	100	0-100%vol
CO	0.5-30	0-3000ppm-100%vol
CO2	30	0-100%vol
H2O	50	0-70%vol
CH4	0.2	0-10%vol

Product Performance

The LG1100 laser gas analyzer is based on the advanced tunable diode laser absorption spectroscopy (TDLAS) technology, which fundamentally solves the shortcomings such as response lag, poor real-time capacity, and susceptibility to interference brought about by pretreatment, and has the following characteristics:
1. Online measurement with high accuracy;
2. High signal response speed;
3. No interference from other gas components;
4. Strong adaptability to harsh environments;
5. No cross-absorption interference with background gas.
