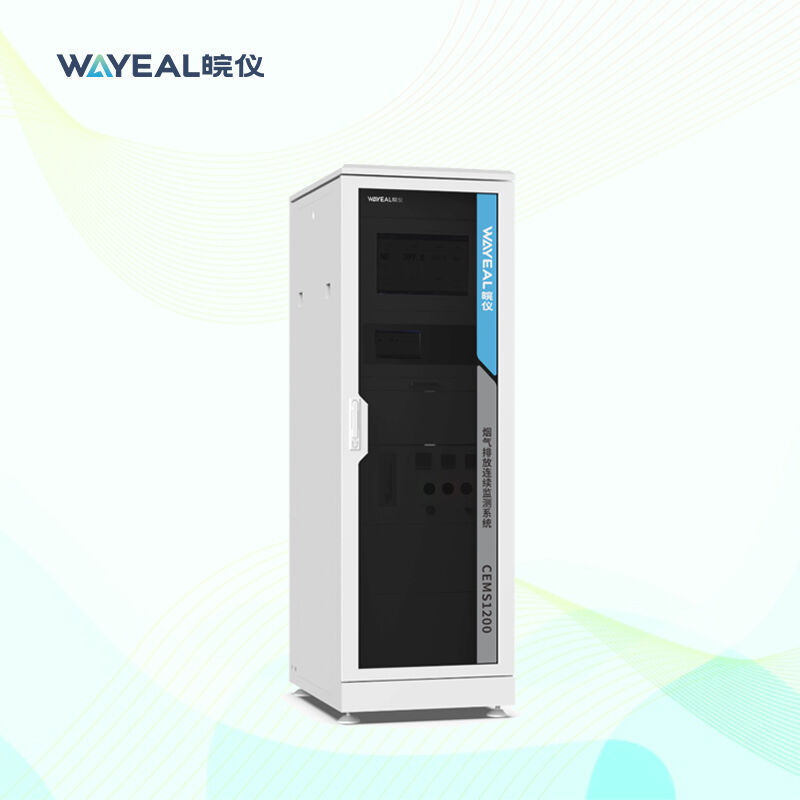

Wayeal Environmental Continuous Emissions Monitoring System Cems Instrument

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO, CE
Model Number CEMS1200
Minimum Order Quantity 1
Price Negotiation
Packaging Details One piece per wooden case
Delivery Time 15 days
Payment Terms L/C, T/T
Supply Ability 20 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measurement Range 0-100mg/m3 Size 930×730×2010mm
Weight 175KGS Detector Gas SO2, NOX, O2
Product Name Continuous Monitoring System For Flue Gas Emission Packing Wooden Case Or Customized
High Light

Environmental Continuous Emissions Monitoring System

,

Wayeal Continuous Emissions Monitoring System

,

Environmental cems instrument

Leave a Message
Product Description

Environmental Monitoring System Continuous Monitoring System for Flue Gas Emission



Product Introduction



The complete set of continuous flue gas emission monitoring system launched by Wayeal not only can continuously monitor SO2, NOX, O2, soot concentration, flue gas temperature, pressure, flow rate, humidity and many other related parameters but also can count the emission rate and the total amount of emissions so that the data can be effectively managed.



Product Parameter



Environmental Monitoring System Continuous Monitoring System for Flue Gas Emission
Pretreatment Heat and Wet Method
Nitrogen Oxide Measurement Conversion Furnace
Pollutant Range

SO2 0-100/200mg/m3

NOX 0-100/200mg/m3

O2   0-25%

Humidity Meter Measurement Heat Resistance Method Humidity Meter
Flowmeter Measurement Pitot Tube Flowmeter
Oxygen Content Zirconia



Working Principle



Gaseous pollutant monitoring uses UV differential method to measure the flue gas SO2 , NOX content; the O2 content is measured by electrochemical method or zirconium oxide. The flue gas temperature is measured by a temperature sensor, the flue gas pressure is measured by a pressure sensor, the flue gas flow rate is measured by a Pitot tube, and the flue gas humidity is measured by a high-temperature capacitive humidity sensor. And all the measurement signals are sent to the data acquisition and processing system.



Industry Application



Thermal power plant, steel plants, cement plants, chemical plants, etc.
