220V Continuous Emission Cems Monitoring System For Particle Concentrations

Continuous Emission Monitoring System of Particulate Matter Concentrations Measurement

Product Introduction

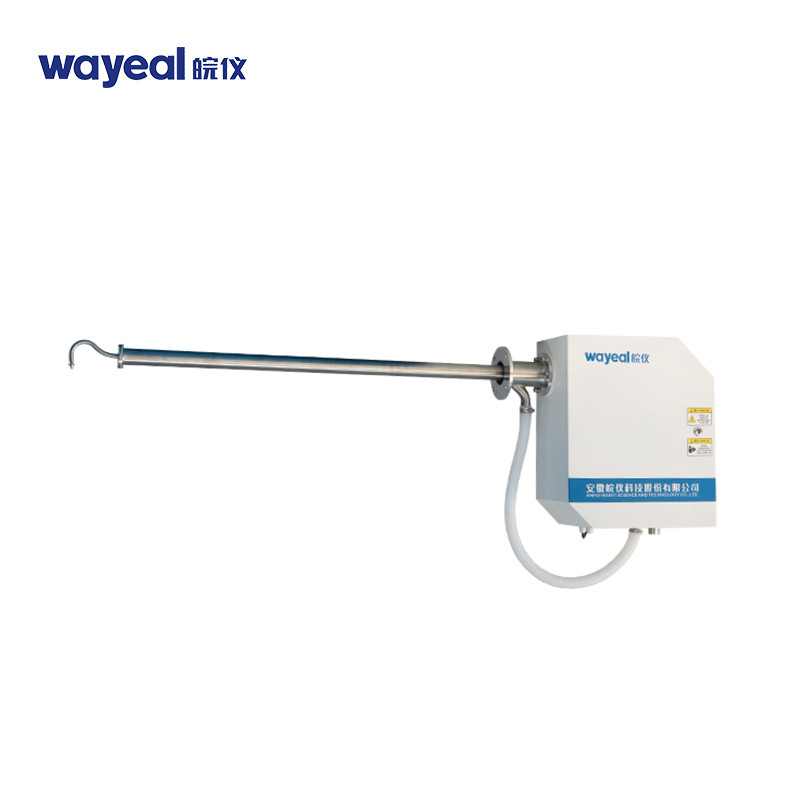

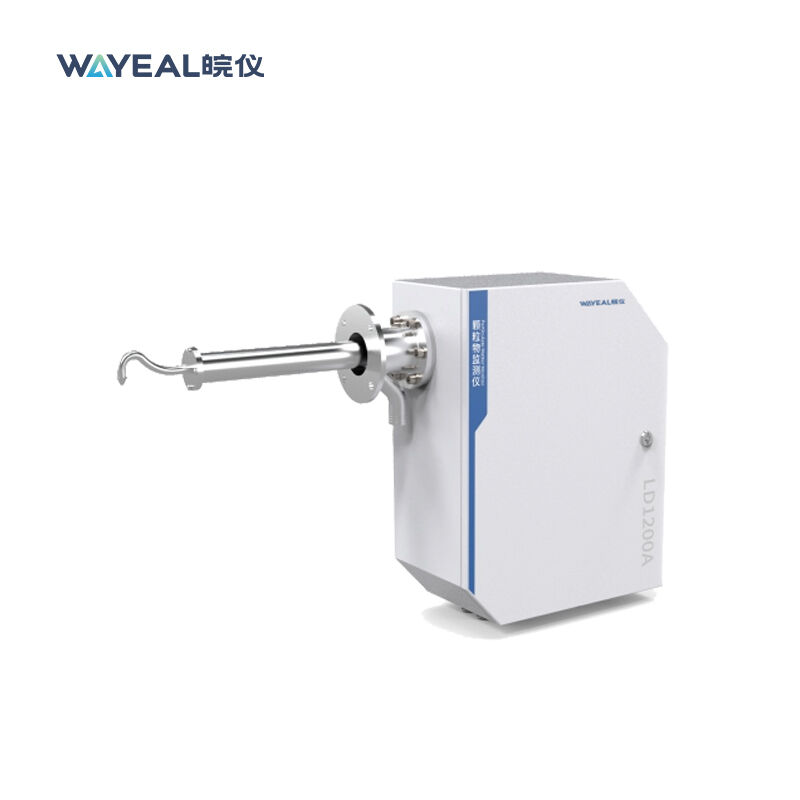

The LD1200A system is a highly sensitive particulate monitor for the continuous monitoring of particulate matter concentrations in wet flue gases. The complete system has a simple structure, a wide dynamic range, strong real-time performance, flexible networking and low operating costs. At the same time, the system adopts a modular structure, which is easy to combine and can be flexibly and optimally configured according to the specific working parameters and technical requirements of the site, fully meeting the user's requirements and ensuring the best cost performance of the system.

Product Parameter

Product Performance

1. High temperature sampling and high temperature analysis and measurement, not affected by water vapour.

2. Thermal conduction heated sampling rod and built-in large diameter high temperature pneumatic ball valve to achieve automatic disconnection of the gas circuit to protect the detector in the event of a power failure and to achieve a maintenance-free system design with timed blowback.

3. The system's full process zero calibration effectively eliminates data distortion caused by lens contamination and ensures data reliability.

4. Built-in calibrator, no moving parts, easy and fast, greatly improves reliability.

Industry Application

It is mainly used for monitoring emissions from stationary sources such as thermal power plants, industrial boilers and kilns, waste incineration plants, petrochemical industries, iron and steel, cement industries and other production processes that produce polluting gases.
