Introduction of Helium Leak Detector:
Helium leak testing is an advanced and highly effective method for detecting and quantifying leaks in sealed or pressurized components. Wayeal, a professional helium leak detector manufacturer in vacuum technology, offers state-of-the-art solutions for helium leak testing, providing numerous positive benefits to industries requiring precise and reliable leak detection.
Technical Parameters of Helium Leak Detector:
|

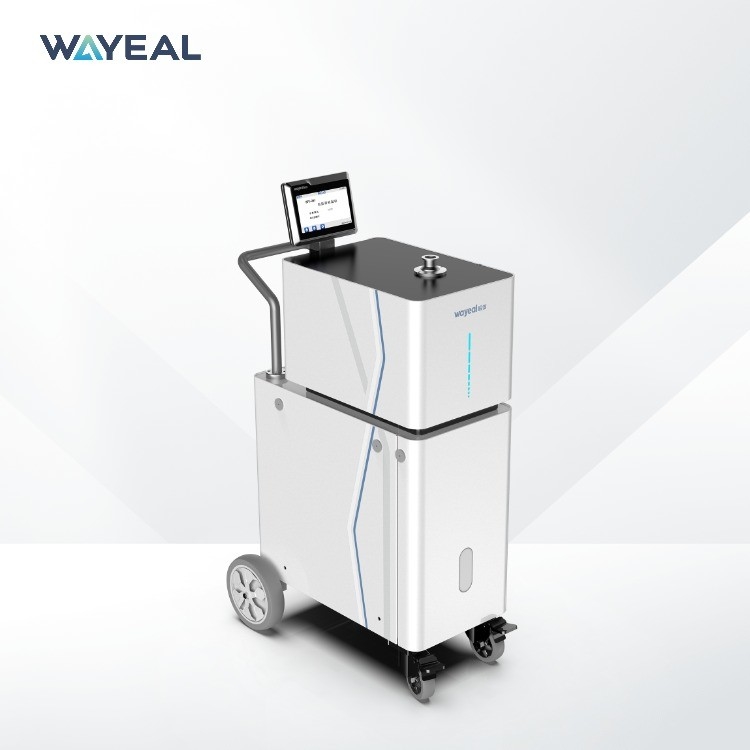

LAN Communication Interface Vaccum Helium Leak Detector Machine 220V
|
|
Product Name
|
Helium Leak Detector
|
| Detection Method |
Helium Mass Spectrometer |
| Leak Detection Port |
DN25KF |
| Leak Rate Display |
Numbers, Bar Charts, Graphs |
| Response Time(s) |
<1s |
| User Interface |
7inch Color Touch Screen |
| Operating temperature |
0~40°C |
| Max Allowable Leak Detection Pressure (Pa) |
1800 |
| Communication Interface |
RS232/485, LAN |
| Detectable Quality |
2, 3, 4 (H2, He-3, He-4) |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode |
5.0*10 -13 Pa.m3/s |
| Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode |
2.5*10-9 Pa.m3/s |
| Startup Time (min) |
≤2 |
| Diamension |
475*714*1168mm |
| Power Supply |
AC220V, 50Hz/60Hz |
| Language |
Chinese/English |
Applications of Helium Leak Detector:
The SFJ-16C is ideal for a range of occasions and scenarios, including but not limited to:
1. Industrial Manufacturing - The SFJ-16C can be used to detect leaks in pipelines, valves, tanks, and other components used in various industries such as petrochemicals, pharmaceuticals, and manufacturing.
2. Automotive Industry - The SFJ-16C can be used to detect leaks in engines, transmissions, radiators, and air conditioning systems of vehicles, ensuring the safety and reliability of the vehicles.
3. Aerospace Industry - The SFJ-16C is used to detect leaks in fuel tanks, hydraulic systems, and air conditioning systems in airplanes and spacecraft, ensuring the safety and reliability of the aircraft.
The SFJ-16C Helium Mass Spectrometer Leak Detector is an essential tool for businesses and industries that require accurate and efficient leak detection. It is a high-quality product that delivers reliable results every time.
Methods of Helium Leak Detection
