24V Modular Vacuum gas Helium Leak Detector Mass Spectrum At Pump

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-16M
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Wayeal Modular Vacuum Helium Mass Spectrum Gas Leak Detector At Pump Voltage DC24V
Operation Temperature 0-40°C Minimum Detectable Leakage Rate 1.0×10-8
Response Time(s) <1 Startup Time(min) ≤95s
High Light

24V Helium Leak Detector

,

Modular Vacuum Gas Helium Leak Detector

,

Mass Spectrum Helium Leak Detector

Leave a Message
Product Description

Wayeal Modular Vacuum Helium Mass Spectrum Gas Leak Detector at Pump





Introduction of Helium Leak Detector



The helium mass spectrometer leak detector is an instrument for the rapid localisation and quantitative measurement of leaks in sealed containers. Compared to bubble identification, pressure decay and halogen leak detection methods, helium mass spectrometry offers high detection sensitivity, speed and a wide range of applications. In addition, the helium mass spectrometer selects the non-toxic, non-destructive and lightweight inert gas helium as the exploratory gas, making it safe and reliable.





Parameters of Helium Leak Detector



SFJ-16M Helium Leak Detector















Performance Indicators








Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode

Vacuum Mode (ULTRA):5.0×10-13 (helium pumping speed >5 l/s)
Vacuum mode (FINE):1.0×10-12 (helium pumping speed 2.5 L /s)

Minimum detectable leak rate
(Pa·m3/s)/ Sniffer mode

1.0×10-8

Response time(s)

<1

Startup time(min)

≤95s

Leakage detection range
(Pa·m3/s)

5.0×10-13~1.0×10-3

Leakage rate display range
(Pa·m3/s)

1.0×10-13~1.0×10-3

Maximum allowable leak detection pressure(Pa)

1500

Detectable quality

2,3,4(H2 , He3, He4)





















Basic Configuration












Man-machine interface

5 "color LCD Touch Screen

Ion source

2pcs, iridium coated yttrium oxide, automatic switching

I/O Input/output interface

Eight inputs and eight outputs

Communication interface

RS232/485,LAN

MES interface

Standard

Physical size of instrument
(W)×(D)×(H),mm

350 * 255 * 300mm

Specifications of leak detection port

DN16 KF/2pcs

Power Supply

DC24V

Operating temperature

0-40ºC

Power

240W

Display language

Both Chinese and English

Leakage rate display

Figure, bar chart, curve chart



Features of Helium Leak Detector



1. Compact modular design, which is convenient for users to customize and integrate into the leak detection system;
2. German made molecular pump, double iridium band ion source which has strong antioxidant capacity;
3. Realize the diversity of communication through various analog and digital interfaces;
4. Short starting time, fast signal response and clearing speed;
5. High reliable leak detection efficiency;
6. Intelligent fault prompt and alarm function.





Applications of Helium Leak Detector



New energy industry: Lithium battery cover, water-cooled version, 3C, hydrogen energy
Semiconductor industry: Chip manufacturing, vacuum machines, connectors, filters, photovoltaics
Refrigeration industry: Evaporators, condensers, air conditioning ducts, compressors, four-way valves

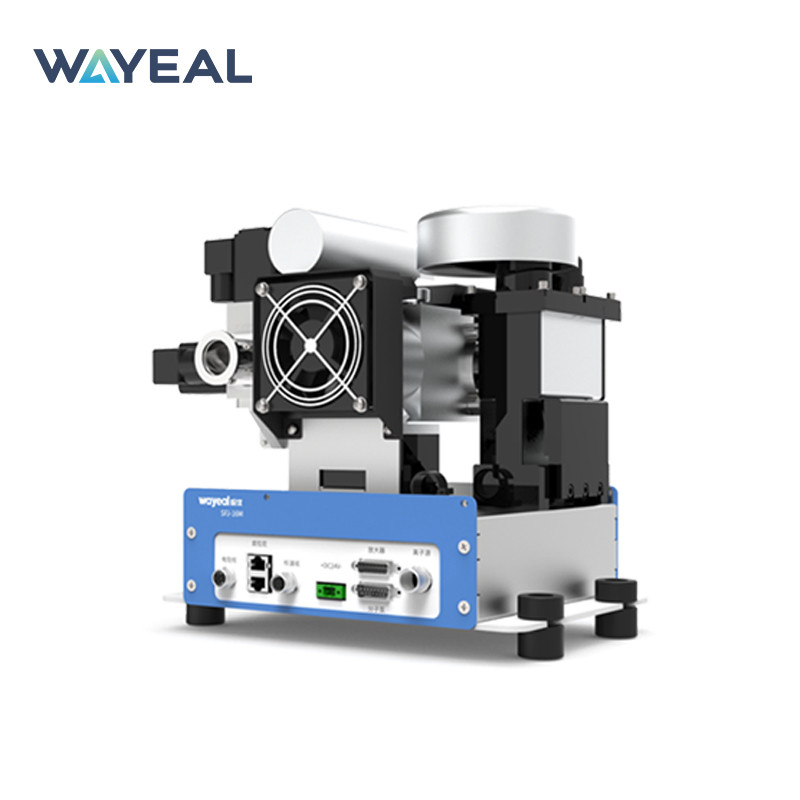

24V Modular Vacuum gas Helium Leak Detector Mass Spectrum At Pump 0
