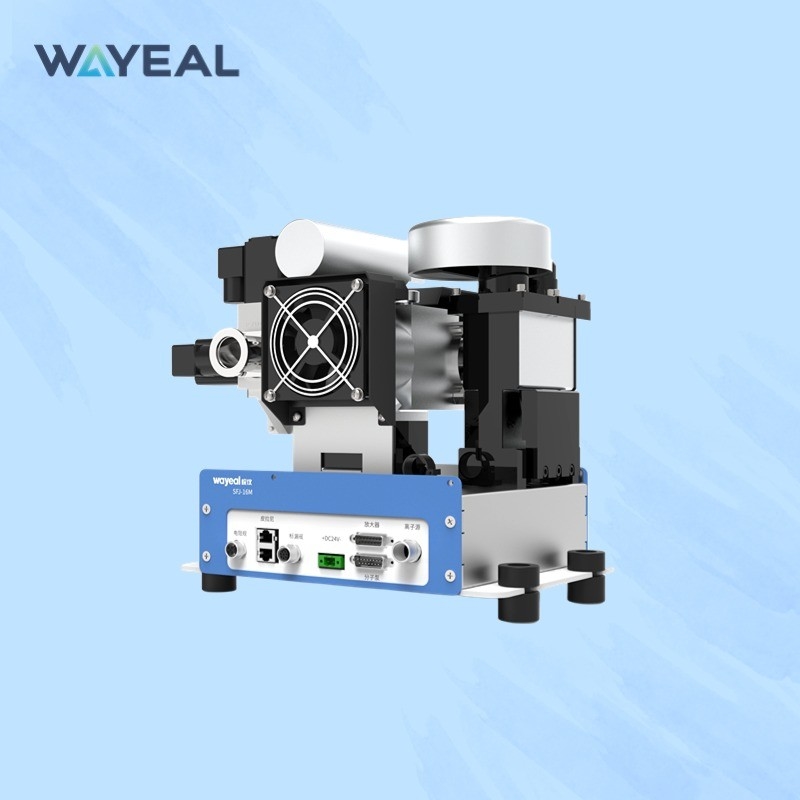

Vacuum Helium Leak Testing Machine Mass Spectrum Gas Detector 240W

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-16M
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 20 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Modular Helium Mass Spectrometer Leak Detector Power 240W
Detection Range 5.0*10-12~1.0*10-3 Pa·m3/s Detection Accuracy 1.0*10-12~1.0*10-3 Pa·m3/s
Pakaging Wooden Case Or Customized OEM Accepted
High Light

Vacuum helium leak testing machine

,

240W helium leak testing machine

,

240W helium gas detector

Leave a Message
Product Description

Vacuum He Leak Detector Helium Mass Spectrum Leak Detector at Pump





Introduction of Helium Leak Detector



The helium mass spectrometer leak detector adopts modular structure design, which is easy for system integration and widely used in various automated assembly lines.





Product Parameters



SFJ-16M Helium Leak Detector















Performance Indicators








Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode

Vacuum Mode (ULTRA):5.0×10-13 (helium pumping speed >5 l/s)
Vacuum mode (FINE):1.0×10-12 (helium pumping speed 2.5 L /s)

Minimum detectable leak rate
(Pa·m3/s)/ Suction gun mode

5.0×10-8

Response time(s)

<1

Startup time(min)

≤95s

Leakage detection range
(Pa·m3/s)

5.0×10-13~1.0×10-3 Pa·m3/s

Leakage rate display range
(Pa·m3/s)

1.0×10-13~1.0×10-3 Pa·m3/s

Maximum allowable leak detection pressure(Pa)

1500

Detectable quality

2,3,4(H2 , He3, He4)





















Basic Configuration












Man-machine interface

5 "color LCD Touch Screen

Ion source

2pcs, iridium coated yttrium oxide, automatic switching

I/O INPUT/output interface

Eight inputs and eight outputs

Communication interface

RS232/485,LAN

MES interface

Standard

Physical size of instrument
(W)×(D)×(H),mm

592 * 498 * 370mm

Specifications of leak detection port

DN16 KF/2pcs

Power Supply

DC24V

Operating temperature

0-40ºC

Power

240W

Display language

Both Chinese and English

Leakage rate display

Figure, bar chart, curve chart



Performance of Helium Leak Detector



1. Original imported molecular pump
2. Double iridium with ion source
3. Clean gas circuit system
4. Wireless remote control

5. One-click automatic clearing of helium background;
6. Multiple leak detection modes: coarse detection, fine inspection, ultra-fine inspection and sniffing mode.



Application of Helium Leak Detector



Scientific research
New energy battery
Aerospace
Automobile refrigeration
Analytical instruments
Power plants
Nuclear industry
Pressure vessels
Precision machining

Vacuum Helium Leak Testing Machine Mass Spectrum Gas Detector 240W 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

Vacuum Helium Leak Testing Machine Mass Spectrum Gas Detector 240W 1

Sniffer Method

Vacuum Helium Leak Testing Machine Mass Spectrum Gas Detector 240W 2Helium Hood Method



Vacuum Helium Leak Testing Machine Mass Spectrum Gas Detector 240W 3







Vacuum Helium Leak Testing Machine Mass Spectrum Gas Detector 240W 4Vacuum Helium Leak Testing Machine Mass Spectrum Gas Detector 240W 5
