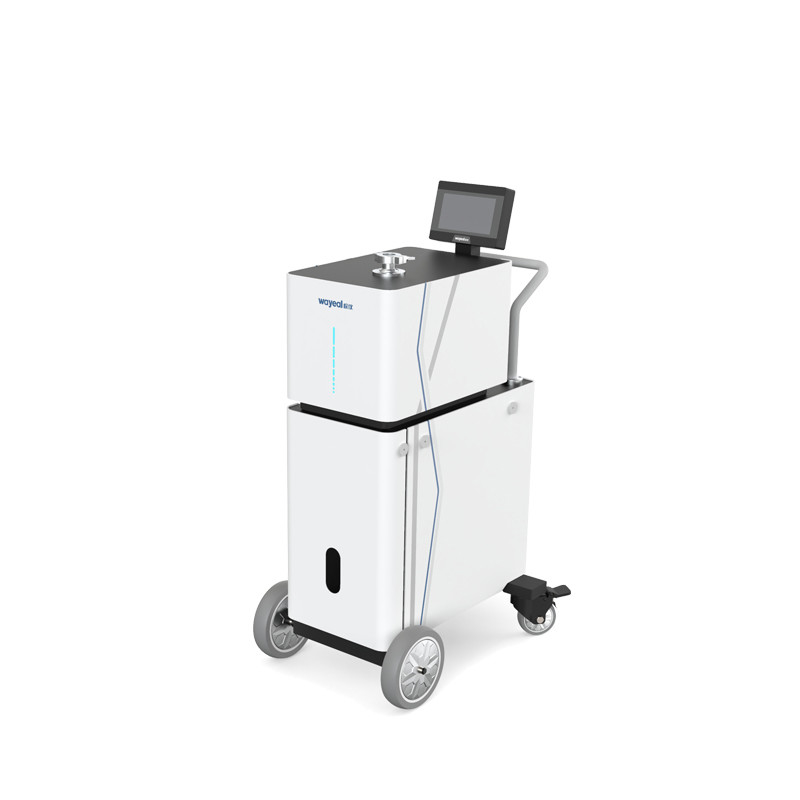

Wayeal Helium Leak Tester Helium Mass Spectrometer Leak Detector Machine

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-16D
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 200 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Mass Spectrometer Leak Detector Working Power 220V, 50Hz/60Hz
Overall Size 755*467*1180mm Detectable Quality 2,3,4(H2 , He3, He4)
Pakage Box And Customized OEM Accepted
High Light

helium leak tester Mass Spectrometer

,

Wayeal helium leak tester

,

Wayeal gas chromatograph mass spectrometer

Leave a Message
Product Description

Helium Mass Spectrometer Leak Detector Machine for Semiconductor Electronics Industry





Introduction of Helium Leak Detector



Helium mass spectrometry leak detector is an instrument for rapid localization and quantitative measurement of leaks in sealed containers. The helium mass spectrometry leak detection method with the characteristics of high detection sensitivity, high speed and a wide range of applications.



Parameters of Helium Leak Detector



Wayeal Helium Leak Tester Helium Mass Spectrometer Leak Detector Machine

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10 -9 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 5.0*10-13 Pa.m3/s
Startup Time (min) ≤1.58
Backing Pumps Scroll Vacuum Pump
Diamension 755*467*1180mm
Power Supply 220V, 50Hz/60Hz
Language Chinese/English



Features of Helium Leak Detector



1. Self-protection functions prevents the background from being polluted;
2. Automatic evacuation pressure and time setting, high leak detection efficiency;
3. Fault prompt and alarm function;
4. Wireless remote-control function (optional);





Applications of Helium Leak Detector



Electricity, Refrigeration, Lithium batteryMedical
