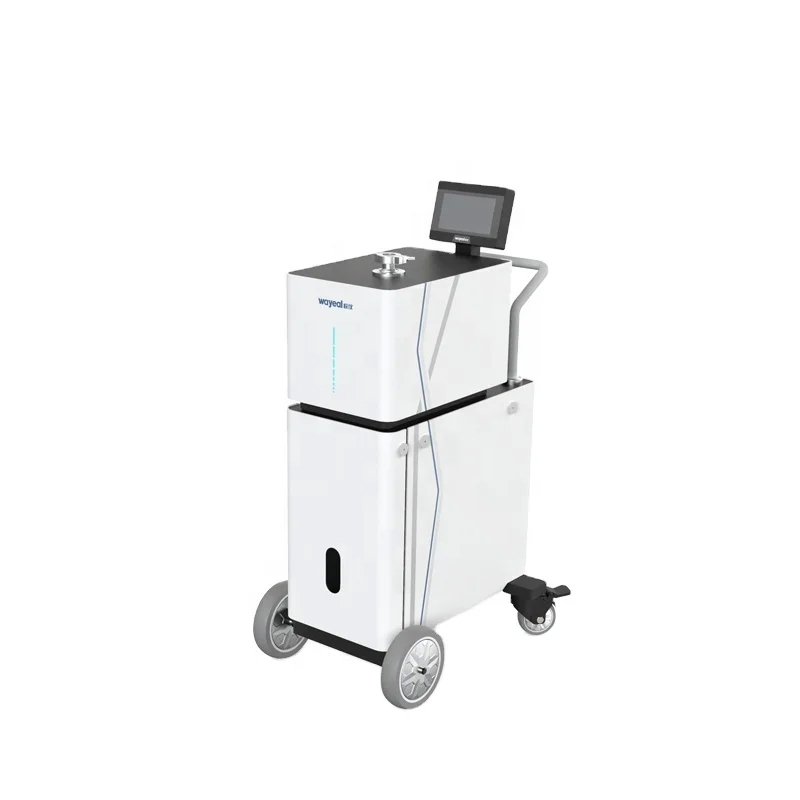

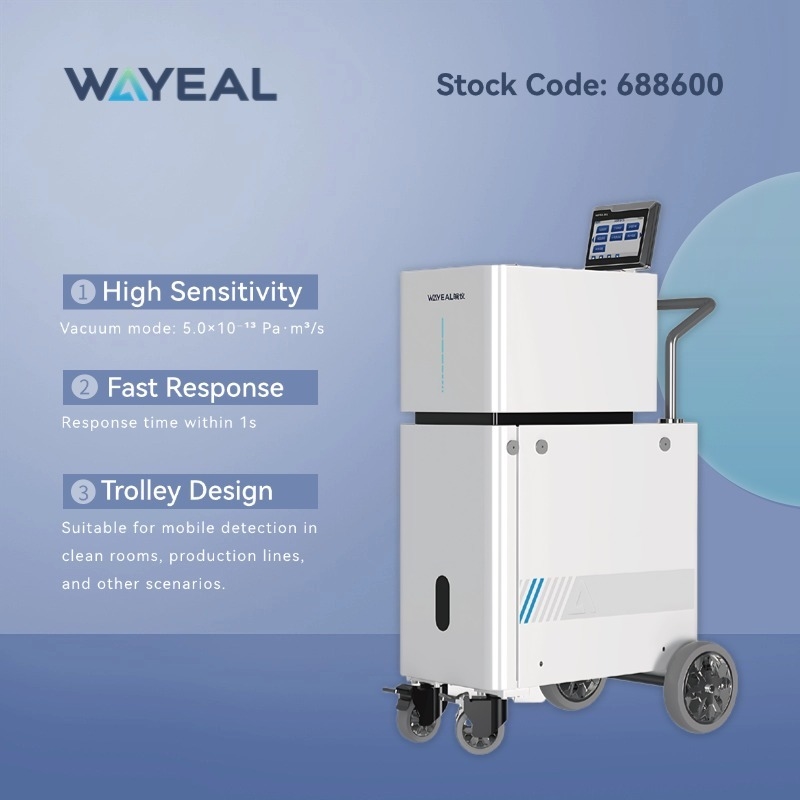

Mini Leak Detection Rate 5*10-13Pa.m3/s Helium Leak Detector With 7 Inch Touchscreen

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-16C
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T,VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Max Allowable Leak Detection Pressure (Pa): 1800Pa Product Name: Helium Leak Detector
User Interface: 7inch Color Touch Screen Communication Interface: RS232/485, LAN
Operating temperature: 0~40°C Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode: 5*10-13 Pa.m3/s
MES Interface: Standard Detectable Quality: 2, 3, 4 (H2, He3, He4)
High Light:

High Sensitivity Helium Leak Detector

,

Mini Helium Leak Detector

,

7inch Touchscreen Helium Leak Detector
Product Description

Technical Specifications of SFJ-16C Helium Leak Detector

Product Name Helium Leak Detector SFJ-16C
Diamension 755*467*1180mm
Operating temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4)
User Interface 7inch Color Touch Screen
Detection Method Helium Leak Detection
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Communication Interface RS232/485, USB*2
Max Allowable Leak Detection Pressure (Pa) 1800
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Backing Pump

Rotary Vane Vacuum Pump
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa·m3/s
Start Time 2min
Leak Detection Port DN25KF
Power AC220V, 50Hz/60Hz
Language Chinese/English

If you're looking for a reliable helium leak detection supplier, Wayeal's SFJ-231 Helium Leak Detector is the perfect solution to meet your needs. The SFJ-231 Helium Leak Detector is ideal for vacuum detection and leak detection in various industries including electronics, refrigeration, chemical engineering, and aerospace. It is capable of detecting 2, 3, and 4 (H2, He3, He4) detectable qualities with a fast start time of ≤1.58min.
