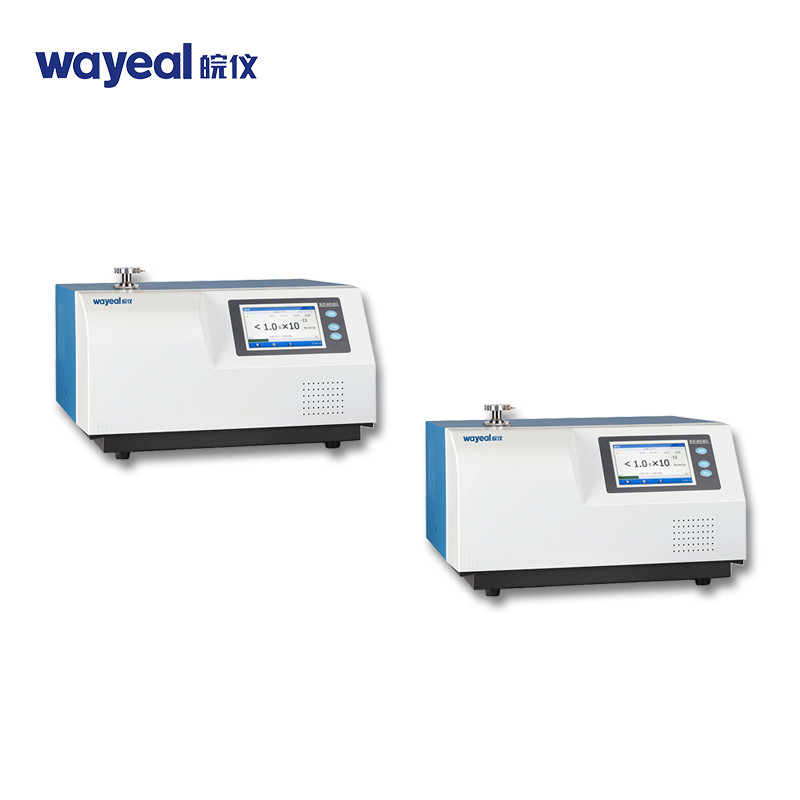

Wayeal Gas Helium Sniffer Leak Detector Mass Spectrometry Instrument For Industrial Refrigeration

Place of Origin Anhui, China
Brand Name Wayeal
Certification ISO90001, CE
Model Number SFJ-261
Minimum Order Quantity 1 Piece
Price Negotiation
Packaging Details 1 Piece Per Wooden Case
Delivery Time 15 Days
Payment Terms L/C, T/T, Western Union
Supply Ability 200 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 592*498*370mm Minimum Detectable Leak Rate (Pa·m3/s)/ Vacuum Mode 5.0×10-13
Minimum Detectable Leak Rate (Pa·m3/s)/ Suction Gun Mode 5.0×10-9 Leakage Detection Range (Pa·m3/s) 5.0×10-13~1.0×10-3
Application New Energy Industry Product Name Helium Leak Detector
High Light

Wayeal Gas Helium Sniffer Leak Detector

,

Sniffer Leak Detector For Industrial Refrigeration

Leave a Message
Product Description

Gas Detection for Industrial Refrigeration Vacuum Helium Leak Detector for Sale





Introduction of Helium Leak Detector



The helium mass spectrometer leak detector is an instrument for rapid localization and quantitative measurement of leaks in sealed containers. It can detect helium or hydrogen quickly and accurately by vacuum helium injection method, suction lance method, helium hood method, back pressure method, etc. It is suitable for industrial testing in various demanding and harsh environments.





Product Parameters



SFJ-261 Helium Leak Detector















Performance Indicators








Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode

5.0×10-13

Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode

5.0×10-9

Response time(s)

<1

Startup time(min)

≤2

Leakage detection range
(Pa·m3/s)

5.0×10-13~1.0×10-3

Leakage rate display range
(Pa·m3/s)

1.0×10-13~1.0×10-3

Maximum allowable leak detection pressure(Pa)

1500

Detectable quality

2,3,4(H2 , He3, He4)





















Basic Configuration












Man-machine interface

7 "color LCD Touch Screen

Ion source

2pcs, iridium coated yttrium oxide, automatic switching

I/O Input/output interface

Eight inputs and eight outputs

Communication interface

RS232/485,USB*2

MES interface

Standard

Physical size of instrument
(W)×(D)×(H),mm

592 * 498 * 370mm

Specifications of leak detection port

DN25 KF

Power Supply

AC220V,50HZ/60HZ

Operating temperature

0-40ºC

Power

1000W

Display language

Both Chinese and English

Leakage rate display

Figure, bar chart, curve chart





Features of Helium Leak Detectcor

1. Original imported molecular pump
2. Multiple leak detection modes: coarse detection, fine inspection, ultra-fine inspection and sniffing mode.
3. Double iridium with ion source
4. Automatic evacuation pressure and time setting, high leak detection efficiency
5. Fault prompt and alarm function
6. Wireless remote-control function (optional)
