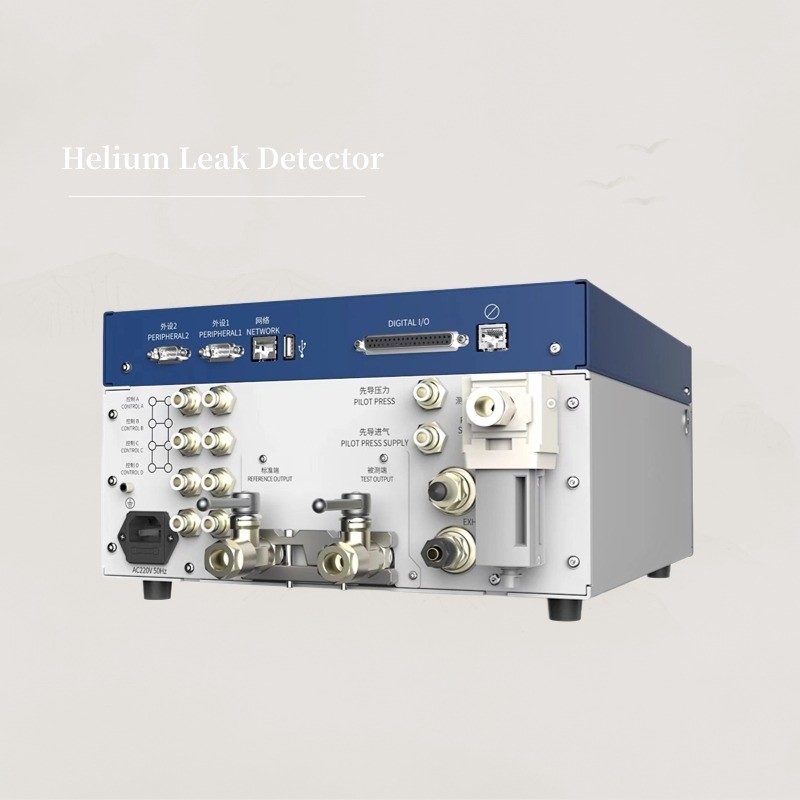

Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number LC103V5 LC103V6
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector Sensor Error ±3%F.S.(optional)
Parameter Program Number 64 Groups (1~64) Power Supply AC220V±10%, 50Hz
Weight 16KG Test Beat Setting 0 ~999 Seconds, Test Time 1800 Second
High Light

Mass Spectrometer Helium Leak Detector

,

Pressurized Systems Helium Leak Detector

,

Airtightness Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



If you are working with systems that require leak-tightness, you need a reliable method to detect and locate small leaks. Helium leak detection is a widely used technique that can help you achieve that. Helium leak detector works by introducing helium gas into a sealed container or system. Once helium is introduced into the system, a helium mass spectrometer is used to detect the presence of helium in the surrounding area. The mass spectrometer is a highly sensitive instrument that can detect the smallest amounts of helium, even in the presence of other gases.





Technical Parameters of Helium Leak Detector:



Flow Rate Airghtness Helium Leak Detector





Airtightness Helium Mass Spectrometer Leak Detector Use in Pressurized Systems

Product Name

Helium Leak Detector

Flow Sensor

Display Precision

The value can be set to 0 to 4 decimal places

Sensor Range

LC103 (V5)

30mL/min~1000mL/min (optional)



LC101 (V6)

15mL/min~1000mL /min (optional)

Sensor Error

±3%F.S.(optional)





Direct Pressure

Display Precision

The value can be set to 0 to 4 decimal places

Recommended Test Pressure Range

LC103 (V5)

Mechanical Pressure Regulating

10~600kPa (Optional)

LC101(V6)

Mechanical Pressure Regulating

10~600kPa (Optional

Sensor Error

±0.1%FS.



Display Unit

Test Pressure

kPa,Mpa,kg/cm2,psi,mbar.bar, Torr,mmH,O,mmHg

Leakage

mL/s,mL/min,L/min,Lh,m3/h,Pa/min,g/h,SCCM

Parameter Program Number

64 groups(1~64)

Test Beat Setting

0~999 seconds, test time 1800 seconds

Power Supply

AC220V±10%, 50Hz

Test Pressure Source

Clean, Dry, Adequate flow, no less than 500KPa and 100KPa above the test pressure source

Overall Diamensions

Standard V5

330mm*222mm*448mm

Standard V6

321mm*205mm*560mm

Weight

About 16kg



Applications:

Medical Applications
Helium leak detector is also used in the medical sector for various applications. Some of the most common medical applications of helium leak detection include:



Leak testing of medical gas systems, including oxygen, nitrogen, and carbon dioxide systems


Testing of vacuum systems used in medical equipment, such as MRI machines


Leak testing of anesthesia machines


Leak testing of sterilization equipment


Helium leak detector is preferred in medical applications because it is non-toxic, non-reactive, and does not leave any residue. This ensures the safety and purity of medical gases and equipment, which is critical for patient safety.



Support and Services of Helium Leak Detector:



Installation Assistance: Guidance through the setup process to ensure your leak detector is installed correctly and functioning optimally right from the start.



Operational Training: Comprehensive training sessions for operators to become proficient in using the device, understanding its features, and interpreting results accurately.



Software Updates: Regular updates to the device's software to ensure you have access to the latest features, improvements, and security enhancements.



Repair Services: In the event of a malfunction, we offer repair services to restore your device to its full functionality as quickly as possible.



Parts Replacement: Access to genuine replacement parts to ensure the longevity and reliability of your helium leak detector.



Technical Documentation: Provision of detailed documentation, including user manuals, technical specifications, and troubleshooting guides to support the use of your device.



Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems 0

Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems 1Helium Hood Method



Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems 2



Negative Pressure Method

Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems 5





Sniffer Method

Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems 6

Airtightness Helium Mass Spectrometer Leak Detector In Pressurized Systems 7
