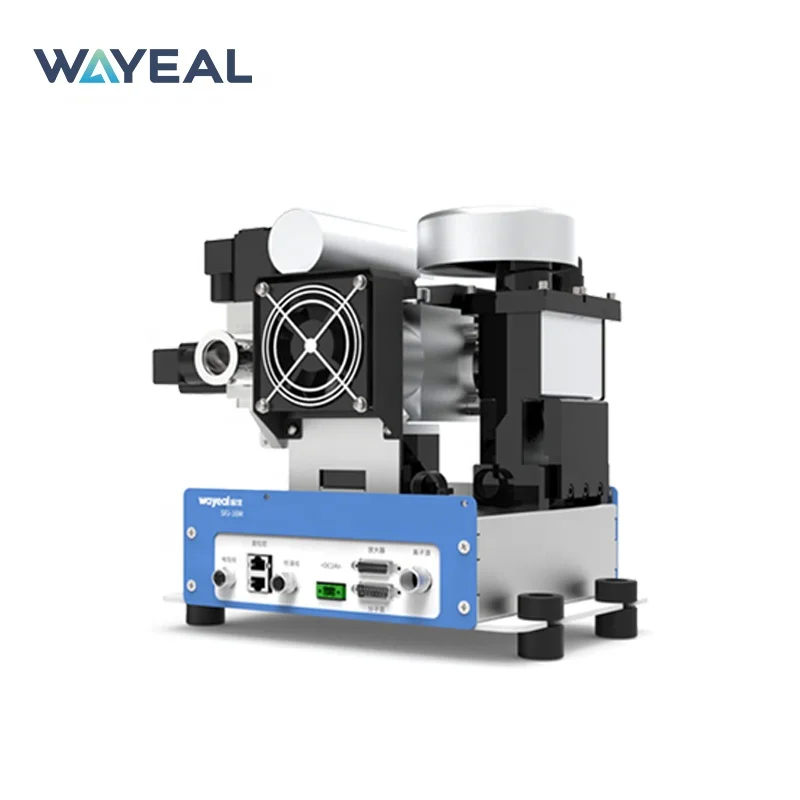

SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16M
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Temperature 0~40°C Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Diamension 400 * 330 *301mm Power Supply DC24V
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5.0*10-9 Pa.m3/s User Interface 5inch Color Touch Screen
Leak Detection Port (ULTRA): DN25KF, (FINE): DN16KF Language Chines/English
High Light

Automatic Switching helium leak detection

,

Sniffer Mode helium leak detection

Leave a Message
Product Description

Introduction of Helium Leak Detector:



The helium mass spectrometer leak detector is a complete system for localization and measuring of leaks inside or outside of a product. This method uses so called tracer gas – helium, which is used to fill up the product connected to the detector. Helium leaks in/out of the tested product in to the detector where its partial pressure is measured and displayed on a screen.



Technical Parameters of Helium Leak Detector:

SFJ-16M Helium Leak Detector















Performance Indicators








Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode
Vacuum Mode (ULTRA):5.0×10-13 (helium pumping speed >5L/s)
Vacuum mode (FINE):1.0×10-12 (helium pumping speed 2.5L/s)
Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode
5.0×10-9
Response time(s) <1
Startup time(min)
Maximum allowable leak detection pressure(Pa)

(ULTRA):40

(FINE): 200

Detectable quality 2,3,4(H2 , He-3, He-4)





















Basic Configuration












Man-machine interface 5 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O Input/output interface Eight inputs and eight outputs
Communication interface RS232/485,LAN
MES interface Standard
Physical size of instrument
(W)×(D)×(H),mm
400 * 330 * 301mm
Specifications of leak detection port

(ULTRA): DN25KF

(FINE): DN16KF

Power Supply DC24V
Operating temperature 0-40ºC
Power DC24V
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart


Applications of Helium Leak Detector:

Wayeal SFJ-16C Helium Leak Detector is an advanced and high-precision testing device that is widely used in the industrial sector for helium leak testing, providing a reliable and efficient solution for detecting leaks in vacuum systems. As a prominent helium leak detection supplier, Wayeal SFJ-16M is designed to detect and locate the smallest leaks in vacuum systems and help maintain the quality and safety of the equipment. It's widely used in the area of New energy battery, automobile refrigeration, power plants, pressure vessels, [recision machining, semiconductor industry, vacuum pump system and etc.





SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 0





Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 1

Sniffer Method

SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 2Helium Hood Method



SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 3



SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 4SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 5SFJ-16M Modular Vacuum Helium Testing Mass Spectrometer Leak Detector DC24V 6
