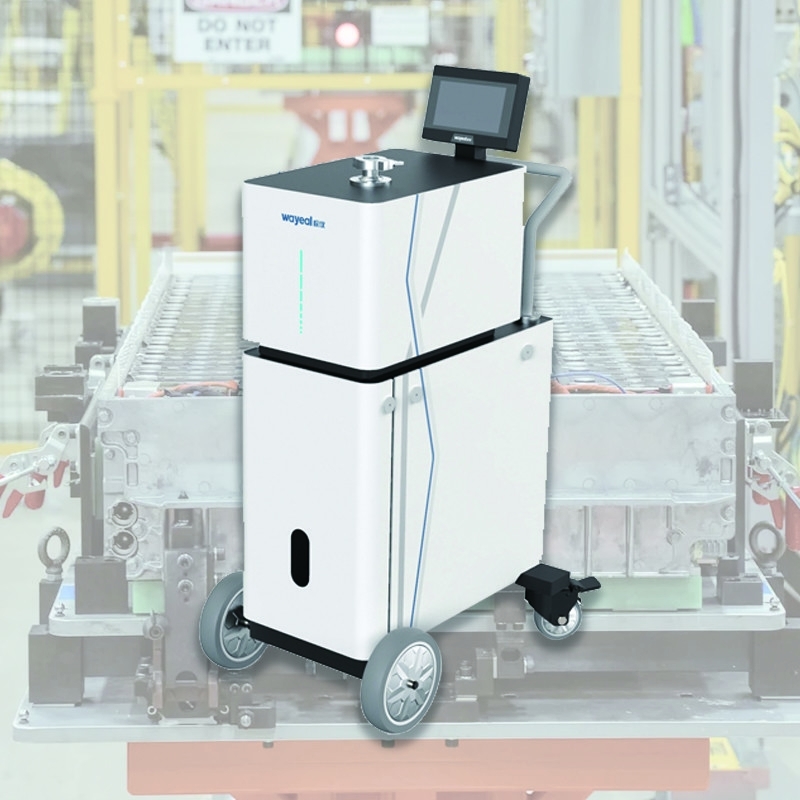

SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Detection Method Helium Mass Spectrometer
Power Supply AC220V, 50Hz/60Hz Diamension 475*714*1168mm
High Light

50Hz Helium Leak Detector

,

Mobile Trolley Design Helium Leak Detector

,

SFJ-16C Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector



Helium Leak Detector



The SFJ-16C helium leak detecor is the perfect leak detection solutions adapted to the semiconductor and display industries as well as other demanding applications where rapid pump down and high sensitivity is key. The helium leak detector is fitted with a backing pump and a powerful high vacuum pump, making them the ideal tools for leak testing of various components in clean environments.





Technical Parameters of Helium Leak Detector:



SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price

Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Leak Detection Port

DN25KF

Leak Rate Display

Numbers, Bar Charts, Graphs

Response Time(s)

<1s

User Interface

7inch Color Touch Screen

Operating temperature

0~40°C

Max Allowable Leak Detection Pressure (Pa)

1800

Communication Interface

RS232/485, LAN

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

5.0*10 -13 Pa.m3/s

Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode

2.5*10-9 Pa.m3/s

Startup Time (min)

≤2

Diamension

475*714*1168mm

Power Supply

AC220V, 50Hz/60Hz

Language

Chinese/English



Features of Helium Leak Detector:


1. 360°C Rotating LCD Touch Screen



2. Flat and wide table top with built-in storage drawers for easy workpiece placement and connection storage.



3. Harmonic Decoupling Algorithm



4. Stable Input and Ecient Output



5.  Intelligent Filtering Algorithm



6. Signal Scan Calibration Algorithm



7. Multi-stage Signal Amplication Technology



8. High Peormance Molecular Pumps



9. Clean Air Circuit System





Applications of Helium Leak Detector:



High-quality helium leak detectors can not only effectively improve product quality and production safety, but also effectively reduce the time and cost required for product maintenance and troubleshooting. At present, helium leak detectors have been widely used in semiconductor industry, large area coating, solar industry, accelerators, vacuum components – feedthroughs, valves, bellows, expansion joints, laser technology, ultra-pure media supply, electronics, aeronautics, medical technology and etc.



SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price 1Helium Hood Method



SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price 2



Negative Pressure Method

SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price 4





Vacuum Chamber Helium Leak Detection and Recovery System (internal filling)

SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price 5





Sniffer Method

SFJ-16C Mobile Trolley Design Vaccum Helium Leak Detector Machine Price 6
