Name: GM6100 GCMS Gas Chromatography Mass Spectrometer with Split/Splitless Injection System
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: GM6100
Price: 15,400.00 USD
Availability: InStock

Home > Products > Gas Chromatography Instrument >

GM6100 GCMS Gas Chromatography Mass Spectrometer with Split/Splitless Injection System

GC-7890 gas chromatography instrument

gas chromatography instrument with split splitless injector

gas analysis chromatography instrument with high repeatability

Place of Origin:

Anhui, China

Brand Name:

WAYEAL

Certification:

Model Number:

GM6100

Request A Quote

Product Details

Ion Source Temperature:

150-350℃

Power Supply:

220V ±10%, 50Hz ±2%

Ambient Temperature:

5°C To 40°C

Relative Humidity:

20% To 85%

GC Injection Port:

Split/Splitless Injection Port

Maximum Operating Temperature:

450°C

Control Precision:

0.001 Psi

Control Range:

0–100 Psi

Maximum Split Ratio:

12,500:1

Optional Carrier Gases:

N₂, H₂, He, Ar

Flow Rate Range (with N₂ As Carrier Gas):

0–500 ML/min

Temperature Range:

Above Ambient Temperature +4°C To 450°C

Programmable Temperature Ramps:

32 Steps/33 Platforms

Maximum Heating Rate:

≥75°C/min

Highlight:

GC-7890 gas chromatography instrument

gas chromatography instrument with split splitless injector

gas analysis chromatography instrument with high repeatability

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiate

Packaging Details

Wooden Case

Delivery Time

35 working days

Payment Terms

T/T, LC

Supply Ability

20 units/Month

GM6100 Gas Chromatograph Mass Spectrometer for Volatile Organic Compounds(vocs) Anslysis

Get Best Price

10.1-inch HD Touchscreen Gas Chromatograph GCMS Single Quadrupole Mass Spectrometer

Get Best Price

EI Ion Source Single Quadrupole Mass Spectrometer Gas Chromatopgraph Mass Spectrometer

Get Best Price

GM6100 Gas Chromatography Mass Spectrometer GCMS with Maximum Scan Speed 20000amu/s

Get Best Price

+8613586823203

export@wayeal.com.cn

Contact Now

Product Description

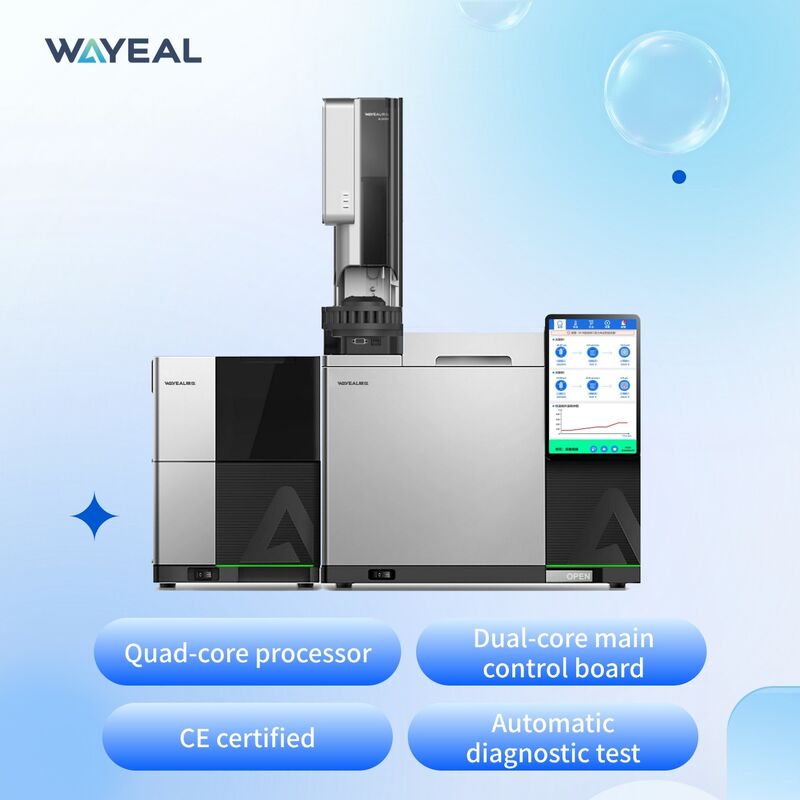

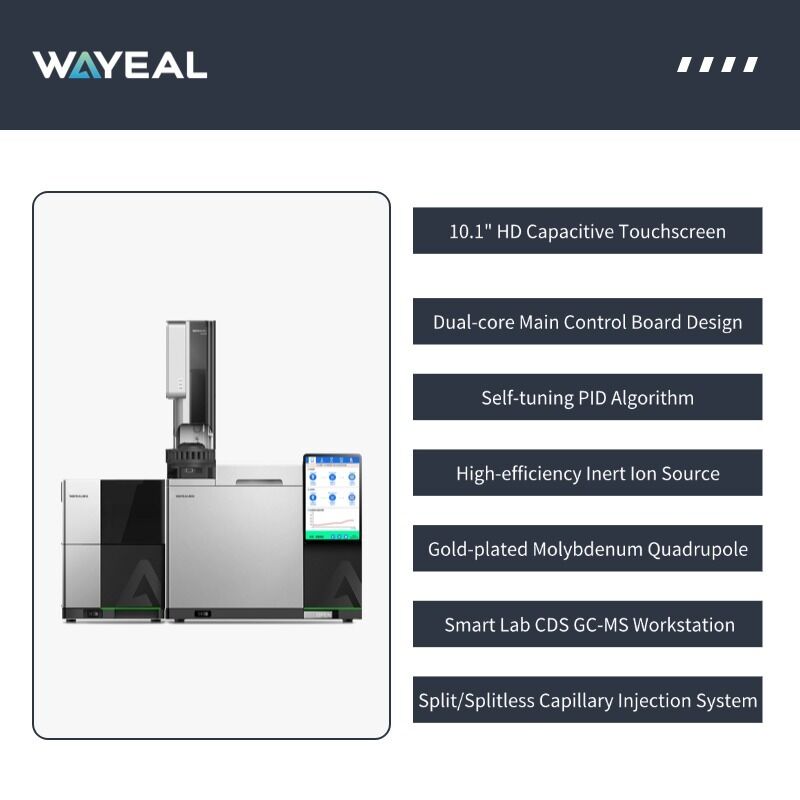

GM6100 Gas Chromatography Mass Spectrometer System Introduction:

The Wayeal GM6100 Series GCMS system integrates the upgraded GC6100 gas chromatograph with the high-performance MSD7000 mass spectrometry detector to form a precise and intelligent gas chromatography-mass spectrometry (GC-MS) system. An advanced control system with intelligent algorithms ensures continuity and stability throughout the experimental process. Users can easily control the entire system through a single intuitive software interface—from sample injection to data analysis—with full automation that reduces human error and improves efficiency. The system delivers a more efficient, precise, and intelligent analytical experience.

Technical Parameters:

Working Conditions
Power Supply	220V ±10%, 50Hz ±2%
Ambiet Temperature	5°C to 40°C
Relative Humidity	20%~85%
GC Injection Port
Injection Port	Split/Splitless
Maximum Operating Temperature	450°C
Control Prexision	0.001psi
Control Range	0-100psi
Maximum Split Ratio	12500:1
Optional Carrier Gases	N2, H2, He, Ar
Flow Rate Range (with N2 as carrier gas)	0-500mL/min
Oven
Temperature Range	Above ambient temperature +4°C to 450°C
Programmable Temperature Ramps	32 steps/33 platforms
Maximum Heating Rate	≥75°C/min
Column Cooling Time (22°C ambient)	From 450°C to 50°C in less than 5 minutes
Maximun Program Run Time	9999.99 minutes
Environmental Temperature Sensitivity	Column temperature changes <0.01°C for every 1°C change in ambient temperaute
Mass Spectrometry Detector
Ion Source	OFN IDL lower than 10fg
Ionization Energy	15-250eV
Ion Source Temperature	150-350°C
Transfer Line Temperature	100-350°C
Mass Range	0.5amu-1250amu
Mass Stability	<0.10amu/48hrs
Acquistion Mode	Scan, SIM, Scan and SIM
Ion Detector	Triaxial detector equipped with high-energy dynode and a long-life, high-sensitivity electron multiplier
Maximum Scan Speed	20000amu/s
Dynamic Range	10⁶
Fore Pump Pumping Speed	≥4m³/h
Turbo Molecular Pump Pumping Speed	≥250L/s
Autosampler
Sampler Capacity	16 positions
Solvent Bottle Positions	2
Waste Bottle Positions	1
