GM6100 Gas Chromatograph Mass Spectrometer for Volatile Organic Compounds(vocs) Anslysis

Basic Properties
Place of Origin: Anhui, China
Brand Name: WAYEAL

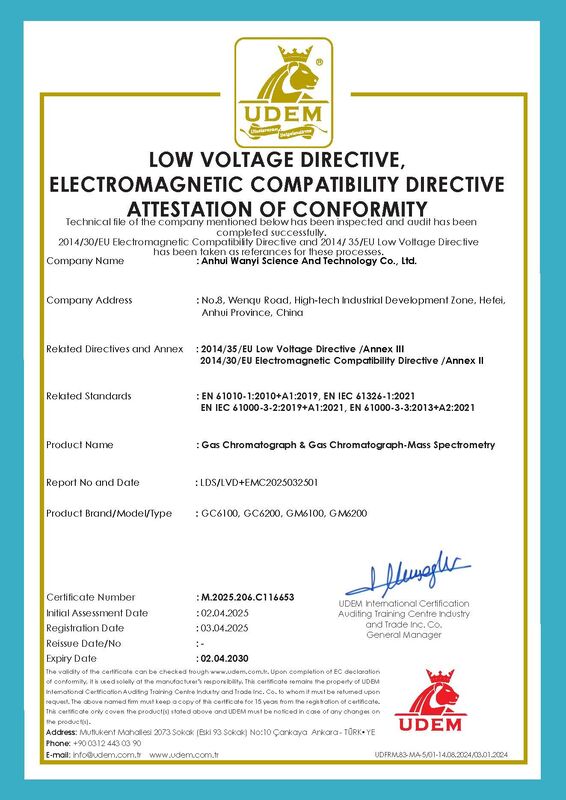

Certification: CE
Model Number: GM6100
Trading Properties
Minimum Order Quantity: 1
Price: Negotiate
Payment Terms: T/T,LC
Supply Ability: 20 units/Month
Tags

gas chromatography equipment

gc ms instrumentation

gc ms spectrometer GC gas chromatography
Specifications
Working Power: 220V ±10%, 50Hz/60Hz Control Range: 0–100 Psi
Ion Source Temperature: 150-350℃ Model: GM6100
Optional Carrier Gases: N₂, H₂, He, Ar Flow Rate Range: N2: 0–500mL/min
Injection Type: Split/Splitless Maximum Heating Rate: ≥75°C/min
High Light:

gas chromatography mass spectrometry device

,

split splitless injector for molecular detection

,

ion source temperature 150-350C
Product Description

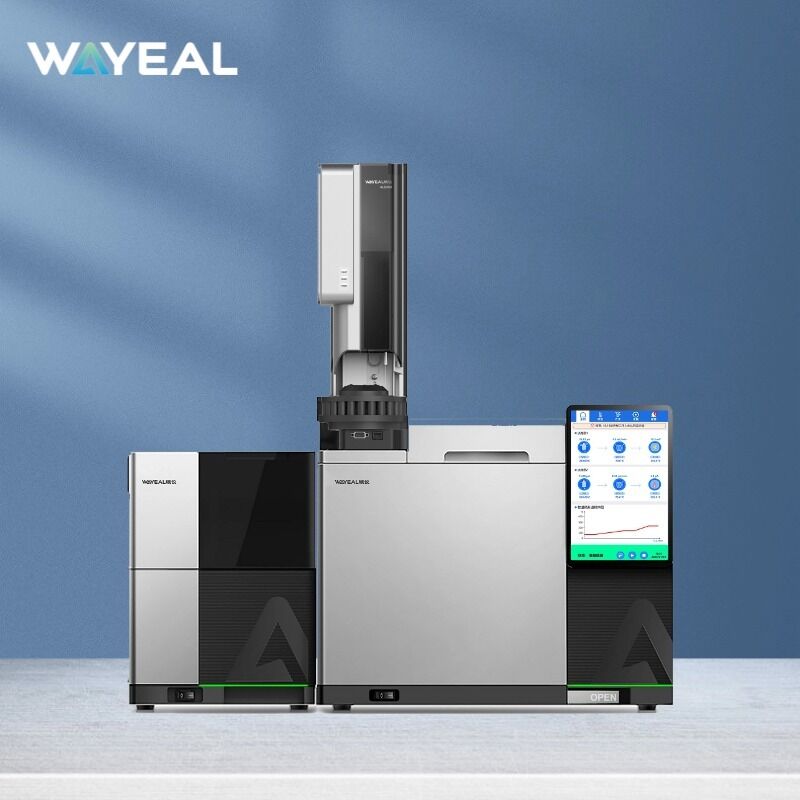

System Introduction of GM6100 GCMS/MS

The latest GC-MS system from Wayeal, combining the upgraded GC6100 Gas Chromatograph with a high-sensitivity mass spectrometry detector. This advanced gas chromatography-mass spectrometry system delivers precise, intelligent, and automated analytical performance for modern laboratories.
All-in-One Intelligent Control
Simplify your workflow with our intuitive software. Manage the entire GC-MS process—from automatic sample injection to data analysis—through a single user-friendly interface. This automation minimizes manual errors and maximizes lab productivity.
Reliable Analytical Performance for Key Applications
This GC-MS solution is engineered for accurate quantitative and qualitative analysis across multiple industries:
Food Safety: Detect pesticide residues, food additives, and flavor/fragrance components.
Environmental Monitoring: Identify Volatile Organic Compounds (VOCs) in ambient air.
Pharmaceutical & Clinical Testing: Analyze drug residues in blood, urine, and biological samples.

Technical Parameters of GM6100 Gas Chromatograph Mass Spectrometer

Working Conditions
Power Supply 220V ±10%, 50Hz ±2%
Ambiet Temperature 5°C to 40°C
Relative Humidity 20%~85%
GC Injection Port
Injection Port Split/Splitless
Maximum Operating Temperature 450°C
Control Prexision 0.001psi
Control Range 0-100psi
Maximum Split Ratio 12500:1
Optional Carrier Gases N2, H2, He, Ar
Flow Rate Range (with N2 as carrier gas) 0-500mL/min
Oven
Temperature Range Above ambient temperature +4°C to 450°C
Programmable Temperature Ramps 32 steps/33 platforms
Maximum Heating Rate ≥75°C/min
Column Cooling Time (22°C ambient) From 450°C to 50°C in less than 5 minutes
Maximun Program Run Time 9999.99 minutes
Environmental Temperature Sensitivity Column temperature changes <0.01°C for every 1°C change in ambient temperaute
Mass Spectrometry Detector
Ion Source OFN IDL lower than 10fg
Ionization Energy 15-250eV
Ion Source Temperature 150-350°C
Transfer Line Temperature 100-350°C
Mass Range 0.5amu-1250amu
Mass Stability <0.10amu/48hrs
Acquistion Mode Scan, SIM, Scan and SIM
Ion Detector Triaxial detector equipped with high-energy dynode and a long-life, high-sensitivity electron multiplier
Maximum Scan Speed 20000amu/s
Dynamic Range 106
Fore Pump Pumping Speed ≥4m3/h
Turbo Molecular Pump Pumping Speed ≥250L/s
Autosampler
Sampler Capacity 16 positions
Solvent Bottle Positions 2
Waste Bottle Positions 1
