Home > Products > Gas Chromatography Instrument >
Control Range 0 to 100 Psi Gas Chromatography Instrument Including USB and Ethernet Interface and 16 Position for Sample Testing

Control Range 0 to 100 Psi Gas Chromatography Instrument Including USB and Ethernet Interface and 16 Position for Sample Testing

0 to 100 psi gas chromatography instrument

gas chromatography instrument with USB interface

16 position sample testing chromatography instrument

Place of Origin:

Anhui, China

Brand Name:

WAYEAL

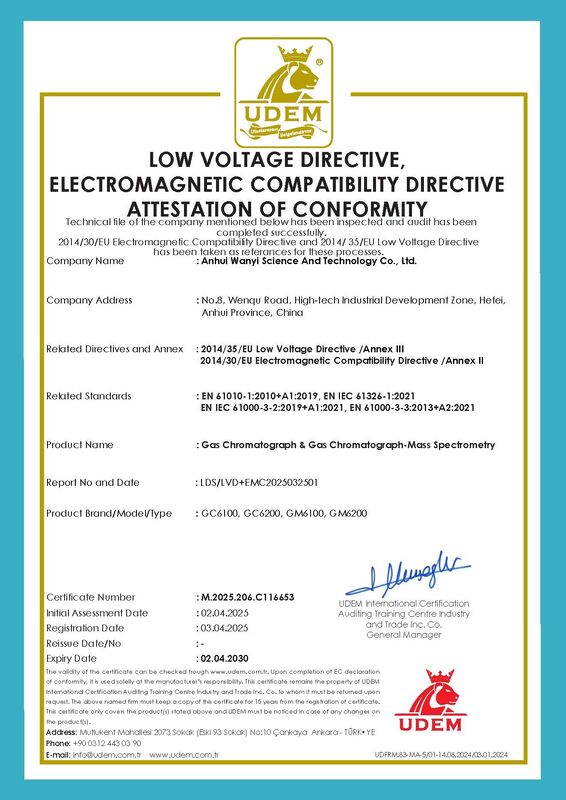

Certification:

CE

Model Number:

GM6100

Contact Us
Request A Quote
Control Range 0 to 100 Psi Gas Chromatography Instrument Including USB and Ethernet Interface and 16 Position for Sample Testing
Product Details
Working Power:
220V ±10%, 50Hz ±2%
Power Supply:
110-240V, 50/60Hz
Carrier Gas:
Helium
Ion Source Temperature:
150-350℃
Instrument Type:
Gas Chromatography
Supply Voltage:
220V±10%
Qualitative Repeatability:
≤0.1%
Interface:
USB And Ethernet
Highlight:

0 to 100 psi gas chromatography instrument

,

gas chromatography instrument with USB interface

,

16 position sample testing chromatography instrument

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiate
Packaging Details
Wooden Case
Delivery Time
35 working days
Payment Terms
T/T, LC
Supply Ability
20 units/Month
RELATED PRODUCTS
Good price Qualitative Repeatability ≤0.1 Percent Gas Chromatography Instrument Featuring Autosampler or Six-way Valve and Power Supply 50 60Hz for Results online

Qualitative Repeatability ≤0.1 Percent Gas Chromatography Instrument Featuring Autosampler or Six-way Valve and Power Supply 50 60Hz for Results

Get Best Price
Good price GM6100 GCMS Featuring Autosampler or Six way Valve Supporting Advanced Gas Chromatography Mass Spectrometry Procedures in Control online

GM6100 GCMS Featuring Autosampler or Six way Valve Supporting Advanced Gas Chromatography Mass Spectrometry Procedures in Control

Get Best Price
Good price Control Range 0 to 100 Psi Gas Chromatography Instrument Including USB and Ethernet Interface and 16 Position for Sample Testing online

Control Range 0 to 100 Psi Gas Chromatography Instrument Including USB and Ethernet Interface and 16 Position for Sample Testing

Get Best Price
Good price USB And Ethernet Interface Equipped GCMSMS Device 220V±10% Optimized for High Throughput Analysis and Data Acquisition online

USB And Ethernet Interface Equipped GCMSMS Device 220V±10% Optimized for High Throughput Analysis and Data Acquisition

Get Best Price
Contact Us
+8613586823203
export@wayeal.com.cn
Contact Now
Product Description

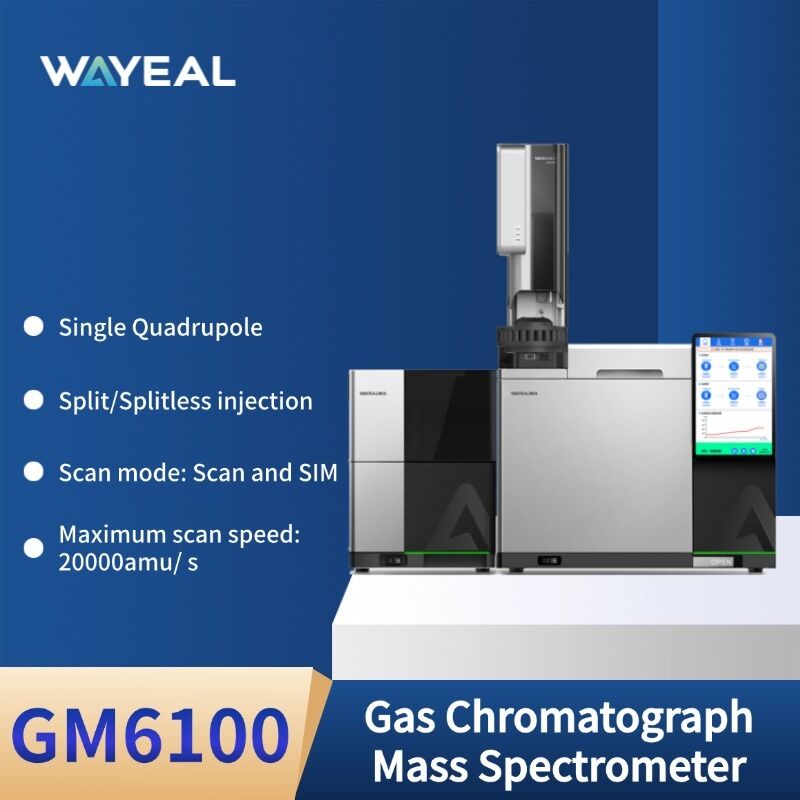

System Introduction of GM6100 Gas Chromatography Mass Spectrometer

Integrated System
The Wayeal GM6100 Series combines the upgraded GC6100 gas chromatograph with the high-performance MSD7000 mass spectrometry detector to form a precise and intelligent GC-MS system.
Intelligent Control
An advanced control system with intelligent algorithms ensures continuity and stability throughout the experimental process.
Full Automation
A single intuitive software interface gives users complete control from sample injection to data analysis, with full automation that reduces human error and improves efficiency.
Superior Experience
The system delivers a more efficient, precise, and intelligent analytical experience.

Technical Parameters of GM6100 GCMS

Working Conditions
Power Supply 220V ±10%, 50Hz ±2%
Ambiet Temperature 5°C to 40°C
Relative Humidity 20%~85%
GC Injection Port
Injection Port Split/Splitless
Maximum Operating Temperature 450°C
Control Prexision 0.001psi
Control Range 0-100psi
Maximum Split Ratio 12500:1
Optional Carrier Gases N2, H2, He, Ar
Flow Rate Range (with N2 as carrier gas) 0-500mL/min
Oven
Temperature Range Above ambient temperature +4°C to 450°C
Programmable Temperature Ramps 32 steps/33 platforms
Maximum Heating Rate ≥75°C/min
Column Cooling Time (22°C ambient) From 450°C to 50°C in less than 5 minutes
Maximun Program Run Time 9999.99 minutes
Environmental Temperature Sensitivity Column temperature changes <0.01°C for every 1°C change in ambient temperaute
Mass Spectrometry Detector
Ion Source OFN IDL lower than 10fg
Ionization Energy 15-250eV
Ion Source Temperature 150-350°C
Transfer Line Temperature 100-350°C
Mass Range 0.5amu-1250amu
Mass Stability <0.10amu/48hrs
Acquistion Mode Scan, SIM, Scan and SIM
Ion Detector Triaxial detector equipped with high-energy dynode and a long-life, high-sensitivity electron multiplier
Maximum Scan Speed 20000amu/s
Dynamic Range 106
Fore Pump Pumping Speed ≥4m3/h
Turbo Molecular Pump Pumping Speed ≥250L/s
Autosampler
Sampler Capacity 16 positions
Solvent Bottle Positions 2
Waste Bottle Positions 1
