Home > Products > Gas Chromatography Instrument >
Qualitative Repeatability ≤0.1 Percent Gas Chromatography Instrument Featuring Autosampler or Six-way Valve and Power Supply 50 60Hz for Results

Qualitative Repeatability ≤0.1 Percent Gas Chromatography Instrument Featuring Autosampler or Six-way Valve and Power Supply 50 60Hz for Results

high precision gas chromatography instrument

gas chromatography instrument with autosampler

gas chromatography instrument six-way valve

Place of Origin:

Anhui, China

Brand Name:

WAYEAL

Certification:

CE

Model Number:

GM6100

Contact Us
Request A Quote
Qualitative Repeatability ≤0.1 Percent Gas Chromatography Instrument Featuring Autosampler or Six-way Valve and Power Supply 50 60Hz for Results
Product Details
Power Supply:
110-240V, 50/60Hz
Working Power:
220V ±10%, 50Hz ±2%
Interface:
USB And Ethernet
Injection Type:
Split/Splitless Injector
Sampler:
Autosampler Or Six-way Valve
Weight:
35 Kg
Carrier Gas:
Helium
Qualitative Repeatability:
≤0.1%
Highlight:

high precision gas chromatography instrument

,

gas chromatography instrument with autosampler

,

gas chromatography instrument six-way valve

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiate
Packaging Details
Wooden Case
Delivery Time
35 working days
Payment Terms
T/T, LC
Supply Ability
20 units/Month
RELATED PRODUCTS
Good price Qualitative Repeatability ≤0.1 Percent Gas Chromatography Instrument Featuring Autosampler or Six-way Valve and Power Supply 50 60Hz for Results online

Qualitative Repeatability ≤0.1 Percent Gas Chromatography Instrument Featuring Autosampler or Six-way Valve and Power Supply 50 60Hz for Results

Get Best Price
Good price GM6100 GCMS Featuring Autosampler or Six way Valve Supporting Advanced Gas Chromatography Mass Spectrometry Procedures in Control online

GM6100 GCMS Featuring Autosampler or Six way Valve Supporting Advanced Gas Chromatography Mass Spectrometry Procedures in Control

Get Best Price
Good price Control Range 0 to 100 Psi Gas Chromatography Instrument Including USB and Ethernet Interface and 16 Position for Sample Testing online

Control Range 0 to 100 Psi Gas Chromatography Instrument Including USB and Ethernet Interface and 16 Position for Sample Testing

Get Best Price
Good price USB And Ethernet Interface Equipped GCMSMS Device 220V±10% Optimized for High Throughput Analysis and Data Acquisition online

USB And Ethernet Interface Equipped GCMSMS Device 220V±10% Optimized for High Throughput Analysis and Data Acquisition

Get Best Price
Contact Us
+8613586823203
export@wayeal.com.cn
Contact Now
Product Description

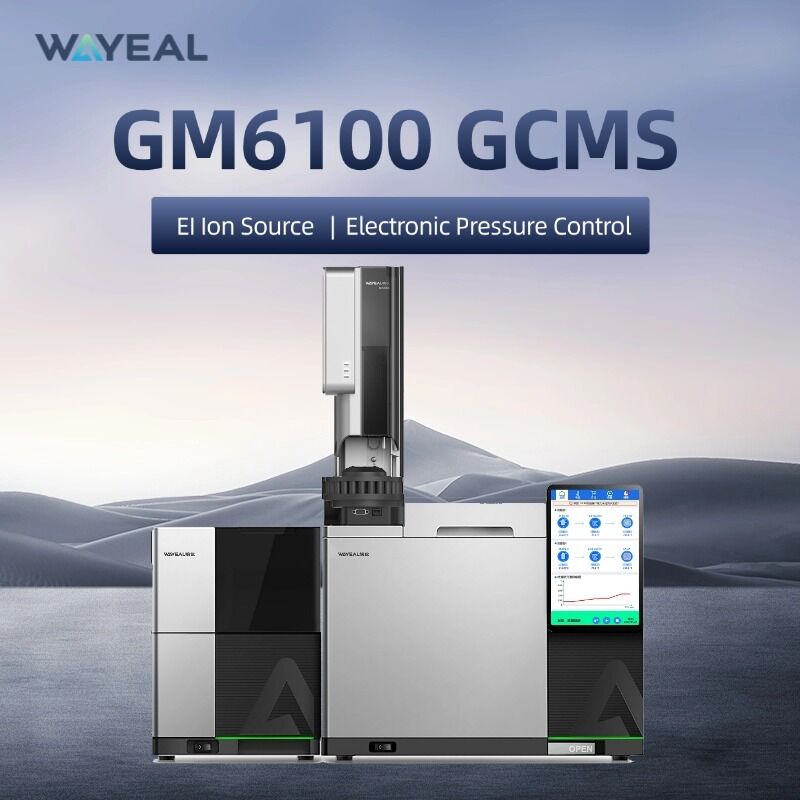

System Instroduction of GM6100 Gas Chromatography Mass Spectrometer

From sample injection to data analysis, the Wanyi Technology GM6100 Series delivers a seamless analytical experience. The system integrates the upgraded GC6100 gas chromatograph with the high-performance MSD7000 mass spectrometry detector to form a precise and intelligent GC-MS system. An advanced control system with intelligent algorithms ensures continuity and stability throughout the workflow. With a single intuitive software interface, users can automate every step—reducing human error and improving efficiency. The result is a more efficient, precise, and intelligent analytical experience.

Techncial Parameters of GM6100 Gas Chromatograph Mass Spectrometer

Working Conditions
Power Supply 220V ±10%, 50Hz ±2%
Ambiet Temperature 5°C to 40°C
Relative Humidity 20%~85%
GC Injection Port
Injection Port Split/Splitless
Maximum Operating Temperature 450°C
Control Prexision 0.001psi
Control Range 0-100psi
Maximum Split Ratio 12500:1
Optional Carrier Gases N2, H2, He, Ar
Flow Rate Range (with N2 as carrier gas) 0-500mL/min
Oven
Temperature Range Above ambient temperature +4°C to 450°C
Programmable Temperature Ramps 32 steps/33 platforms
Maximum Heating Rate ≥75°C/min
Column Cooling Time (22°C ambient) From 450°C to 50°C in less than 5 minutes
Maximun Program Run Time 9999.99 minutes
Environmental Temperature Sensitivity Column temperature changes <0.01°C for every 1°C change in ambient temperaute
Mass Spectrometry Detector
Ion Source OFN IDL lower than 10fg
Ionization Energy 15-250eV
Ion Source Temperature 150-350°C
Transfer Line Temperature 100-350°C
Mass Range 0.5amu-1250amu
Mass Stability <0.10amu/48hrs
Acquistion Mode Scan, SIM, Scan and SIM
Ion Detector Triaxial detector equipped with high-energy dynode and a long-life, high-sensitivity electron multiplier
Maximum Scan Speed 20000amu/s
Dynamic Range 106
Fore Pump Pumping Speed ≥4m3/h
Turbo Molecular Pump Pumping Speed ≥250L/s
Autosampler
Sampler Capacity 16 positions
Solvent Bottle Positions 2
Waste Bottle Positions 1
