Gas Chromatography Mass Spectrometer GCMS for Pesticide Residue Analysis

Basic Properties
Place of Origin: Anhui, China
Brand Name: WAYEAL
Certification: CE
Model Number: GM6100
Trading Properties
Minimum Order Quantity: 1
Price: Negotiate
Payment Terms: T/T,LC
Supply Ability: 20 units/Month
Tags

gas chromatography equipment

gc ms instrumentation

gc ms spectrometer GC gas chromatography
Specifications
Power Supply: 220V, 50/60Hz Ion Source Temperature: 150-350℃
Control Range: 0–100 Psi Carrier Gas: He, N2, H2, Ar
Minimum Detectability: ≤1.5pg/s Linear Range: ≥10⁷
Cooling Time (22°C ambient): From 450°C To 50°C In <5 Minutes Injection Position: 16
High Light:

high-speed gas chromatography power supply

,

75°C/min GCMS power unit

,

110-240V chemical analysis power supply
Product Description

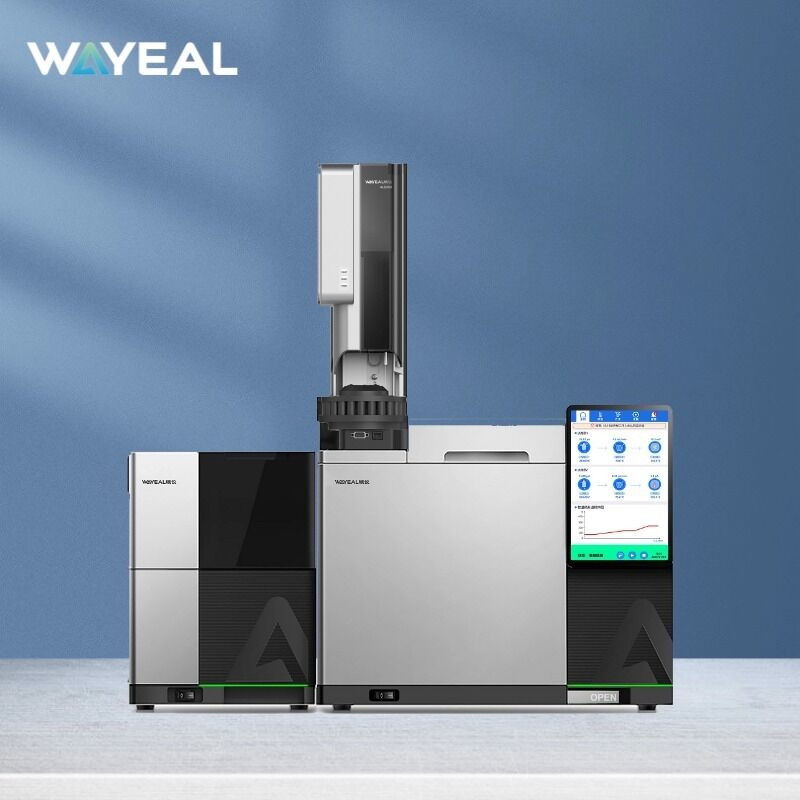

System Introduction of GM6100 Gas Chromatograph Mass Spectrometry

We have integrated the upgraded GC6100 gas chromatograph with an advanced mass spectrometry detector to create a high-throughput GC-MS system tailored for challenging organic compound analysis.
Automated Workflow for Consistent Results
Our smart software suite provides complete automation from sample introduction to final data processing. This closed-loop design reduces operator-induced errors and ensures high repeatability for your gas chromatography-mass spectrometry tasks.
Key Detection Capabilities (Ideal for Routine Testing)
Food & Agriculture: Quantitative screening of pesticide residues and food additives.
Environmental Science: Trace-level quantification of VOCs and semi-volatile organics.
Pharmaceutical Analysis: Residual solvent and drug residue analysis in complex matrices (blood/urine).
Industrial Hygiene: Monitoring of Volatile Organic Compounds in workplace atmospheres.

Technical Specifications of GM6100 GC-MS System

Working Conditions
Power Supply 220V ±10%, 50Hz ±2%
Ambiet Temperature 5°C to 40°C
Relative Humidity 20%~85%
GC Injection Port
Injection Port Split/Splitless
Maximum Operating Temperature 450°C
Control Prexision 0.001psi
Control Range 0-100psi
Maximum Split Ratio 12500:1
Optional Carrier Gases N2, H2, He, Ar
Flow Rate Range (with N2 as carrier gas) 0-500mL/min
Oven
Temperature Range Above ambient temperature +4°C to 450°C
Programmable Temperature Ramps 32 steps/33 platforms
Maximum Heating Rate ≥75°C/min
Column Cooling Time (22°C ambient) From 450°C to 50°C in less than 5 minutes
Maximun Program Run Time 9999.99 minutes
Environmental Temperature Sensitivity Column temperature changes <0.01°C for every 1°C change in ambient temperaute
Mass Spectrometry Detector
Ion Source OFN IDL lower than 10fg
Ionization Energy 15-250eV
Ion Source Temperature 150-350°C
Transfer Line Temperature 100-350°C
Mass Range 0.5amu-1250amu
Mass Stability <0.10amu/48hrs
Acquistion Mode Scan, SIM, Scan and SIM
Ion Detector Triaxial detector equipped with high-energy dynode and a long-life, high-sensitivity electron multiplier
Maximum Scan Speed 20000amu/s
Dynamic Range 106
Fore Pump Pumping Speed ≥4m3/h
Turbo Molecular Pump Pumping Speed ≥250L/s
Autosampler
Sampler Capacity 16 positions
Solvent Bottle Positions 2
Waste Bottle Positions 1
