Name: China Brand GM6100 Gas Chroamtography Mass Spectrometer System With 16 Injection Bits
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: GM6100
Price: 15,400.00 USD
Availability: InStock

Home > Products > Gas Chromatography Instrument >

China Brand GM6100 Gas Chroamtography Mass Spectrometer System With 16 Injection Bits

helium carrier gas chromatography instrument

GC-7890 ion source temperature

chemical analysis gas chromatography

Place of Origin:

Anhui, China

Brand Name:

WAYEAL

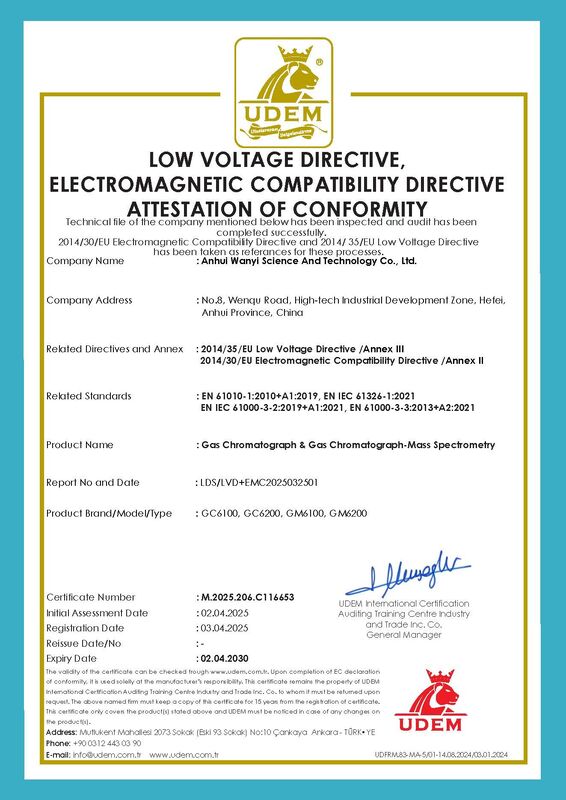

Certification:

Model Number:

GM6100

Request A Quote

Product Details

Working Power:

220V ±10%, 50Hz ±2%

Injection Port:

Split/Splitless

Maximum Operating Temperature:

450°C

Injection Position:

Maximum Split Ratio:

12,500:1

Optional Carrier Gases:

N₂, H₂, He, Ar

Flow Rate Range (with N₂ As Carrier Gas):

0–500 ML/min

Model:

GM6100

Programmable Temperature Ramps:

32 Steps/33 Platforms

Maximum Heating Rate:

≥75°C/min

Ionization Energy:

15-250eV

Ion Source Temperature:

150-350℃

Highlight:

helium carrier gas chromatography instrument

GC-7890 ion source temperature

chemical analysis gas chromatography

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiate

Packaging Details

Wooden Case

Delivery Time

35 working days

Payment Terms

T/T, LC

Supply Ability

20 units/Month

GM6100 Gas Chromatograph Mass Spectrometer for Volatile Organic Compounds(vocs) Anslysis

Get Best Price

10.1-inch HD Touchscreen Gas Chromatograph GCMS Single Quadrupole Mass Spectrometer

Get Best Price

EI Ion Source Single Quadrupole Mass Spectrometer Gas Chromatopgraph Mass Spectrometer

Get Best Price

GM6100 Gas Chromatography Mass Spectrometer GCMS with Maximum Scan Speed 20000amu/s

Get Best Price

+8613586823203

export@wayeal.com.cn

Contact Now

Product Description

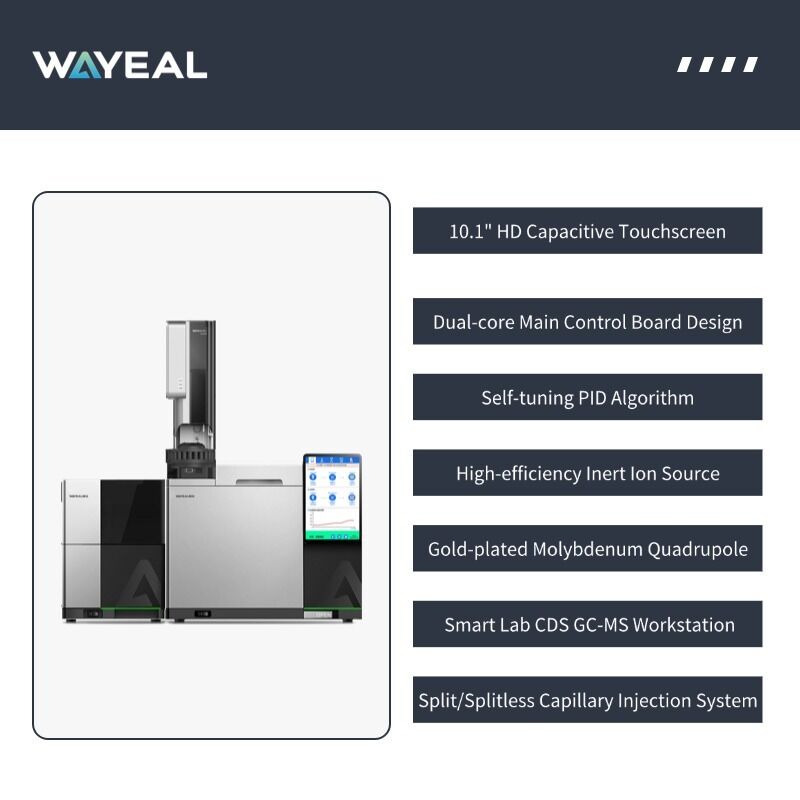

System Introduction of GM6100 Gas Chromatography Mass Spectrometer

Designed for laboratories seeking efficiency and precision, the Wayeal GM6100 Series delivers a powerful GC-MS experience. By integrating the upgraded GC6100 gas chromatograph with the high-performance MSD7000 mass spectrometry detector, the system provides precise and intelligent performance. Advanced controls and intelligent algorithms ensure continuous, stable operation from start to finish. A single intuitive software interface allows users to automate the entire workflow—sample injection through data analysis—minimizing human error and maximizing productivity. Experience a more efficient, precise, and intelligent analytical solution.

Technical Parameters of GM6100 Gas Chromatography Mass Spectrometer

Working Conditions
Power Supply	220V ±10%, 50Hz ±2%
Ambiet Temperature	5°C to 40°C
Relative Humidity	20%~85%
GC Injection Port
Injection Port	Split/Splitless
Maximum Operating Temperature	450°C
Control Prexision	0.001psi
Control Range	0-100psi
Maximum Split Ratio	12500:1
Optional Carrier Gases	N2, H2, He, Ar
Flow Rate Range (with N2 as carrier gas)	0-500mL/min
Oven
Temperature Range	Above ambient temperature +4°C to 450°C
Programmable Temperature Ramps	32 steps/33 platforms
Maximum Heating Rate	≥75°C/min
Column Cooling Time (22°C ambient)	From 450°C to 50°C in less than 5 minutes
Maximun Program Run Time	9999.99 minutes
Environmental Temperature Sensitivity	Column temperature changes <0.01°C for every 1°C change in ambient temperaute
Mass Spectrometry Detector
Ion Source	OFN IDL lower than 10fg
Ionization Energy	15-250eV
Ion Source Temperature	150-350°C
Transfer Line Temperature	100-350°C
Mass Range	0.5amu-1250amu
Mass Stability	<0.10amu/48hrs
Acquistion Mode	Scan, SIM, Scan and SIM
Ion Detector	Triaxial detector equipped with high-energy dynode and a long-life, high-sensitivity electron multiplier
Maximum Scan Speed	20000amu/s
Dynamic Range	10⁶
Fore Pump Pumping Speed	≥4m³/h
Turbo Molecular Pump Pumping Speed	≥250L/s
Autosampler
Sampler Capacity	16 positions
Solvent Bottle Positions	2
Waste Bottle Positions	1
