20 Micron Inlet Filter for Helium Leak Detector

Basic Properties

Place of Origin: Anhui, China

Brand Name: Wayeal

Certification: ISO

Trading Properties

Minimum Order Quantity: 1

Price: Negotiation

Payment Terms: T/T, L/C

Supply Ability: 500 Units/Month

helium mass spectrometer leak detector

vacuum helium leak detector

Specifications

Prduct Name:

20μm Inlet Filter

Size:

20μm

Material:

Stainless Steel

Leak Detection Port:

KF25

High Light:

20 micron helium leak detector filter

inlet filter for leak detector

helium detector replacement filter

Product Description

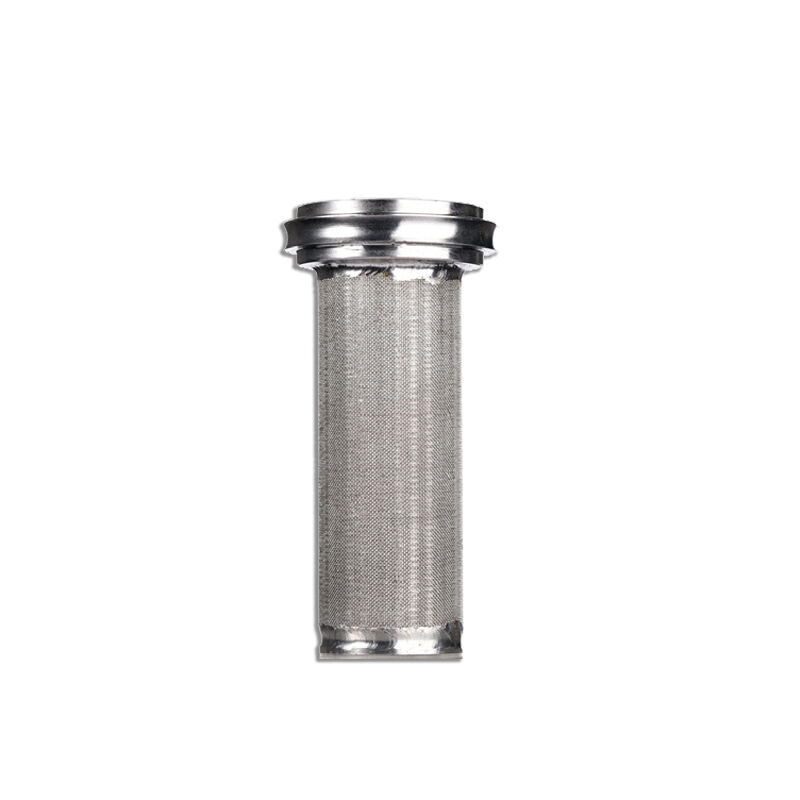

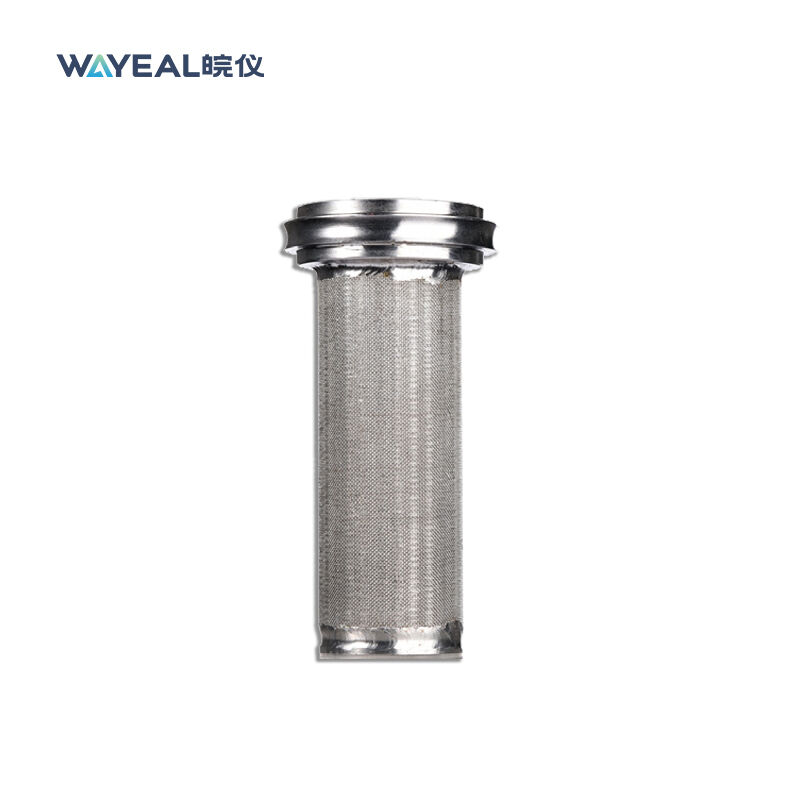

Introduction of 20μm Inlet Filter

The 20-micron inlet filter is a protective device installed at the sampling inlet of a helium mass spectrometer leak detector. Its core function is to block solid particles from entering the instrument, thereby preventing system contamination and damage. The filter element is typically made of sintered stainless steel, and the entire assembly is compact, directly integrated into the inlet connector.

Product Name	20μm Inlet Filter
Size	20μm
Material	Stainless Steel

Function of 20μm Inlet Filter

The primary function of this filter is to protect the leak detector's critical and expensive components. Specifically, it serves to:
Prevent Particulate Contamination: Metal debris, dust, oil condensates, and other fine particles may be present in the tested pipelines or vessels. Without filtration, these particles could enter the leak detector along with the sampled gas (and the tracer helium gas).
Avoid Clogging: These particles could clog more delicate downstream components, such as molecular sieve adsorbers or narrow vacuum passages. This can lead to reduced pumping speed, slow response times, or even instrument failure.
Protect Vacuum Pumps: Hard particles could potentially damage the precise mechanisms of vacuum pumps, such as the scrolls of a scroll pump or the blades of a turbomolecular pump.
