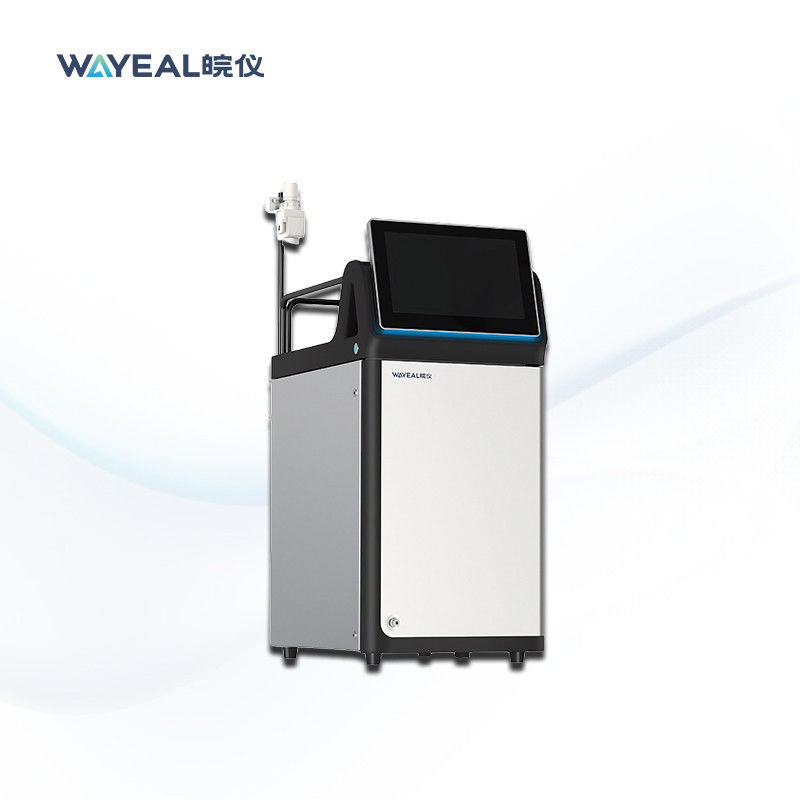

Ion Chromatography Instrument With 0.001~12.000mL/min Flow Rate

Name: Ion Chromatography Instrument With 0.001~12.000mL/min Flow Rate
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: IC6200
Price: 15,400.00 USD
Availability: InStock

Basic Properties

Place of Origin: Anhui, China

Brand Name: Wayeal

Certification: CE

Model Number: IC6200

Trading Properties

Minimum Order Quantity: 1 Unit

Price: Negotiate

Payment Terms: T/T

Supply Ability: 30 Units/Month

ion chromatography system

Specifications

Product Name:	IC6200 Ion Chromatography Instrument	Qualitative Repeatability:	≤ 0.2%
Flow Rate Stability:	≤ ±0.1%	Flow Rate Setting Error:	≤ ±0.1%
Injection Volume:	10uL---4000uL	Pump Pressure:	(0–42)MPa
Power Supply:	220V, 50~60Hz	Suppressor Type:	Electrolytic Self-regenerating Membrane Suppressor
High Light:	10.000mL/min Ion Chromatography Instrument , Highly Stable Ion Chromatography Instrument

Product Description

Technical Parameters of IC6200 Ion Chromatography Instrument

System Parameter
Qualititative Repeatability	≤0.05%
Quantitative Repeatability	≤0.2%
Pump System
Flow Rate (Full PEEK Pump)	(0.001–12.000) mL/min
Pump Head Pressure Resistance	(0–42) MPa
Flow Rate Set Error	≤ ±0.1%
Flow Rate Stability	≤ ±0.1%
Pressure Display Resolution	0.01 MPa

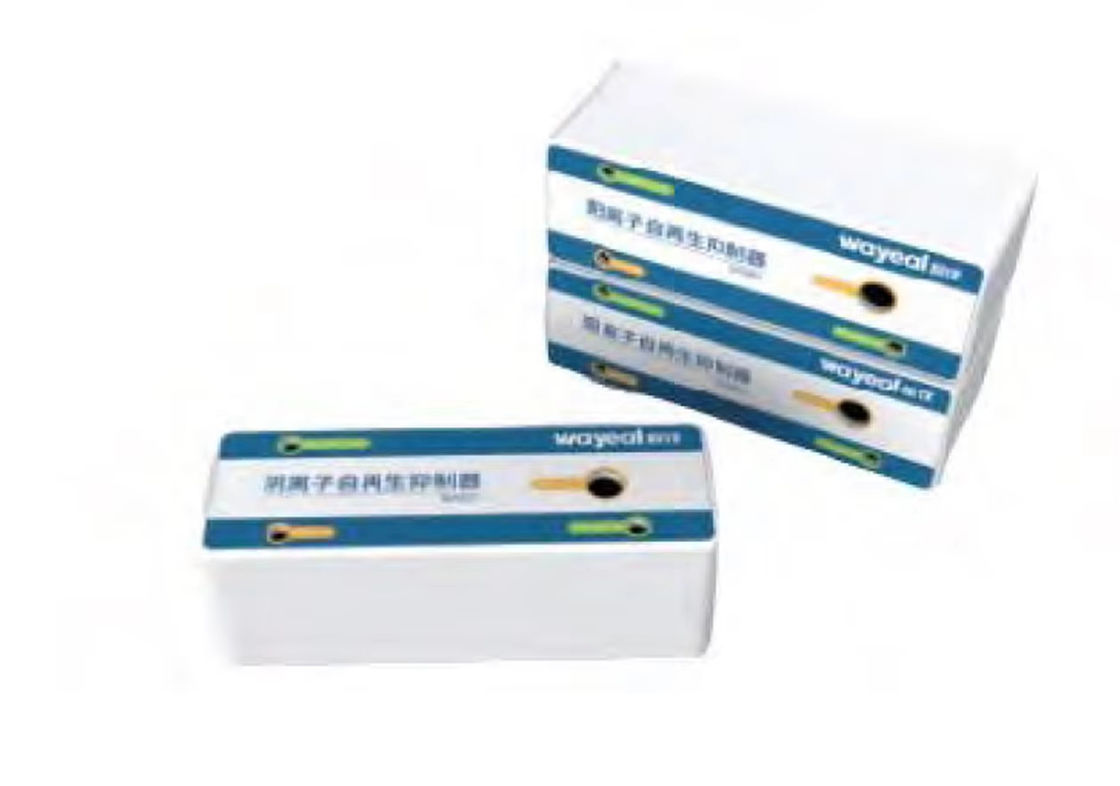

Suppressor
Suppressor Type	Electrolytic self-regenerating membrane suppressor
Constant Current Range	0–500 mA, adjustable in increments of 1 mA
Column Oven
Temperature Range	Ambient +5°C to 85°C
Temperature Stability	±0.01°C
Compatibility	Compatible with 250 mm and 150 mm length columns

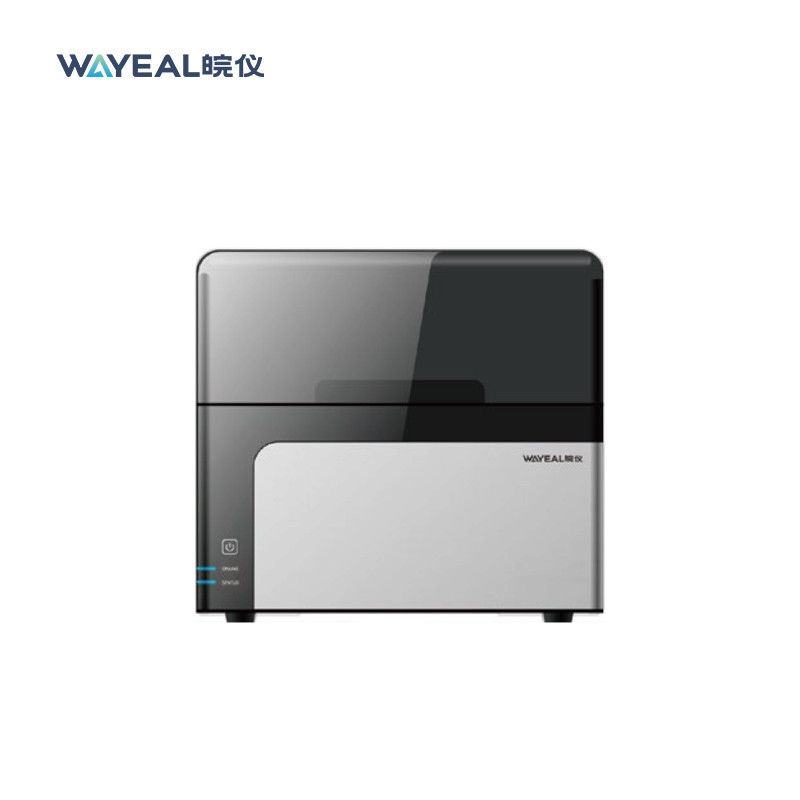

AS2800 Series Autosampler
Quantitative Repeatability	< 0.5% RSD (full-loop injection)
Sample Positions	48 positions / 11 positions
Wash Ports	2 ports (fine wash and coarse wash)
Operating Temperature	10–40°C
Vial Types	5mL/ 100mL
Injection Volume	10 µL – 4000 µL (depending on sample loop size)
Single Injection Cycle Time	Approx. 20s (depending on wash time and injection volume)
Injection Mode	Full-loop injection

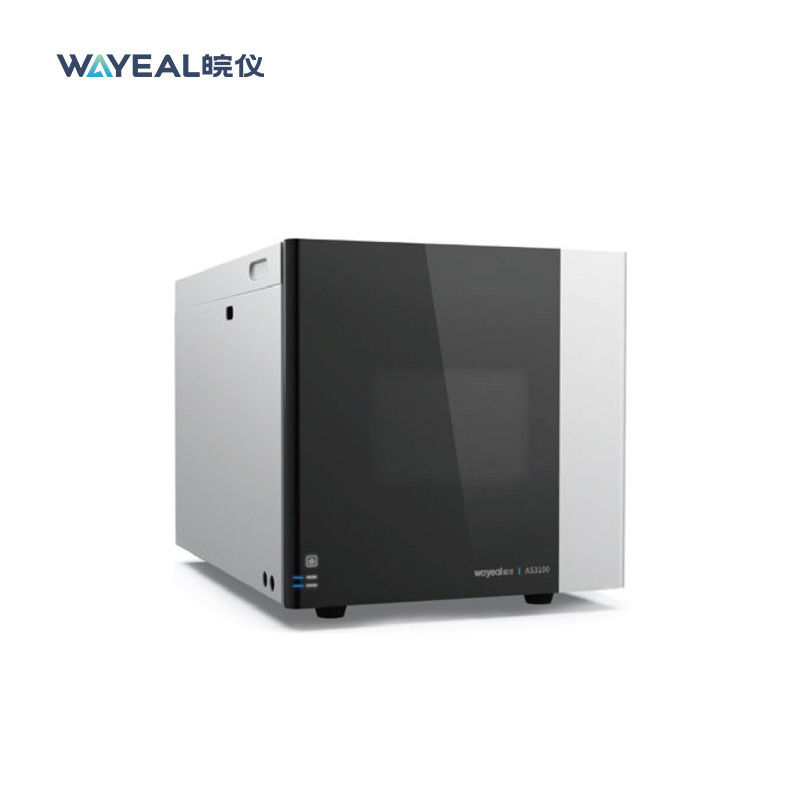

AS3110 Series Autosampler
Sample Capacity	64/120 positions
Cooling Temperature Range	4–30°C
Repeatability	< 0.3% RSD (full-loop injection, injection volume > 5 µL)
Syringe Specifications	Standard: 500 µL; Optional: 250 µL, 1000 µL, 2500 µL
Sample Loop Specifications	Standard: 100 µL; Optional: 25 µL, 50 µL, 200 µL
Carryover (Cross Contamination)	< 0.01%

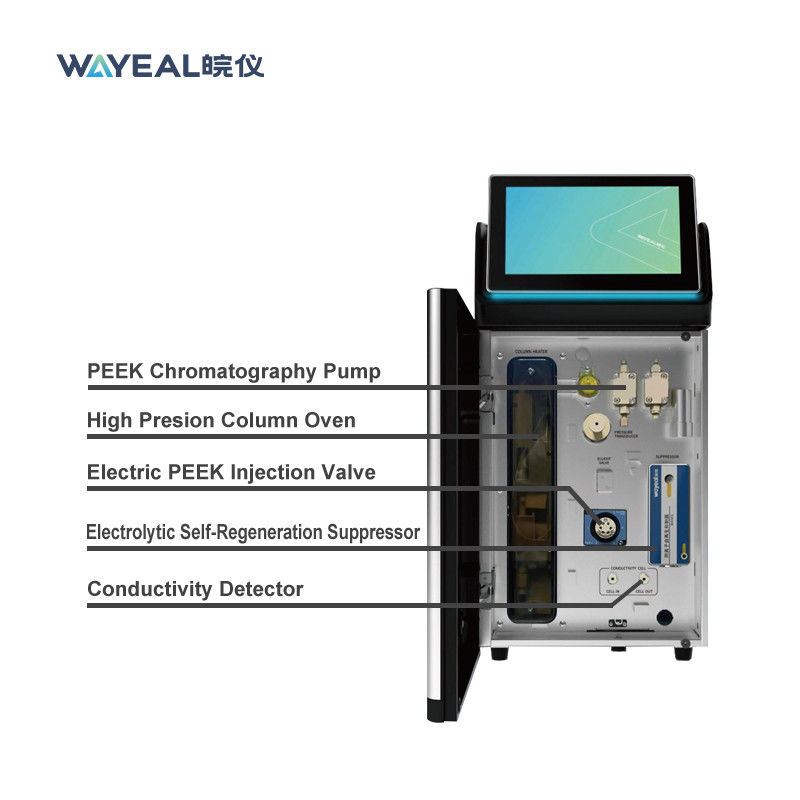

Key Advantages of IC6200 Ion Chromatography Instrument

Precision PEEK Material Ion Chromatography Pump

Fully PEEK pump head, resistant to acids, alkalis and reversed-phase organic solvents, avoiding metal contamination.

Both of the pump head and drive system are use suspension technology, which significantly extends the life of seals and reduces the cost of use and maintenance.

Tandem dual-plunger mode with electronic pulsation suppression technology provides high precision, low pulsation, and low drift eluent.

With high and low voltage protection function, instantly protect the whole analyzing and detection system.

All-plastic non-metallic flow path

All PEEK pump.

PEEK motorized injection valve.

Eluent storage tank, liquid piping and joints are made of acid and alkali corrosion-resistant materials such as PEEK, PTFE and PP.

All-plastic colorful high and low pressure liquid line piping, easy to identify.

Applications of Ion Chromatography in the Chemical and Petrochemical Industries

1. Quality Control and Product Analysis

Ion chromatograph is widely used to ensure the quality and consistency of chemical products and raw materials.

Purity Analysis: Ion chromatograph is employed to determine the purity of chemicals by detecting trace levels of ionic impurities, such as chloride, sulfate, and sodium, which can affect product performance.

Additive and Catalyst Analysis: Ion chromatograph can quantify additives and catalysts in chemical formulations, ensuring they are present at optimal concentrations.

Polymer and Resin Analysis: Ion chromatograph is used to analyze ionic contaminants in polymers and resins, which can impact their mechanical and chemical properties.

2. Process Monitoring and Optimization

Ion chromatograph plays a crucial role in monitoring and optimizing chemical and petrochemical processes.

Reaction Monitoring: Ion chromatograph can be used to monitor the progress of chemical reactions by measuring the concentrations of reactants and products in real-time.

Corrosion Control: Ion chromatograph helps detect corrosive ions, such as chloride and sulfate, in process streams, enabling timely intervention to prevent equipment damage.

Water and Steam Analysis: In power plants and refineries, Ion chromatograph is used to analyze boiler feedwater, steam condensate, and cooling water for ionic contaminants that can cause scaling and corrosion.
