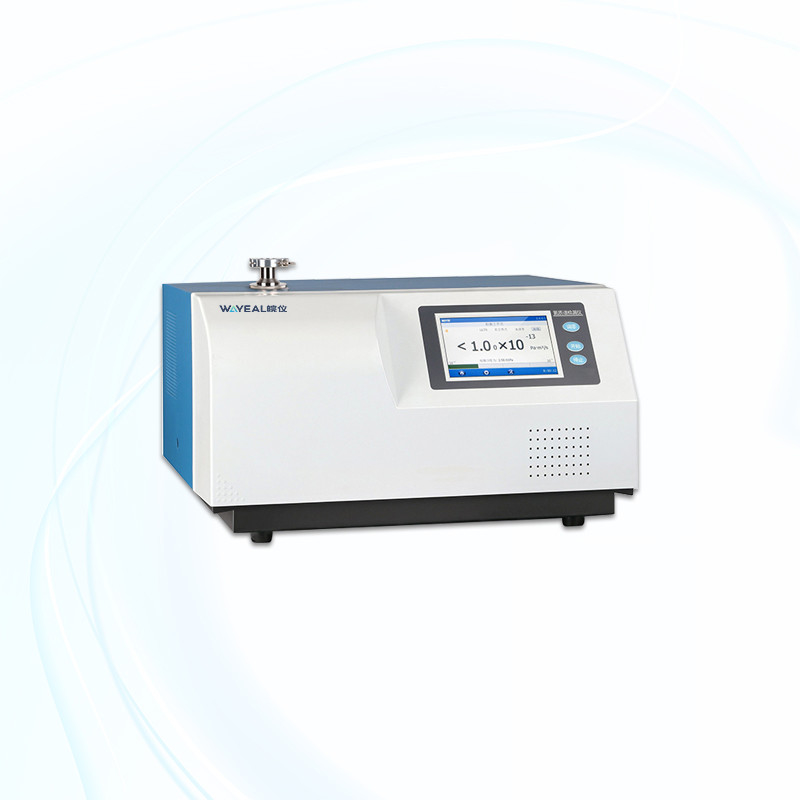

Product Description of Helium Leak Detector:
Whether you're in the automotive, HVAC, or aerospace industry, this Helium leak detector is perfect for identifying even the tiniest leaks. With a mini leak detection rate of 2.5*10-9 Pa.m3/s in sniffer mode, you can be sure that no leak goes undetected. Additionally, the device can handle a maximum allowable leak detection pressure of 1500Pa.
Technical Parameters of SFJ-261:
| roduct Name |
Helium Leak Detector |
| Diamension |
592 x498 x370mm |
| Operating temperature |
0~40°C |
| Detectable Quality |
2, 3, 4 (H2, He3, He4) |
| User Interface |
7inch Color Touch Screen |
| Detection Method |
Helium Leak Detection |
| Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode |
5*10-13 Pa·m3/s |
| Communication Interface |
RS232/485, USB*2 |
| Max Allowable Leak Detection Pressure (Pa) |
1500 |
| Ion Source |
2pcs, Iridium Coated Yttrium Oxide, Automatic Switching |
| Main Features |
Mass Spectrometer Leak Detector, Helium mass spectrometer Leak Detector, helium leak testing |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode |
5*10-9 Pa·m3/s |
| Start Time |
2min |
| Leak Detection Port |
DN25KF |
| Power |
AC220V, 50Hz/60Hz |
| Language |
Chinese/English |
Applications of Helium Leak Detector:
The Wayeal Helium Leak Detector is suitable for a variety of applications, including but not limited to the following:
- Automotive and aerospace industry
- Semiconductor manufacturing
- Pharmaceutical and medical device manufacturing
- Petrochemical industry
- Research and development facilities
With its high sensitivity and accuracy, the Wayeal Helium Leak Detector is an essential tool for industrial vacuum detection and helium leak detection systems. It is easy to use and provides reliable results, making it ideal for detecting leaks in various industrial applications. Whether it is for routine maintenance or troubleshooting, this product can help you identify and locate leaks quickly and efficiently.
