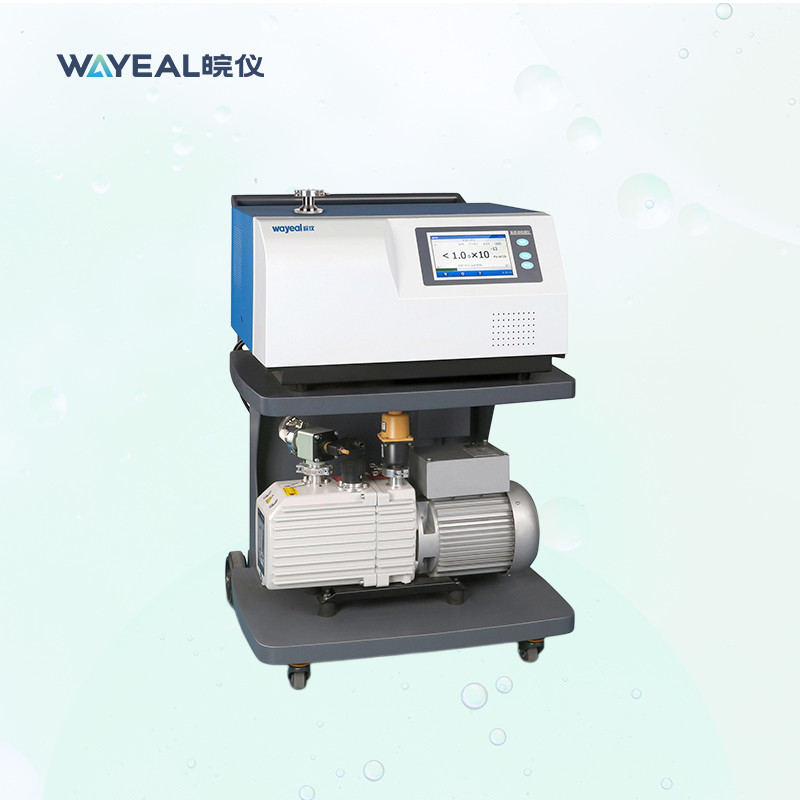

7inch Color Touch Screen Vaccum Helium Leak Detector For 1s Response Time
| Communication Interface: | RS232/485, LAN | Start Time (min): | ≤1.58min |
| Leak detection port: | DN25KF | Response Time(s): | <1s |
| Detection Method: | Helium Mass Spectrometer | I/O Input output interface: | 8 Inputs, 8 Outputs |
| Leak rate display: | Numbers, Bar Charts, Graphs | Product Name: | Helium Leak Detector |
| High Light: | User-Friendly Detection Vaccum Leak Detector,1s Response Time Vaccum Leak Detector,Vaccum Leak Detector With Touch Screen |
||
The Helium Leak Detector is a high-performance industrial vacuum detection instrument that is specially designed for detecting small leaks in vacuum systems. The product is available in both Chinese and English language options, making it suitable for use in a variety of settings.
Technical Parameters of SFJ-231 Helium Leak Detector
| Product Name | Helium Leak Detector SFJ-231 |
| Diamension | 645*678*965mm |
| Operating temperature | 0~40°C |
| Detectable Quality | 2, 3, 4 (H2, He3, He4) |
| User Interface | 7inch Color Touch Screen |
| Detection Method | Helium Leak Detection |
| Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode | 5*10-13 Pa·m3/s |
| Communication Interface | RS232/485, USB*2 |
| Max Allowable Leak Detection Pressure (Pa) | 1500 |
| Ion Source | 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching |
| Main Features | Mass Spectrometer Leak Detector, Helium mass spectrometer Leak Detector, helium leak testing |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode | 5*10-9 Pa·m3/s |
| Start Time | 2min |
| Leak Detection Port | DN25KF |
| Power | AC220V, 50Hz/60Hz |
| Language | Chinese/English |
Sniffer Method (Locating leaks by means of positive pressure)
1. Filling the inspected part with helium gas at a certain pressure.
2. The suction gun probe inspects the perimeter of the inspected part.
3. If there is a leak, the helium detector will detect the escaping helium and locate the leak.
Features: locate the leak; no need for a vacuum environment; easy operation
Mini Leak Detection Rate 5*10-13Pa.m3/s Helium Leak Detector With 7 Inch Touchscreen
Technical Specifications of SFJ-16C Helium Leak Detector Product Name Helium Leak Detector SFJ-16C Diamension 755*467*1180mm Operating temperature 0~40°C Detectable Quality 2, 3, 4 (H2, He3, He4) User Interface 7inch Color Touch Screen Detection Method Helium Leak Detection Mini Leak Detection Rate...
24V Modular Vacuum Helium Mass Spectrometer Leak Detector
Modular Leak Detector Vacuum Helium Leak Tester Detector Introduction of Helium Leak Detector The modular helium mass spectrometer leak detector adopts modular structure design, small size, light weight, easy system integration, widely used in various automated assembly lines. It is characterized by ...
Vacuum Helium Leak Testing Machine Mass Spectrum Gas Detector 240W
Vacuum He Leak Detector Helium Mass Spectrum Leak Detector at Pump Introduction of Helium Leak Detector The helium mass spectrometer leak detector adopts modular structure design, which is easy for system integration and widely used in various automated assembly lines. Product Parameters SFJ-16M ...
Wayeal Helium Leak Tester Helium Mass Spectrometer Leak Detector Machine
Helium Mass Spectrometer Leak Detector Machine for Semiconductor Electronics Industry Introduction of Helium Leak Detector Helium mass spectrometry leak detector is an instrument for rapid localization and quantitative measurement of leaks in sealed containers. The helium mass spectrometry leak ...
