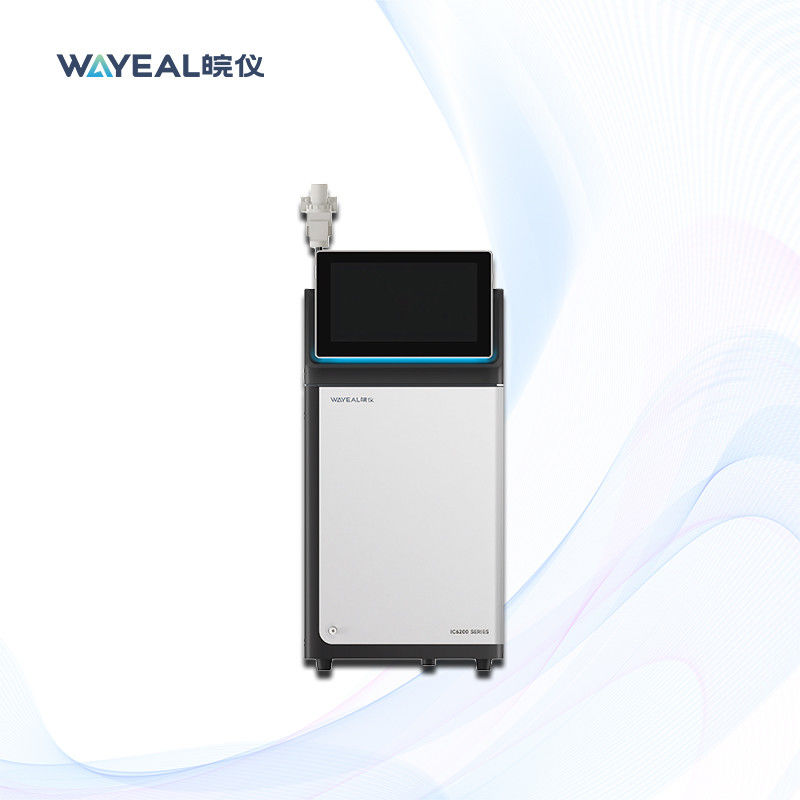

42MPa Ion Chromatography Instrument For Food And Beverage Analysis

Name: 42MPa Ion Chromatography Instrument For Food And Beverage Analysis
Brand: Anhui Wanyi Science and Technology Co., Ltd.
SKU: IC6200
Price: 15,400.00 USD
Availability: InStock

Basic Properties

Place of Origin: Anhui, China

Brand Name: Wayeal

Certification: ISO, CE

Model Number: IC6200

Trading Properties

Minimum Order Quantity: 1 Unit

Price: Negotiate

Payment Terms: T/T

Supply Ability: 30 Units/Month

ion chromatography system

Specifications

Product Name:	IC6200 Ion Chromatography Instrument	Qualitative Repeatability:	≤0.05%
Quantitative Repeatability:	≤0.2%	Power Supply:	220V, 50~60Hz
Pump Material:	PEEK	Flow Rate Range:	(0.001~12.000) ML/min
Pump Head Pressure Resistance:	0~42MPa	Flow Rate Setting Error:	≤ ±0.1%
High Light:	42MPa Ion Chromatography Instrument , 60Hz Ion Chromatography Instrument , Ion Chromatography Instrument Analysis Pump

Product Description

Technical Paramaters of Ion Chromatography Instrument

System Parameter
Qualititative Repeatability	≤0.05%
Quantitative Repeatability	≤0.2%
Pump System
Flow Rate (Full PEEK Pump)	(0.001–12.000) mL/min
Pump Head Pressure Resistance	(0–42) MPa
Flow Rate Set Error	≤ ±0.1%
Flow Rate Stability	≤ ±0.1%
Pressure Display Resolution	0.01 MPa
Suppressor
Suppressor Type	Electrolytic self-regenerating membrane suppressor
Constant Current Range	0–500 mA, adjustable in increments of 1 mA
Column Oven
Temperature Range	Ambient +5°C to 85°C
Temperature Stability	±0.01°C
Compatibility	Compatible with 250 mm and 150 mm length columns

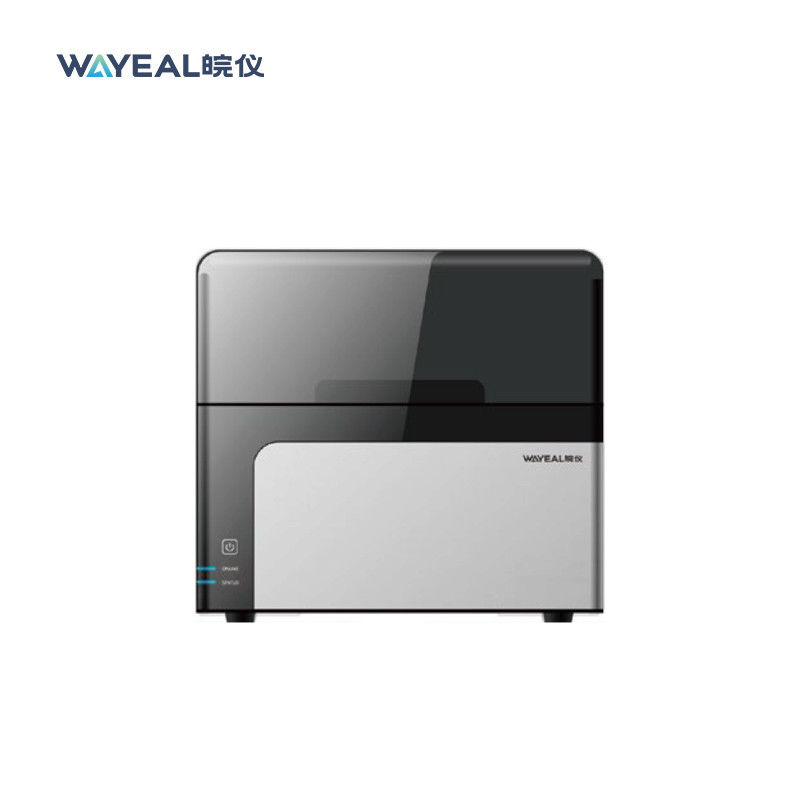

AS2800 Series Autosampler
Quantitative Repeatability	< 0.5% RSD (full-loop injection)
Sample Positions	48 positions / 11 positions
Wash Ports	2 ports (fine wash and coarse wash)
Operating Temperature	10–40°C
Vial Types	5mL/ 100mL
Injection Volume	10 µL – 4000 µL (depending on sample loop size)
Single Injection Cycle Time	Approx. 20s (depending on wash time and injection volume)
Injection Mode	Full-loop injection

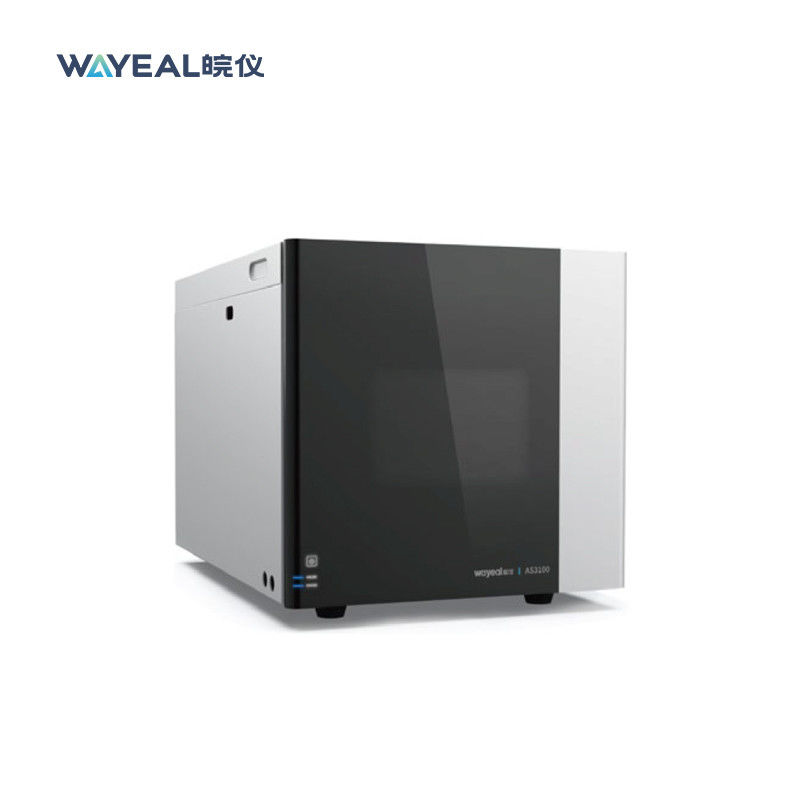

AS3110 Series Autosampler
Sample Capacity	64/120 positions
Cooling Temperature Range	4–30°C
Repeatability	< 0.3% RSD (full-loop injection, injection volume > 5 µL)
Syringe Specifications	Standard: 500 µL; Optional: 250 µL, 1000 µL, 2500 µL
Sample Loop Specifications	Standard: 100 µL; Optional: 25 µL, 50 µL, 200 µL
Carryover (Cross Contamination)	< 0.01%

System configuration of IC6200 Ion Chromatography Instrument

Pump: Full PEEK pump head, resistant to acids, alkalis and reversed-phase organic solvents.

Detector: Conductivity detector, UV detector and Amperometric detector are optional, with high sensitivity to detect ion concentration.

Column: self-developed anion and cation chromatographic columns, guard columns, for the separation of different ions.

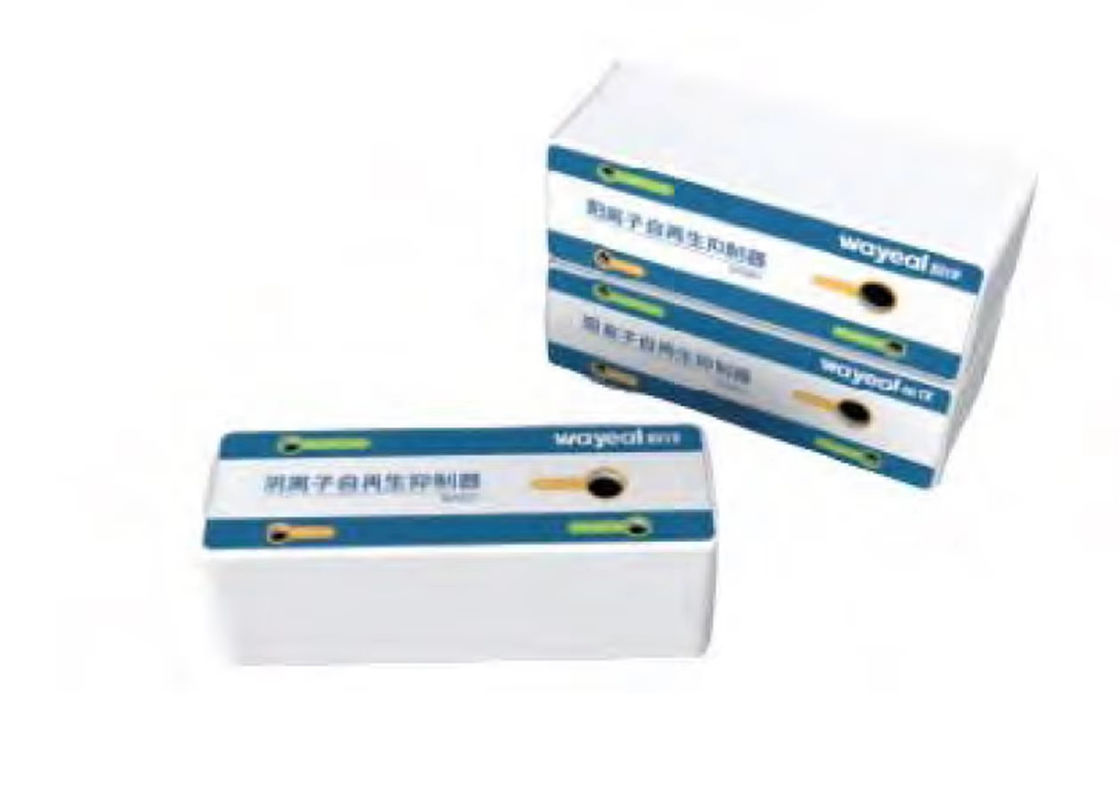

Suppressor: Electrolyte auto-regeneration membrane suppressor, reduces background conductivity, increases detection sensitivity, reagent-free.

Software: SmarLab Chromatography Data System for instrument control, data acquisition and analysis.

Applications of Ion Chromatography Instrument in the Environmental Industry

Water Quality Monitoring: Analysis of anions (e.g., nitrate, phosphate, sulfate, chloride) and cations (e.g., sodium, potassium, calcium, magnesium) in drinking water, wastewater, surface water, and groundwater.

Air Quality Monitoring: Determination of ionic species in particulate matter (PM2.5, PM10) and rainwater for acid rain studies.

Soil Testing: Determines the anion and cation content of soluble salts in the soil, assesses the degree of soil salinization, and guides agricultural production.
