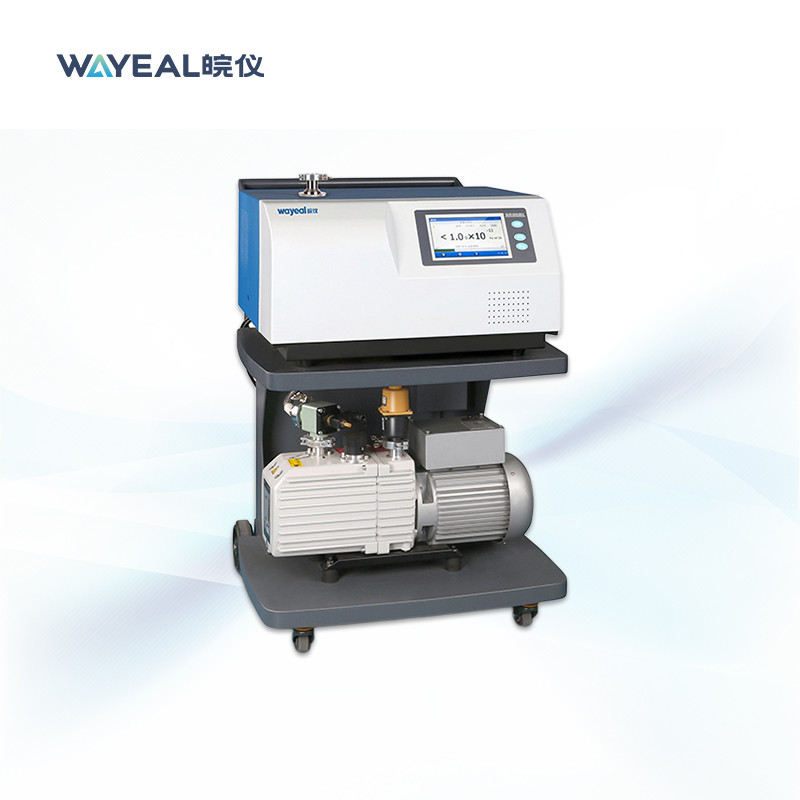

Advanced Helium Leak Detector with Sniffer and Spray Gun

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-231
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T,VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
User Interface: 7inch Color Touch Screen MES Interface: Standard
Communication Interface: RS232/485, LAN Detection Method: Helium Mass Spectrometer
Response Time(s): <1s Ion Source: 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Detectable Quality: 2, 3, 4 (H2, He3, He4) Leak detection port: DN25KF
High Light:

Advanced Helium Leak Detector

,

Yttrium Oxide Helium Leak Detector

,

Iridium Coated Helium Leak Detector
Product Description

Technial Parameters of SFJ-231 Helium Leak Detector

Product Name Helium Leak Detector SFJ-231
Diamension 645*678*965mm
Operating temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4)
User Interface 7inch Color Touch Screen
Detection Method Helium Leak Detection
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Communication Interface RS232/485, USB*2
Max Allowable Leak Detection Pressure (Pa) 1500
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Main Features Mass Spectrometer Leak Detector, Helium mass spectrometer Leak Detector, helium leak testing
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa·m3/s
Start Time 2min
Leak Detection Port DN25KF
Power AC220V, 50Hz/60Hz
Language Chinese/English

Helium mask method(Tests whether helium can enter the inspected part or not)

1. The inside of the inspected part is connected to the helium detector and pumped.

2. The hood is filled with helium.

3. If there is a leak, the detection gas enters the inspected part and the leak is detected

Features: highly automated operation is possible; high sensitivity; high output; highly repeatable

Advanced Helium Leak Detector with Sniffer and Spray Gun
