Advanced Vacuum Helium Leak Detector for HVAC Industry

Advanced Vacuum Helium Leak Detector for HVAC Industry

Advanced Helium Leak Detector

Interface 8/8 Helium Leak Detector

Chinese Helium Leak Detector

Place of Origin:

Anhui, China

Brand Name:

Wayeal

Certification:

CE

Model Number:

SFJ-231

Contact Us
Request A Quote
Product Details
Start Time (min):
≤1.58min
Leak Detection Port:
DN25KF
Max Allowable Leak Detection Pressure (Pa):
1500Pa
I/O Input Output Interface:
8 Inputs, 8 Outputs
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode:
2.5*10-9 Pa.m3/s
Communication Interface:
RS232/485, LAN
Diamension:
645*678*965mm
Language:
Chines/English
Highlight:

Advanced Helium Leak Detector

,

Interface 8/8 Helium Leak Detector

,

Chinese Helium Leak Detector

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiate
Packaging Details
Wooden Case
Delivery Time
35 days
Payment Terms
T/T, VISA
Supply Ability
200 Units/Month
Product Description

Technical Parameters of SFJ-231 Helium Leak Detector

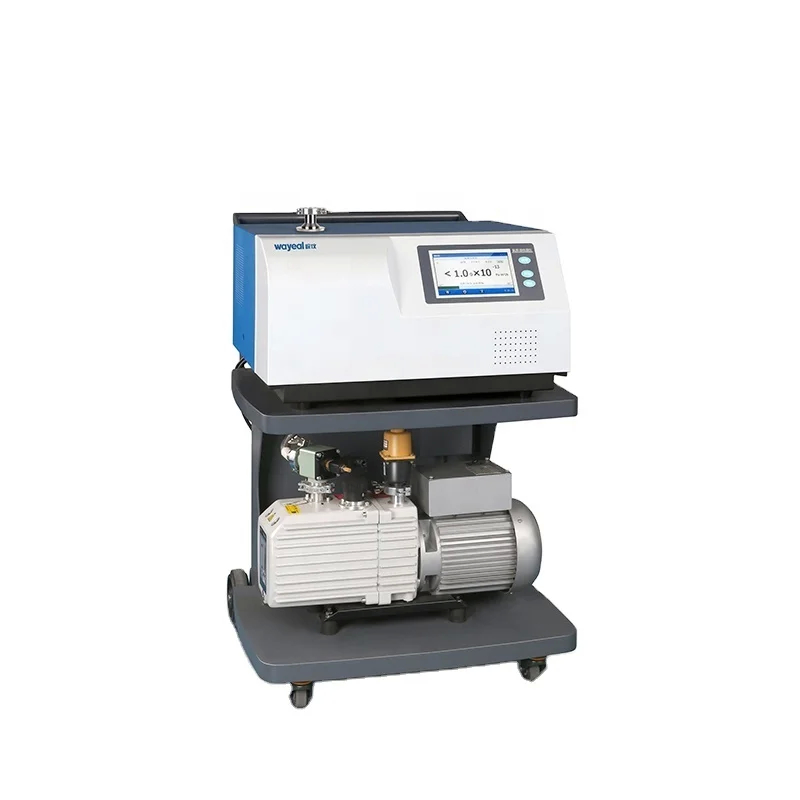

Product Name Helium Leak Detector SFJ-231
Diamension 645*678*965mm
Operating temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4)
User Interface 7inch Color Touch Screen
Detection Method Helium Leak Detection
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Communication Interface RS232/485, USB*2
Max Allowable Leak Detection Pressure (Pa) 1500
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Main Features Mass Spectrometer Leak Detector, Helium mass spectrometer Leak Detector, helium leak testing
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa·m3/s
Start Time 2min
Leak Detection Port DN25KF
Power AC220V, 50Hz/60Hz
Language Chinese/English

Application Industries of Helium Leak Detector:

Helium leak detection is an essential process for various industrial fields, including aerospace, automotive, and HVAC systems. Wayeal helium leak detector is an excellent product for detecting leaks in these fields. It is also suitable for vacuum leak detection devices in laboratories and research facilities.

Some of the product application occasions and scenarios for Wayeal SFJ-231 include:

  • Aerospace industry: detecting leaks in aircraft fuel systems, hydraulic systems, and air conditioning systems
  • Automotive industry: detecting leaks in engine components, fuel systems, and air conditioning systems
  • HVAC industry: detecting leaks in refrigeration systems and air conditioning systems
  • Laboratories and research facilities: detecting leaks in vacuum systems and other critical equipment

In summary, Wayeal SFJ-231 is an efficient and reliable helium leak detection system that is suitable for various industrial fields. It is an ideal product for detecting leaks in aerospace, automotive, and HVAC systems, as well as vacuum leak detection devices in laboratories and research facilities.
