1500Pa Helium Leak Detector With Response Time Dual Ion Source And Multilingual Interface

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-231
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T,VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Product Name: Helium Leak Detector Operating temperature: 0~40°C
Detection Method: Helium Mass Spectrometer Start Time (min): ≤1.58min
Leak detection port: DN25KF Ion Source: 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Response Time(s): <1s Language: Chines/English
High Light:

Dual Ion Source Helium Leak Detector

,

Multilingual Interface Helium Leak Detector

,

1500Pa Helium Leak Detector
Product Description

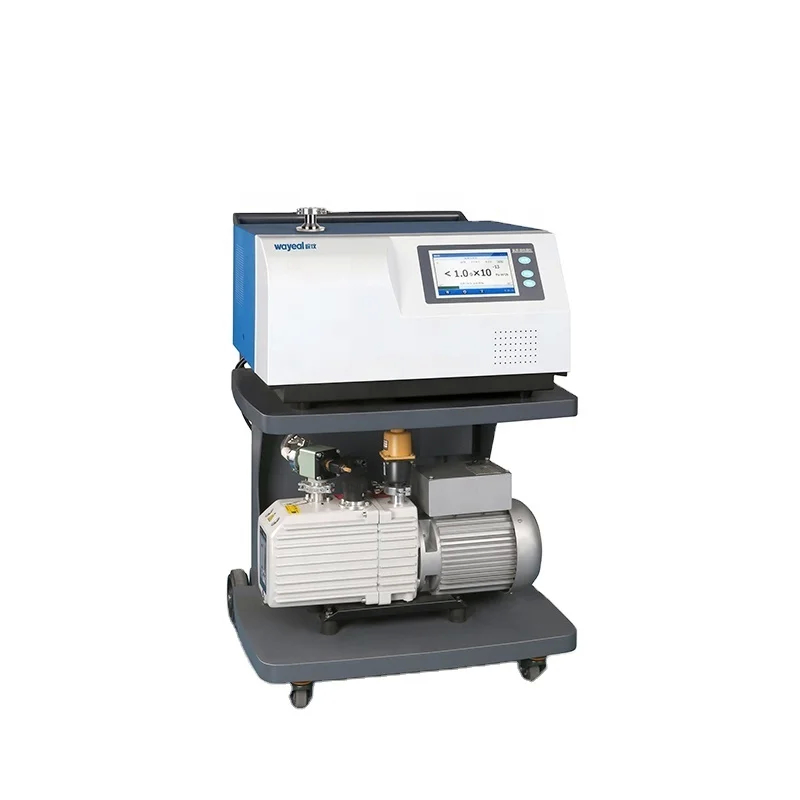

Technical Data of SFJ-231 Helium Leak Detector

Product Name Helium Leak Detector SFJ-231
Diamension 645*678*965mm
Operating temperature 0~40°C
Detectable Quality 2, 3, 4 (H2, He3, He4)
User Interface 7inch Color Touch Screen
Detection Method Helium Leak Detection
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Communication Interface RS232/485, USB*2
Max Allowable Leak Detection Pressure (Pa) 1500
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Main Features Mass Spectrometer Leak Detector, Helium mass spectrometer Leak Detector, helium leak testing
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa·m3/s
Start Time 2min
Leak Detection Port DN25KF
Power AC220V, 50Hz/60Hz
Language Chinese/English

Application of Helium Leak Detector

Helium mass spectrometer leak detectors, with their high sensitivity and detection accuracy, are used in almost every important application in every industry.
