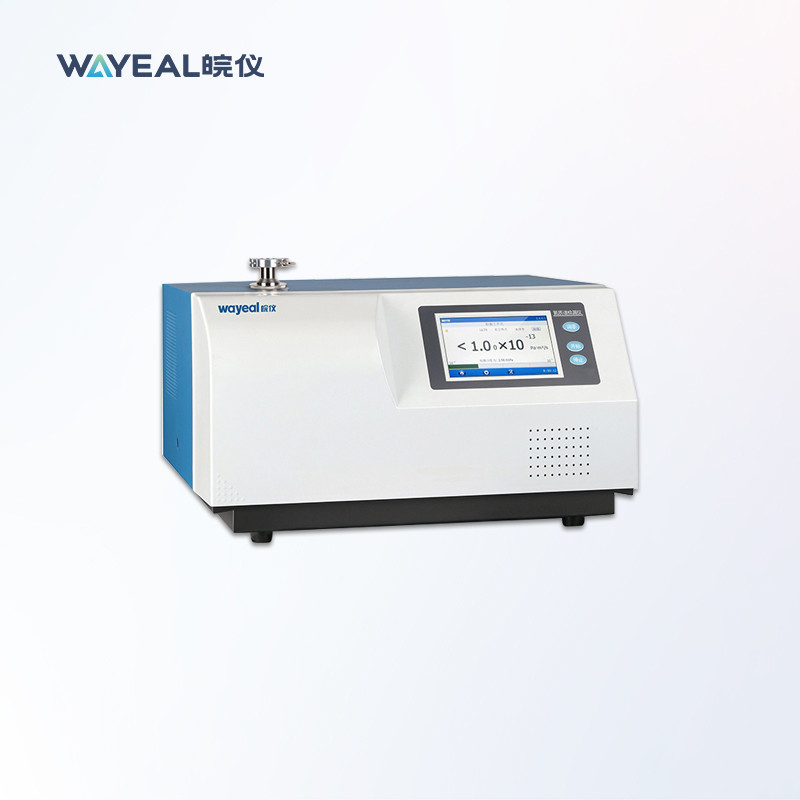

DN25KF Detection Port Helium Leak Detector With RS232 Communication Interface

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-261
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
I/O Input output interface: 8 Inputs, 8 Outputs Diamension: 592mm * 498mm *370mm
Start Time (min): ≤2min Response Time(s): <1s
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode: 5*10-13 Pa.m3/s Leak rate display: Numbers, Bar Charts, Graphs
Communication Interface: RS232/485, LAN Leak detection port: DN25KF
High Light:

RS232 Helium Leak Detector

,

DN25KF Helium Leak Detector

,

RS232 Communication Interface Helium Leak Detector
Product Description

Description of Helium Leak Detector:

A helium leak detector also called a helium leak tester is an imperative to ensure no helium gas leaks of the precious gas exists in many instruments. There are 8 types of helium leak detection method, there are Spray Method, Vacuum Hood Method, Sniffer Method, Pressure Accumulation Method, Suction Cup Method, Bell Jar Method, Bombing Method, and Arbitrary Pressure Method.



Technical Parameters of Helium Leak Detector:

Product Name Helium Leak Detector SFJ-261
Minimum Detectable Leak rate (Pa. m3/s)/ Vacuum Mode 5.0*10-13 Pa·m3/s
Minimum Detectable Leak Rate (Pa.m3/s) / Sniffer Mode 5.0*10-9 Pa·m3/s
Maximum Detectable Leak Rate (Pa) 1500Pa
Respone Time (s) ＜1
Startup Time (min) ≤2
Detectable Quality 2,3,4(H2 , He-3, He-4)
HMI 7inch Color LCD Touch Screen
Ion Source 2pcs, Iridium coated yttrium oxide, automatic switching
Backing Pumps Rotary Vane Vacuum Pumps
I/O Input/ Output Interface 8 Inputs, 8 Outputs
Communication Interface RS232/485, USB*2
MES Interface Standard
Diamensions (W)*(D)*(H), mm 592mm*498mm*370mm
Leak Detection Port DN25 KF
Power Supply AC220V, 50Hz/60Hz
Operating Temperature 0~40°C
Language Chinese/English
Leakage Rate Display Figure, Bar Chart, Curve Chart


Applications of Helium Leak Detector:

This product is ideal for industries that require vacuum detection, its widely used in industries such as aerospace, automotive, semiconductor manufacturing, welding, diving, rocket propulsion, cryogenics, MRI, processing, meteorology, and research & development, these detectors play a vital role in maintaining the proper functioning and reliability of critical equipment.



Optional Accessories of Helium Leak Detector:

DN25KF Detection Port Helium Leak Detector With RS232 Communication Interface 0
