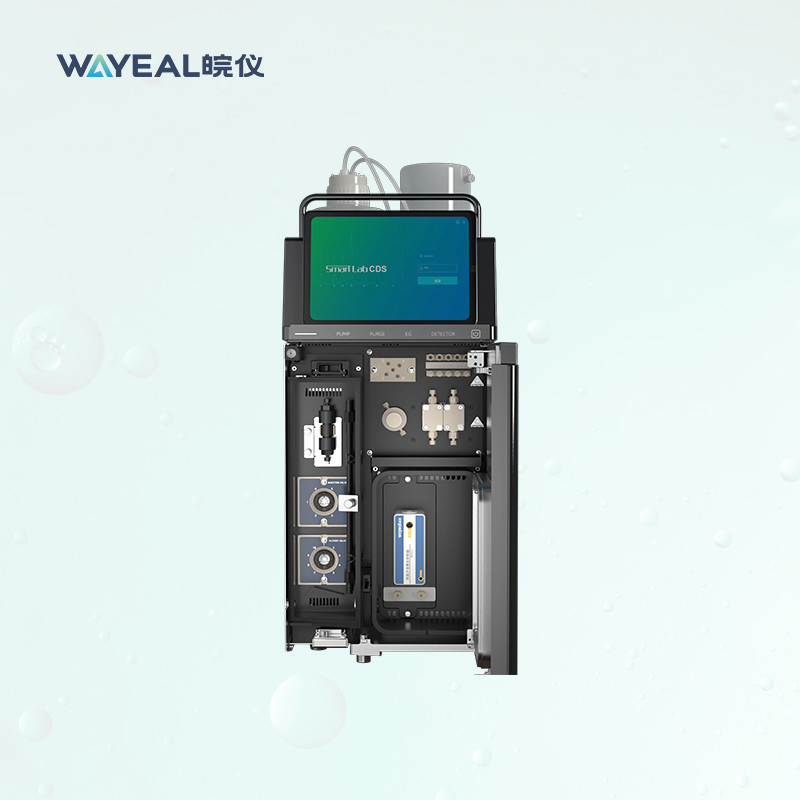

Description of IC6300 Ion Chromatography Instrument:
The Ion Chromatography Instrument is a versatile and reliable instrument that can meet the needs of a wide range of analytical applications. With its advanced features and capabilities, it is the perfect choice for anyone who requires accurate and reliable results, every time. Our Ion Chromatography Instrument is versatile and can be used in a variety of settings. Whether you are working in a research laboratory, a quality control setting, or a production facility, this instrument is suitable for you. The IC6300 is designed for the detection of ions in various samples, including water, food, and beverages and etc. It is perfect for analyzing anions, cations, and organic acids in complex matrices.
Technical Parameters of Ion Chromatography Instrument:
|
IC6300 Reagent-free Intelligent Ion Chromatography Instrument 42MPa
|
| Product Name |
Ion Chromatography Instrument |
| Working Conditions |
|
| Working Power |
220V, 50Hz |
| System Parameters |
|
| Qualitative Repeatability |
≤1% |
| Quantitative Repeatability |
≤1% |
| Pump System |
|
| Flow Rate |
0.001～15.000mL/min |
| Pressure Range |
0~42MPa |
| Flow Rate Setting Error |
＜0.2% |
| Flow Rate Stability |
＜0.2% |
| Eluent |
|
| Flow Rate Range |
0.001~3.000ml/min |
| Eluent Concentration Range |
KOH/MSA 0.1~100.0mM |
| Accuracy of Concentration |
0.1mM |
| Max Working Pressure |
21Mpa (3000psi) |
| Autosampler (AS2800 series) |
|
| Quantitative Repeatability |
Full loop injection ＜0.5%RSD |
| Linearity |
＞0.9995 |
| Injection Positions |
48 Positions |
| Working Temperature |
10~40°C |
| Sample Bottle |
5mL/100mL |
| Injection Volume |
10μL~400μL |
| Autosampler (AS3110 Series) |
|
| Injection Positions |
120/64/92 positions for optional |
| Cooling Temperature |
4~30°C |
| Injector |
Standard 500μL, options 250μL, 100μL, 2500μL |
| Column Oven |
|
| Temperature Range |
Room temperature, ＋5℃~70℃ |
| Temperature Control Stability |
≤0.1°C |
| Temperature Setting Error |
0.05°C |
| Column Capacity |
250mm and 150mm |

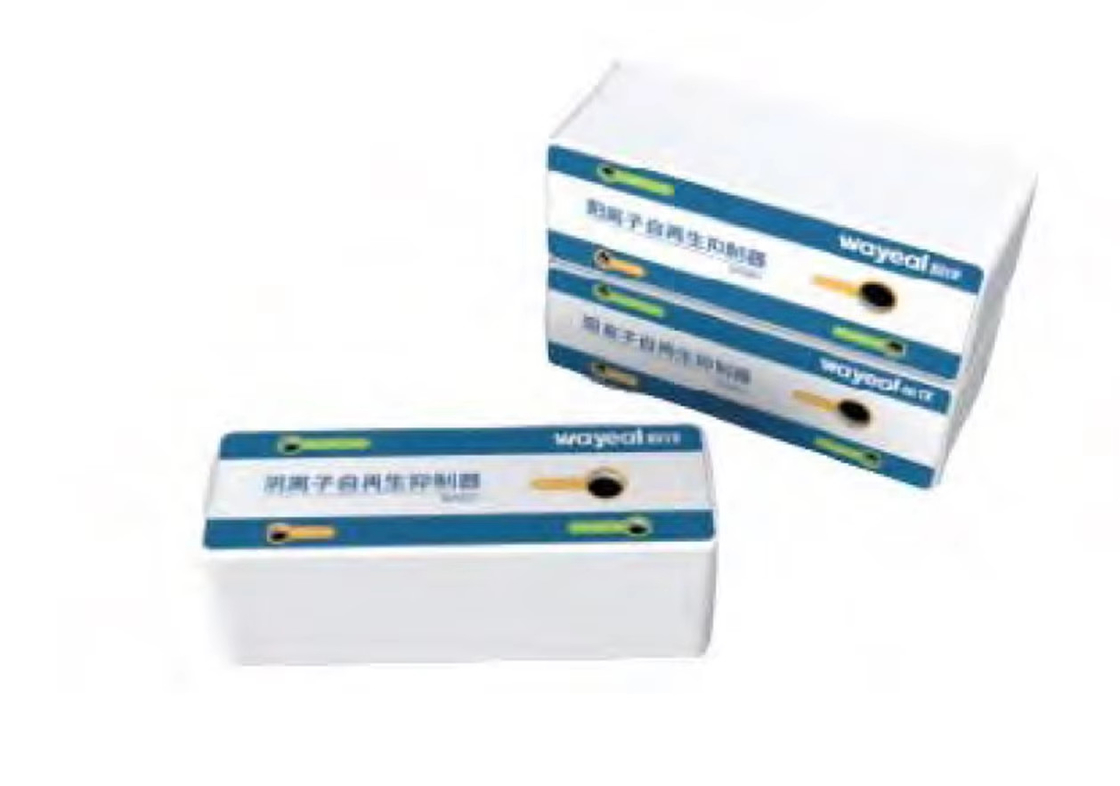

| Suppressor |
|
| Dead Volume |
50μL |
| Suppression Capacity |
170ueq/min |
| Pressure Resistance |
3Mpa |
| Conductivity Detector |
|
| Baseline Noise |
≤0.0005μS/cm |
| Baseline Drift |
≤0.0005μS·cm-1/30min |
| Min Detection Concentration(Cl) |
≤0.0005μg/mL |
| Min Detection Concentration (Li) |
≤0.0002μg/mL |
| Cell Volume |
≤0.4μL |
| Detector Resolution |
0.00238nS/cm |
| Temperature Setting Error |
±0.01°C |
| Ampere Detector |
|
| Drive Voltage Range |
-2.048V---2.048V |
| Drive Voltage Resolution |
0.001V |
| Single Input Range |
Integral mode, 50pc---200uC |
| DC mode |
1pA---74uA |
| Cell Volume |
＜0.2μL |
| Min Detection Concentration |
I: 0.001μg/mL |
Support and Services of Ion Chromatography Instrument:
Our Ion Chromatography Instrument product comes with comprehensive technical support and services to ensure the smooth operation and maintenance of the instrument. Some of the technical support and services we offer include:
- Installation and commissioning of the instrument
- Training for operators and maintenance personnel
- Troubleshooting assistance
- Repair and maintenance services
- Calibration and validation services
- Technical documentation and manuals
Our team of highly skilled and experienced technicians are available to provide support and services both on-site and remotely. We are committed to ensuring the optimal performance of your Ion Chromatography Instrument and will work closely with you to address any technical issues or concerns.
