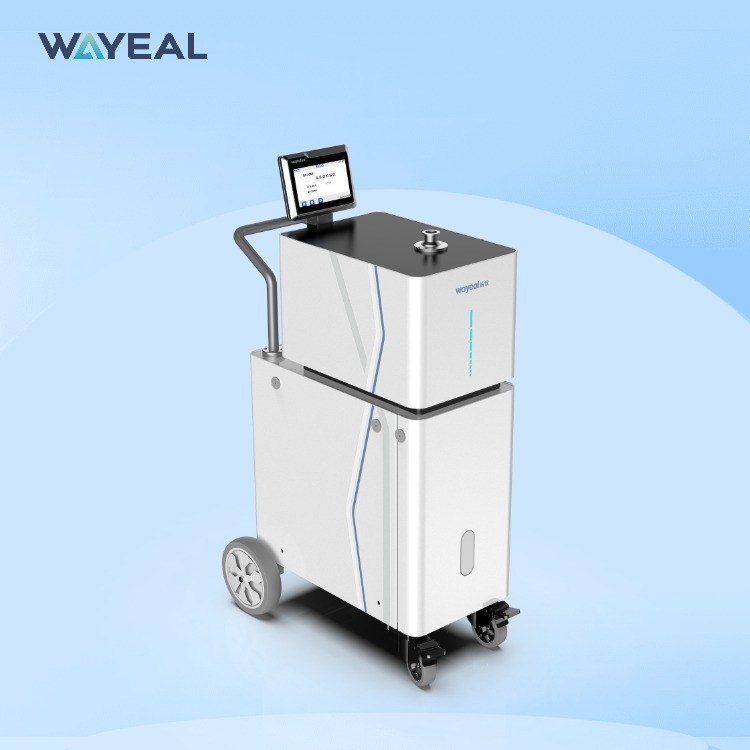

SFJ-16C Accurate Leak Detection Helium Leak Detector With 7inch Color Touch Screen

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Max Allowable Leak Detection Pressure (Pa) 1800Pa Detection Method Helium Mass Spectrometer
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Detectable Quality 2, 3, 4 (H2, He3, He4)
I/O Input Output Interface 8 Inputs, 8 Outputs Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
MES Interface Standard Start Time (min) ≤1.58min
High Light

Accurate Leak Detection Helium Leak Detector

,

Touch Screen Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



The Mass Spectrometer Leak Detector is a complete system for localization and measuring of leaks inside or outside of a product. This method uses so called tracer gas – helium, which is used to fill up the product connected to the detector. Helium leaks in/out of the tested product in to the detector where its partial pressure is measured and displayed on a screen.




Technical Parameters of Helium Leak Detector:



SFJ-16C Accurate Leak Detection Helium Leak Detector with 7inch Color Touch Screen

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5.0*10 -13 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 2.5*10-9 Pa.m3/s
Startup Time (min) ≤2
Diamension 475*714*1168mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English



Applications of Helium Leak Detector:



The helium leak detector is widely used in different industries, including but not limited to oil & gas Industry, paper-making indusutry, biopharmaceutical industry, chemical industry, vacuum equipments, electricity industry, food industry, mining industry semiconductor industry, aerospace Industry, Laboratory & Research Industry, Environment Industry, Package & Printing Industry, Vacuum Delievery Industry, Aquaculture industry, refrigeration industry. It is an essential tool for ensuring the safety and reliability of various systems and devices, such as heat exchangers, vacuum systems, and gas pipelines.





Methods of Helium Leak Detection
