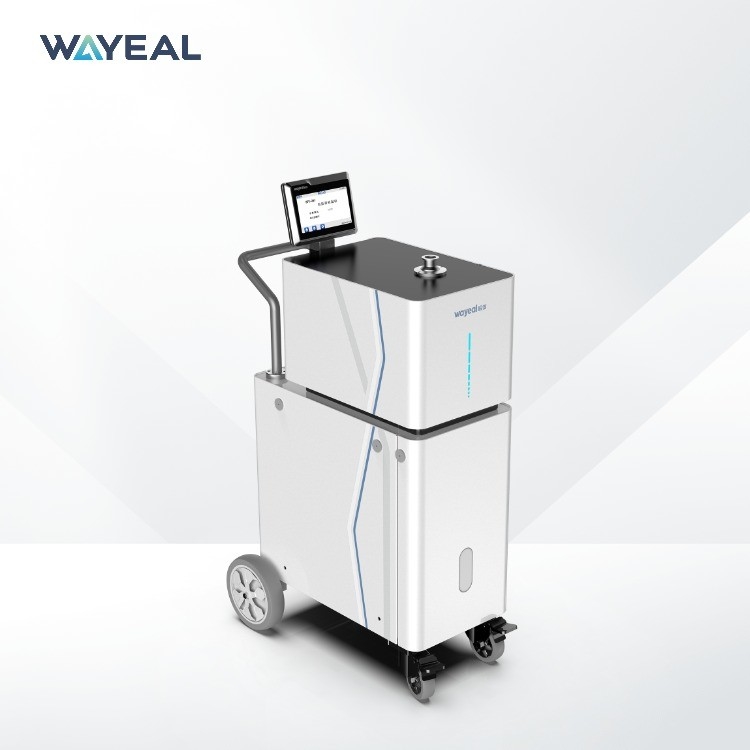

LAN Communication Interface Vaccum Helium Leak Detector Machine 220V

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Response Time(s) <1s Product Name Helium Leak Detector
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Detectable Quality 2, 3, 4 (H2, He3, He4) Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF Diamension 475 * 714 *1168mm
High Light

LAN Communication Interface Helium Leak Detector

,

Vaccum Helium Leak Detector

,

220V Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium leak testing is an advanced and highly effective method for detecting and quantifying leaks in sealed or pressurized components. Wayeal, a professional helium leak detector manufacturer in vacuum technology, offers state-of-the-art solutions for helium leak testing, providing numerous positive benefits to industries requiring precise and reliable leak detection.



Technical Parameters of Helium Leak Detector:

LAN Communication Interface Vaccum Helium Leak Detector Machine 220V

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5.0*10 -13 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 2.5*10-9 Pa.m3/s
Startup Time (min) ≤2
Diamension 475*714*1168mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English


Applications of Helium Leak Detector:



The SFJ-16C is ideal for a range of occasions and scenarios, including but not limited to:

1. Industrial Manufacturing - The SFJ-16C can be used to detect leaks in pipelines, valves, tanks, and other components used in various industries such as petrochemicals, pharmaceuticals, and manufacturing.



2. Automotive Industry - The SFJ-16C can be used to detect leaks in engines, transmissions, radiators, and air conditioning systems of vehicles, ensuring the safety and reliability of the vehicles.



3. Aerospace Industry - The SFJ-16C is used to detect leaks in fuel tanks, hydraulic systems, and air conditioning systems in airplanes and spacecraft, ensuring the safety and reliability of the aircraft.



The SFJ-16C Helium Mass Spectrometer Leak Detector is an essential tool for businesses and industries that require accurate and efficient leak detection. It is a high-quality product that delivers reliable results every time.
