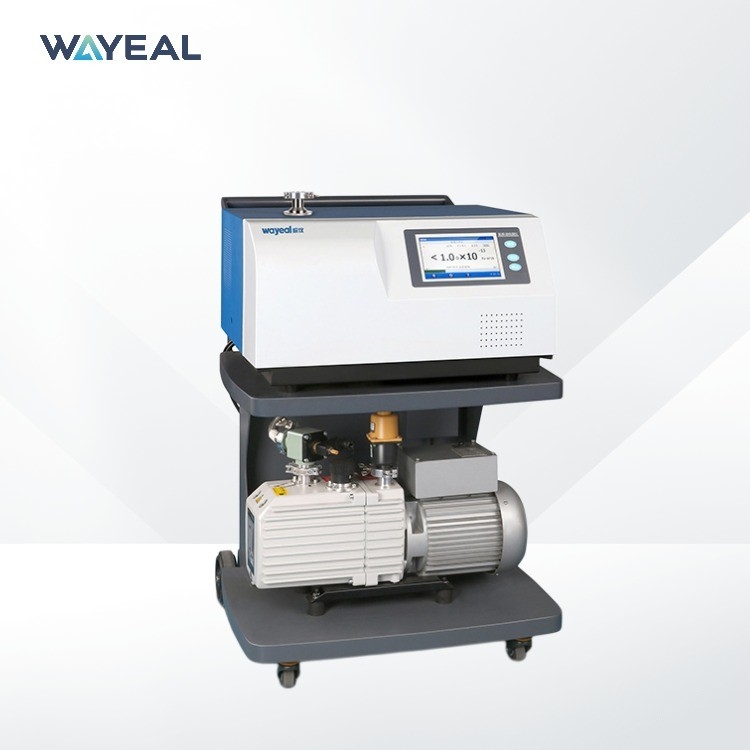

SFJ-231 Self-developed Vaccum Leak Detection System Helium Leak Detector

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-231
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Response Time(s): <1s Product Name: Helium Leak Detector
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode: 5*10-9 Pa.m3/s Ion Source: 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Detectable Quality: 2, 3, 4 (H2, He3, He4) Detection Method: Helium Mass Spectrometer
Leak detection port: DN25KF Diamension: 645 * 678 *965mm
High Light:

Fast Response Helium Leak Detector

,

Self-developed Helium Leak Detector
Product Description

Introduction of Helium Leak Detector:

The helium leak detector is a top-of-the-line vaccum leak detector that is designed to provide users with accurate and reliable leak detection results. Its advanced features, such as its ion sources and leak rate display options, make it an excellent choice for those who demand the highest level of performance from their vacuum leak detection equipment. Whether you are looking to detect leaks in a small laboratory setting or in a large industrial facility, the Helium Leak Detector is the perfect device for the job.

Technical Parameters of Helium Leak Detector:

High Precision Helium Leak Detector Max Allowable Leak Detection Pressure 1500Pa
Leak Detection Port DN25KF
Start Time (min) ≤2
Detectable Quality 2, 3, 4 (H2, He3, He4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5*10-9 Pa.m3/s
Language Chinese/English
Detection Method Helium Leak Detection
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
Product Name Helium Leak Detector
Max Allowable Leak Detection Pressure (Pa) 1500
Response Time(s) <1
Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
User Interface 7inch color touch screen
I/O Input Output 8 Inputs, 8 Outputs
Communication Interface RS232/485, USB*2
MES Interface Standard
Size 645*678*965mm
Leak Detection Port DN25KF
Power AC220V, 50Hz/60Hz
Operating Temperature 0~40°C

Applications of Helium Leak Detector:

The SFJ-231 is ideal for a range of occasions and scenarios, including but not limited to comprehensive vacuum technologies, including vacuum systems, vacuum equipment, materials, analytical equipment, and customer solutions, for various industries.

Methods of Helium Leak Detection

Negative Pressure Method

SFJ-231 Self-developed Vaccum Leak Detection System Helium Leak Detector



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

SFJ-231 Self-developed Vaccum Leak Detection System Helium Leak Detector

Sniffer Method

SFJ-231 Self-developed Vaccum Leak Detection System Helium Leak Detector
