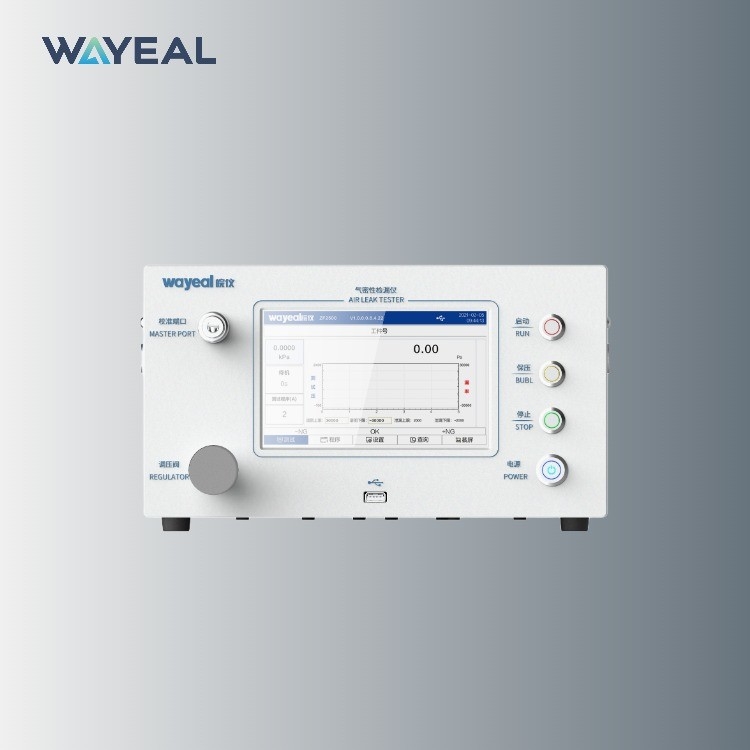

Airtightness Pressure Decay Vaccum Helium Leak Detector Machine

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number LC103V5 LC103V6
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector Sensor Error ±3%F.S.(optional)
DParameter Program Number 64 Groups (1~64) Power Supply AC220V±10%,50Hz
Weight 16KG Test Beat Setting 0 ~999 Seconds, Test Time 1800 Second
High Light

Vaccum Helium Leak Detector

,

Airtightness Helium Leak Detector

,

Pressure Decay Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



Helium leak testing is used to find small leaks or larger leaks in bigger volumes. The helium is used as a tracer gas and its concentration is measured. This guide to helium leak testing should outline the basics of using this leak testing method.





Technical Parameters of Helium Leak Detector:



Airtightness Helium Mass Spectrometer Leak Detector Use in Pressurized Systems

Product Name

Helium Leak Detector

Flow Sensor Display Precision The value can be set to 0 to 4 decimal places
Sensor Range LC103 (V5) 30mL/min~1000mL/min (optional)
  LC101 (V6) 15mL/min~1000mL /min (optional)
Sensor Error ±3%F.S.(optional)
Direct Pressure Display Precision The value can be set to 0 to 4 decimal places
Recommended Test Pressure Range LC103 (V5) Mechanical Pressure Regulating 10~600kPa (Optional)
LC101(V6) Mechanical Pressure Regulating 10~600kPa (Optional
Sensor Error ±0.1%FS.
Display Unit Test Pressure kPa,Mpa,kg/cm2,psi,mbar.bar, Torr,mmH,O,mmHg
Leakage mL/s,mL/min,L/min,Lh,m3/h,Pa/min,g/h,SCCM
Parameter Program Number 64 groups(1~64)
Test Beat Setting 0~999 seconds, test time 1800 seconds
Power Supply AC220V±10%, 50Hz
Test Pressure Source Clean, Dry, Adequate flow, no less than 500KPa and 100KPa above the test pressure source
Overall Diamensions Standard V5 330mm*222mm*448mm
Standard V6 321mm*205mm*560mm
Weight About 16kg




Applications of Helium Leak Detector:



This helium leak detector is perfect for use in various industries such as aerospace, automotive, pharmaceutical, and medical device manufacturing. It is ideal for applications where vacuum leak detection is essential. Wayeal Helium Leak Detector is a reliable and efficient product that is perfect for detecting helium leaks in various industrial applications. Its helium mass spectrometer leak detection method ensures accurate and reliable results, making it a must-have for any industry where vacuum leak detection is essential.





Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

Airtightness Pressure Decay Vaccum Helium Leak Detector Machine 0Helium Hood Method



Airtightness Pressure Decay Vaccum Helium Leak Detector Machine 1



Negative Pressure Method

Airtightness Pressure Decay Vaccum Helium Leak Detector Machine 2



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Airtightness Pressure Decay Vaccum Helium Leak Detector Machine 3



Sniffer Method

Airtightness Pressure Decay Vaccum Helium Leak Detector Machine 4

Airtightness Pressure Decay Vaccum Helium Leak Detector Machine 5Airtightness Pressure Decay Vaccum Helium Leak Detector Machine 6



Airtightness Pressure Decay Vaccum Helium Leak Detector Machine 7
