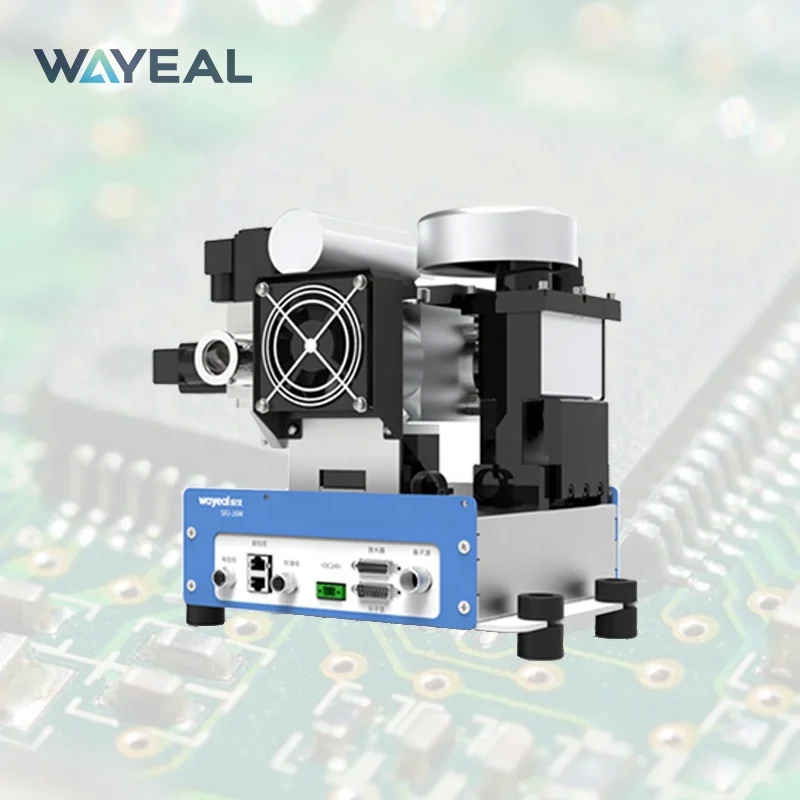

DC24V Sniffer Mode Helium Leak Detector Machine Vacuum Helium Leak Detection Equipment

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-16M
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Product Name: Helium Leak Detector Response Time(s): <1s
I/O Input output interface: 8 Inputs, 8 Outputs Leak detection port: DN16 KF/2pcs
User Interface: 5inch Color Touch Screen Communication Interface: RS232/485, LAN
Ion Source: 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode: 2.5*10-8 Pa.m3/s
High Light:

RS232 Speed Sniffer Leak Detector

,

Iridium Coated Ion Source Leak Detector

,

Touch Screen Speed Sniffer Leak Detector
Product Description

Introduction of Helium Leak Detector:

Helium leak detectors are used to detect and locate leaks in various systems, including vacuum systems, refrigeration systems, and pipelines. They work on the principle of mass spectrometry, which involves ionizing helium atoms and measuring their mass-to-charge ratio to detect the presence of leaks.

Technical Parameters of Helium Leak Detector:

SFJ-16M Helium Leak Detector















Performance Indicators








 Minimum detectable leak rate
(Pa·m3/s)/ vacuum mode		 Vacuum Mode (ULTRA):5.0×10-13 (helium pumping speed >5 l/s)
Vacuum mode (FINE):1.0×10-12 (helium pumping speed 2.5 L /s)
Minimum detectable leak rate
(Pa·m3/s)/ sniffer mode		 5.0×10-8
Response time(s) <1
Startup time(min) ≤95s
Leakage detection range
(Pa·m3/s)		 5.0×10-13~1.0×10-3
Leakage rate display range
(Pa·m3/s)		 1.0×10-13~1.0×10-3
Maximum allowable leak detection pressure(Pa) 1500
Detectable quality 2,3,4(H2 , He3, He4)





















Basic Configuration












 Man-machine interface 5 "color LCD Touch Screen
Ion source 2pcs, iridium coated yttrium oxide, automatic switching
I/O Input/output interface Eight inputs and eight outputs
Communication interface RS232/485,LAN
MES interface Standard
Physical size of instrument
(W)×(D)×(H),mm		 592 * 498 * 370mm
Specifications of leak detection port DN16 KF/2pcs
Power Supply DC24V
Operating temperature 0-40ºC
Power 240W
Display language Both Chinese and English
Leakage rate display Figure, bar chart, curve chart

Applications of Helium Leak Detector:

Helium leak detectors are used in a variety of applications, including vacuum systems, refrigeration and air conditioning systems, and research and development. They are particularly useful for detecting small leaks that would be difficult to locate using other methods. Helium is also non-toxic, non-flammable, and does not react with other substances, making it a safe and clean tracer gas for leak detection.

Methods of Helium Leak Detection (Helium Leak Detector)

Helium Vacuum Method

DC24V Sniffer Mode Helium Leak Detector Machine Vacuum Helium Leak Detection Equipment

Sniffer Method

DC24V Sniffer Mode Helium Leak Detector Machine Vacuum Helium Leak Detection EquipmentHelium Hood Method



DC24V Sniffer Mode Helium Leak Detector Machine Vacuum Helium Leak Detection Equipment
