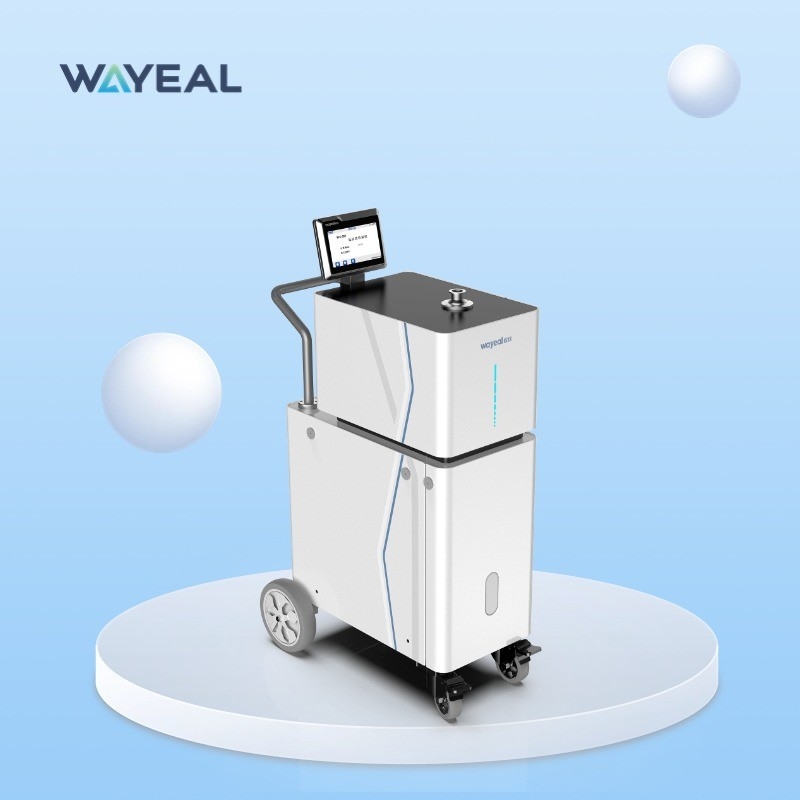

Precision Vaccum Leak Detector 7inch Color Touch Screen Response Time Standard MES Interface

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector Start Time (min) ≤1.58min
Leak Detection Port DN25KF Communication Interface RS232/485, LAN
MES Interface Standard Response Time(s) <1s
I/O Input Output Interface 8 Inputs, 8 Outputs Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s
High Light

Precision Vaccum Leak Detector

,

MES Interface Leak Detector

,

Touch Screen Vaccum Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



The helium leak detector is a versatile product that can be used in various applications such as vacuum systems, refrigeration systems, and many more. The product is highly reliable and efficient, which makes it an excellent choice for industries that require accurate and precise leak detection. The helium leak detection systems are widely used in industries such as aerospace, automotive, electronics, and many more.





Technical Parameters of Helium Leak Detector:



SFJ-16C Precision Helium Leak Detector for Accurate Leak Detection in Industries

Product Name

Helium Leak Detector

Detection Method Helium Mass Spectrometer
Leak Detection Port DN25KF
Leak Rate Display Numbers, Bar Charts, Graphs
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Operating temperature 0~40°C
Max Allowable Leak Detection Pressure (Pa) 1800
Communication Interface RS232/485, LAN
Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 5.0*10 -13 Pa.m3/s
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode 2.5*10-9 Pa.m3/s
Startup Time (min) ≤2
Diamension 475*714*1168mm
Power Supply AC220V, 50Hz/60Hz
Language Chinese/English

Applications of Helium Leak Detector:



The Helium Leak Detector from Wayeal is ideal for a wide range of applications and scenarios. It can be used in the automotive industry for detecting leaks in air conditioning systems, fuel tanks, and other critical components. It can also be used in the aerospace industry for detecting leaks in aircraft fuel systems, hydraulic systems, and other critical components.



The SFJ-16C Helium Leak Detector is also suitable for use in the semiconductor industry for detecting leaks in vacuum systems, as well as in research and development for detecting leaks in test chambers and other equipment.



Overall, the Wayeal SFJ-16C Helium Leak Detector is a reliable and efficient vacuum leak detector that is suitable for a wide range of applications and scenarios. Whether you're in the automotive, aerospace, medical, semiconductor, or research and development industries, this product is an excellent choice for detecting leaks in critical systems and ensuring optimal performance and safety.



Precision Vaccum Leak Detector 7inch Color Touch Screen Response Time Standard MES Interface 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

Precision Vaccum Leak Detector 7inch Color Touch Screen Response Time Standard MES Interface 1

Sniffer Method

Precision Vaccum Leak Detector 7inch Color Touch Screen Response Time Standard MES Interface 2Helium Hood Method



Precision Vaccum Leak Detector 7inch Color Touch Screen Response Time Standard MES Interface 3

Precision Vaccum Leak Detector 7inch Color Touch Screen Response Time Standard MES Interface 4Precision Vaccum Leak Detector 7inch Color Touch Screen Response Time Standard MES Interface 5



Precision Vaccum Leak Detector 7inch Color Touch Screen Response Time Standard MES Interface 6
