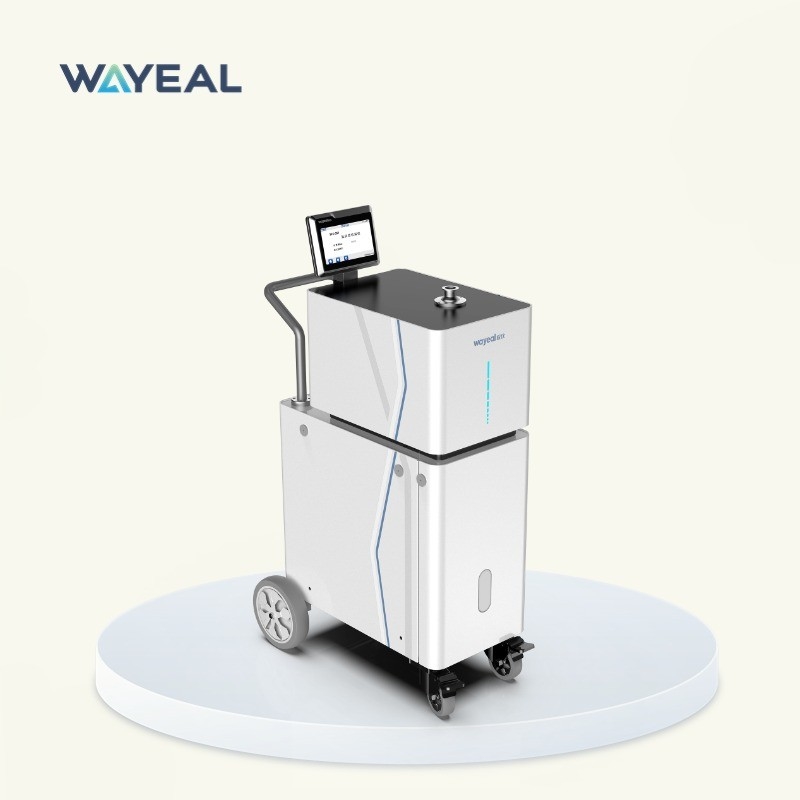

SFJ-16C Vacuum Helium Leak Detection Equipment with Optional Calibration

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector Max Allowable Leak Detection Pressure (Pa) 1800Pa
Mini Leak Detection Rate(Pa.m3/s)/Vaccum Mode 5*10-13 Pa.m3/s Start Time (min) ≤1.58min
Detection Method Helium Mass Spectrometer Leak Detection Port DN25KF
I/O Input Output Interface 8 Inputs, 8 Outputs Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching
High Light

1800Pa Helium Leak Detector

,

Ion Source Switching Helium Leak Detector

,

7inch Touch Screen Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



This helium mass spectrometer leak detector is capable of detecting even the smallest leaks with ease. A helium leak detector works by detecting helium gas that is escaping from a leak in a system. The detector is connected to the system being tested and helium gas is introduced into the system. If there is a leak, the helium gas will escape from the system and be detected by the helium leak detector. The detector will then alert the operator of the leak.





Technical Parameters of Helium Leak Detector:



Product Name Helium Leak Detector
Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Communication Interface RS232/485, LAN
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s
Dimension 755 * 467 * 1180mm
Detectable Quality 2, 3, 4 (H2, He3, He4)
Start Time (min) ≤1.58min
Ion Source 2pcs, Iridium coated yttrium oxide, automatic switching
Backing Pump Rotary Vane Vacuum Pump
Leak Detection Port DN25KF
Power Supply AC220V, 50Hz/60Hz
Operation Temperature 0~40°C
Language English/Chinese


Applications of Helium Leak Detector:



Vacuum systems: Helium leak detectors are used to test the integrity of vacuum systems such as those used in semiconductor manufacturing, aerospace, and research facilities. They are used to detect leaks in vacuum chambers, valves, and other components of the system.


Refrigeration and air conditioning systems: Helium leak detectors are used to detect leaks in refrigeration and air conditioning systems. They are used to locate leaks in compressors, condensers, evaporators, and other components of the system.


Automotive industry: Helium leak detectors are used to test the fuel tanks, radiators, and other components of automobiles. They are used to detect leaks in the fuel system, cooling system, and air conditioning system.



SFJ-16C Vacuum Helium Leak Detection Equipment with Optional Calibration 0



Methods of Helium Leak Detection (Helium Leak Detector)



Helium Vacuum Method

SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 1

Sniffer Method

SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 2Helium Hood Method



SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 3

SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 4SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 5



SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 6
