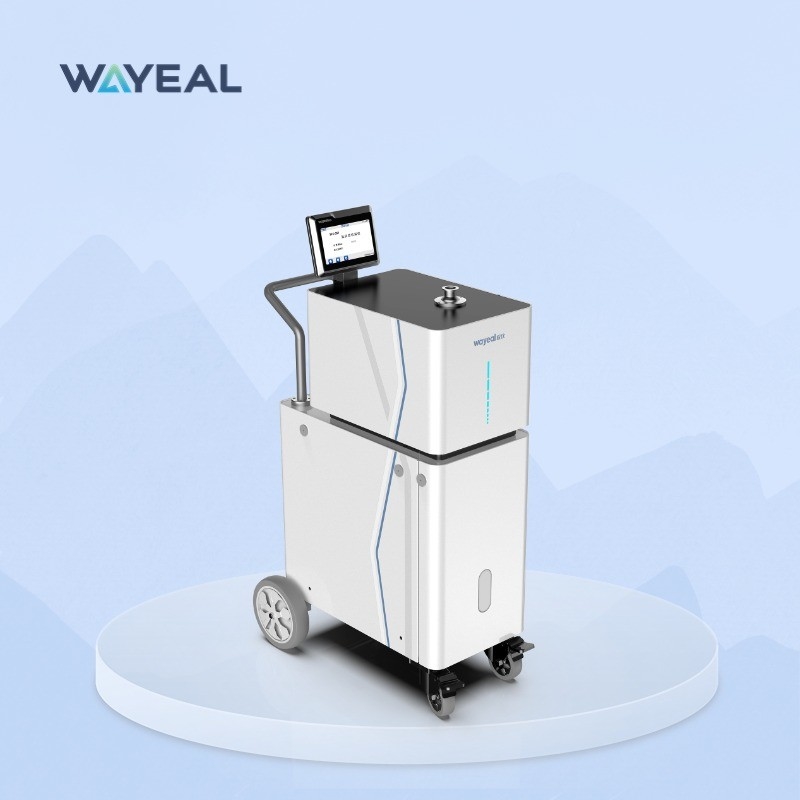

Wayeal SFJ-16C Helium Leak Detection Brands Vacuum Helium Leak Detection Equipment

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-16C
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Product Name: Helium Leak Detector I/O Input output interface: 8 Inputs, 8 Outputs
Diamension: 775 * 467 *1180mm User Interface: 7inch Color Touch Screen
Detection Method: Helium Mass Spectrometer Max Allowable Leak Detection Pressure (Pa): 1800Pa
Response Time(s): <1s Communication Interface: RS232/485, LAN
High Light:

2 Ion Sources Helium Leak Detector

,

Advanced Helium Leak Detector
Product Description

Introduction of Helium Leak Detector:

A helium detector is a type of leak detector that is specifically designed to detect helium gas. The helium leak detector is an essential tool for any industry that requires precise and efficient vacuum leak detection. Its advanced technology, accurate leak rate display, and quick start time make it a valuable addition to any quality control process. With its reliable and easy-to-use design, the Helium Leak Detector is sure to exceed your expectations and provide accurate and reliable results every time.

Technical Parameters of Helium Leak Detector:

Product Name Helium Leak Detector
Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Communication Interface RS232/485, LAN
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s
Dimension 755 * 467 * 1180mm
Detectable Quality 2, 3, 4 (H2, He3, He4)
Start Time (min) ≤1.58min
Ion Source 2pcs, Iridium coated yttrium oxide, automatic switching
Backing Pump Rotary Vane Vacuum Pump
Leak Detection Port DN25KF
Power Supply AC220V, 50Hz/60Hz
Operation Temperature 0~40°C
Language English/Chinese

Applications of Helium Leak Detector:

Helium leak detectors are widely used in various industries to detect and locate small leaks. The most common applications of helium leak detectors include:

Power generation industry: Helium leak detectors are used to test the integrity of power generation equipment such as turbines, generators, and heat exchangers. They are used to detect leaks in the cooling system and other critical components of the equipment.

Battery: In the energy industry, helium leak testing is used to test the integrity of the battery pack, battery housing, and even pouches and cells to prevent leaks and ensure safety.

Methods of Helium Leak Detection (Helium Leak Detector)

Helium Vacuum Method

SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 1

Sniffer Method

SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 2Helium Hood Method



SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 3
