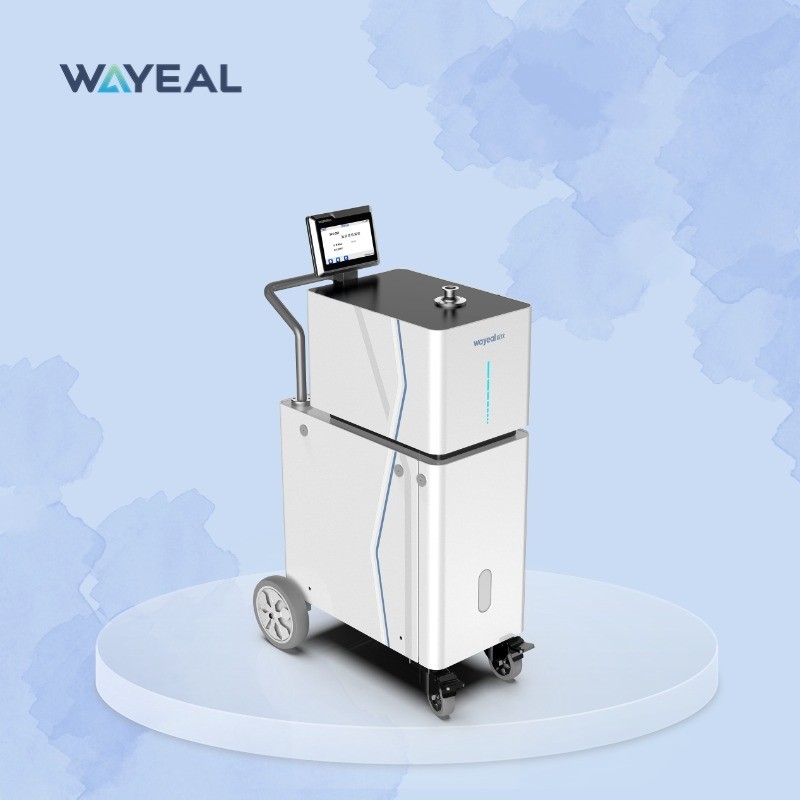

Precision Helium Leak Detector With MES Interface For Detecting H2

Basic Properties
Place of Origin: Anhui, China
Brand Name: Wayeal
Certification: CE
Model Number: SFJ-16C
Trading Properties
Minimum Order Quantity: 1 Unit
Price: Negotiate
Payment Terms: T/T, VISA
Supply Ability: 200 Units/Month
Tags

helium leak detector machine

helium mass spectrometer leak detector

vacuum helium leak detector
Specifications
Operating temperature: 0~40°C Leak detection port: DN25KF
MES Interface: Standard Detectable Quality: 2, 3, 4 (H2, He3, He4)
I/O Input output interface: 8 Inputs, 8 Outputs Communication Interface: RS232/485, LAN
Diamension: 475 * 714 *1168mm Product Name: Helium Leak Detector
High Light:

Precision Helium Leak Detector

,

MES Interface Helium Leak Detector

,

H2 Helium Leak Detector
Product Description

Introduction of Helium Leak Detector:

A helium leak detector works by detecting helium gas that is escaping from a leak in a system. The detector is connected to the system being tested and helium gas is introduced into the system. If there is a leak, the helium gas will escape from the system and be detected by the helium leak detector. The detector will then alert the operator of the leak.

Technical Parameters of Helium Leak Detector:

Product Name Helium Leak Detector
Mini Leak Detection Rate(Pa·m3/s)/Vaccum Mode 5*10-13 Pa·m3/s
Communication Interface RS232/485, LAN
Max Allowable Leak Detection Pressure (Pa) 1800Pa
Response Time(s) <1s
User Interface 7inch Color Touch Screen
Mini Leak Detection Rate(Pa·m3/s)/Sniffer Mode 2.5*10-9 Pa·m3/s
Dimension 755 * 467 * 1180mm
Detectable Quality 2, 3, 4 (H2, He3, He4)
Start Time (min) ≤1.58min
Ion Source 2pcs, Iridium coated yttrium oxide, automatic switching
Backing Pump Rotary Vane Vacuum Pump
Leak Detection Port DN25KF
Power Supply AC220V, 50Hz/60Hz
Operation Temperature 0~40°C
Language English/Chinese

Applications of Helium Leak Detector:

The helium leak detector is an essential tool for a variety of applications and scenarios. It is widely used in industries such as refrigeration, aerospace, and automotive to detect leaks in critical components such as heat exchangers, valves, and fuel tanks. It is also used in the semiconductor industry for detecting leaks in vacuum systems and chambers.

Methods of Helium Leak Detection (Helium Leak Detector)

Helium Vacuum Method

SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 1

Sniffer Method

SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 2Helium Hood Method



SFJ-16C Rapid Response Time Vacuum Helium Leak Test Equipment 3
