Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
SFJ-16C
Introduction of Helium Leak Detector
Helium Leak Detector
Helium leak testing is a method that is used to detect and locate leaks in many different industrial applications. This process involves pressurizing the system or having a component tested with a helium gas mixture. This is then followed by specialized helium leak detectors that are used to sense and measure the helium that escapes from any leaks. By analyzing the amount and concentration of helium, technicians are able to find the exact location of the leak.
Technical Parameters of Helium Leak Detector:
|

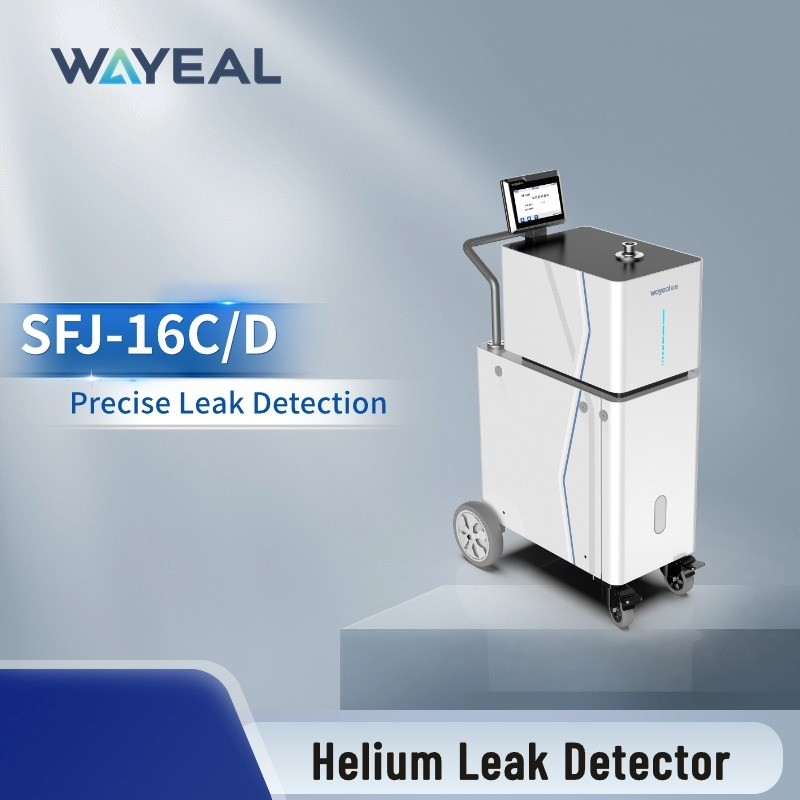

Wayeal SFJ-16C Wide Range Helium Leak Detector Machine With Sniffer and Spray Gun |
|
|---|---|
|
Product Name |
Helium Leak Detector |
|
Detection Method |
Helium Mass Spectrometer |
|
Leak Detection Port |
DN25KF |
|
Leak Rate Display |
Numbers, Bar Charts, Graphs |
|
Response Time(s) |
<1s |
|
User Interface |
7inch Color Touch Screen |
|
Operating temperature |
0~40°C |
|
Max Allowable Leak Detection Pressure (Pa) |
1800 |
|
Communication Interface |
RS232/485, LAN |
|
Detectable Quality |
2, 3, 4 (H2, He-3, He-4) |
|
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode |
5.0*10 -13 Pa.m3/s |
|
Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode |
2.5*10-9 Pa.m3/s |
|
Startup Time (min) |
≤2 |
|
Diamension |
475*714*1168mm |
|
Power Supply |
AC220V, 50Hz/60Hz |
|
Language |
Chinese/English |
Applications of Helium Leak Detector:
Helium leak detection has a wide range of applications and has been found to be an important process in various industries such as automotive, aerospace, HVAC, refrigeration and semiconductor manufacturing. From detecting leaks in refrigeration systems to finding leaks in underground pipelines, helium leak testing has shown efficacy across the everchanging sectors.
Methods of Helium Leak Detection (Helium Leak Detector)

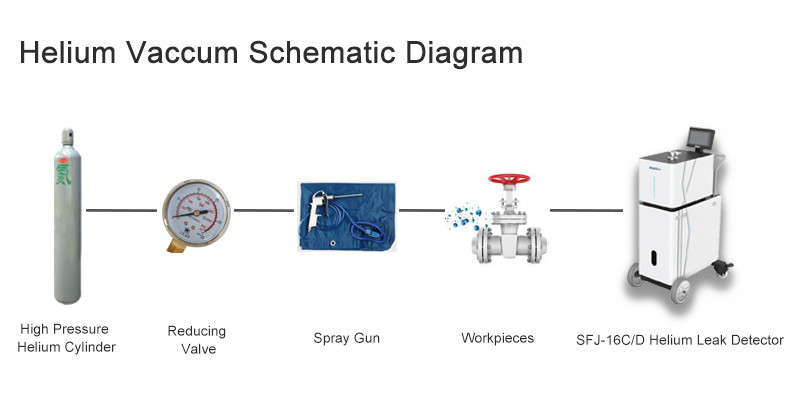

Helium Vacuum Method

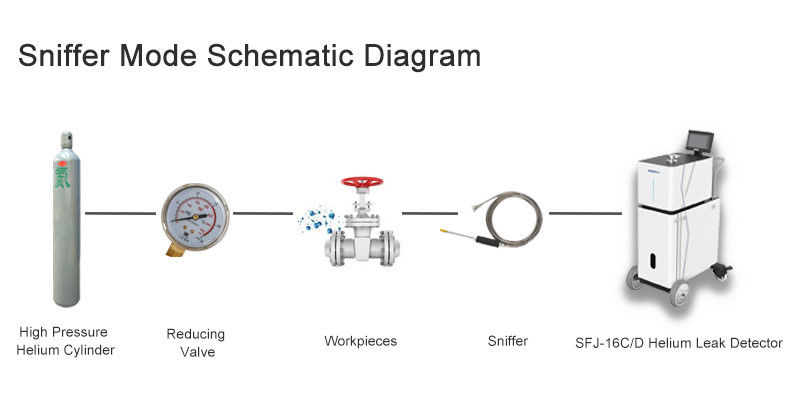

Sniffer Method

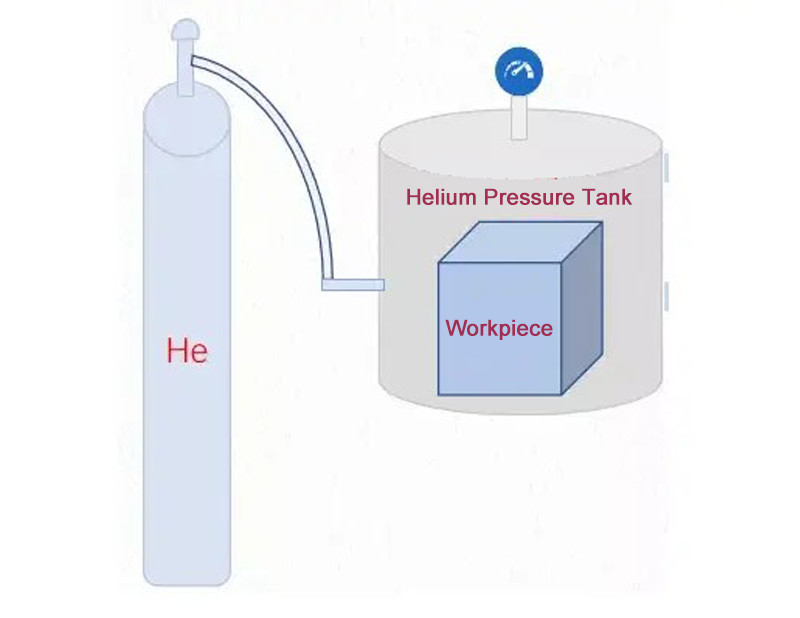

Helium Hood Method
