Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
SFJ-16D
Introduction of Helium Leak Detector:
A helium leak detector is a safe and easy leak testing instrument. The helium leak detector works by detecting helium gas that is escaping from a leak in a system. The detector is connected to the system being tested and helium gas is introduced into the system. If there is a leak, the helium gas will escape from the system and be detected by the helium leak detector. The detector will then alert the operator of the leak.
Technical Parameters of Helium Leak Detector:
|

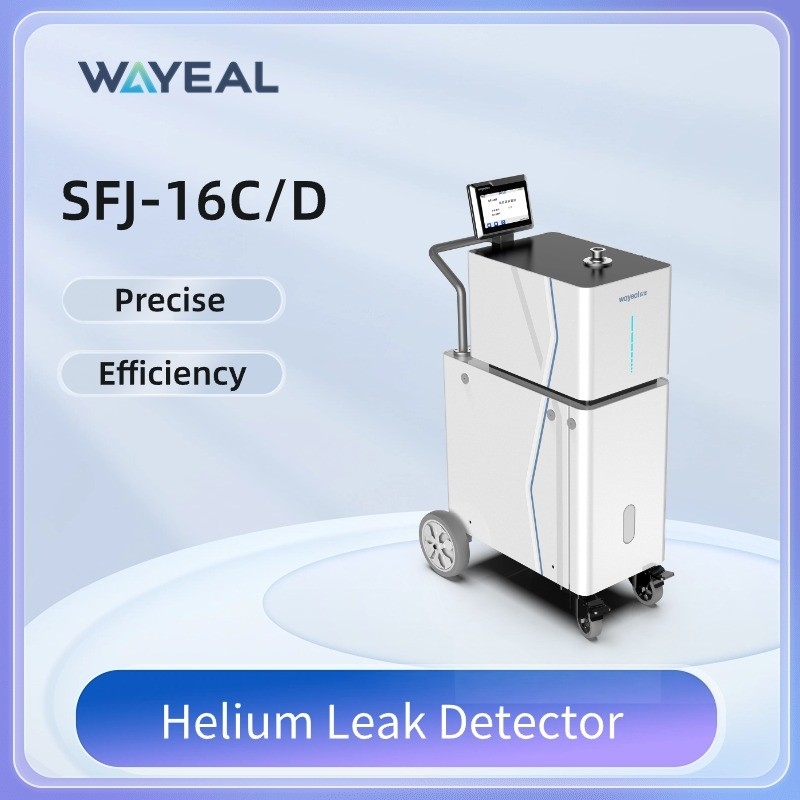

SFJ-16D Professional Helium Leak Detector for Accurate Leak Detection |
|
|---|---|
|
Product Name |
Helium Leak Detector |
| Detection Method | Helium Mass Spectrometer |
| Leak Detection Port | DN25KF |
| Leak Rate Display | Numbers, Bar Charts, Graphs |
| Response Time(s) | <1s |
| User Interface | 7inch Color Touch Screen |
| Operating temperature | 0~40°C |
| Max Allowable Leak Detection Pressure (Pa) | 1800Pa |
| Communication Interface | RS232/485, LAN |
| Detectable Quality | 2, 3, 4 (H2, He-3, He-4) |
| Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode | 2.5*10 -9 Pa.m3/s |
| Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode | 5.0*10-13 Pa.m3/s |
| Startup Time (min) | ≤1.58 |
| Backing Pumps | Scroll Vacuum Pump |
| Diamension | 755*467*1180mm |
| Power Supply | 220V, 50Hz/60Hz |
| Language | Chinese/English |
Applications of Helium Leak Detector:
Helium leak detectors are widely used in various industries to detect and locate small leaks. There are including: packing, freeze drying, evacuation, forming, pressing andlaminating, lithium battery manufacturing, heat treatment, coating, CNC processing.
Our Product Technical Support and Services for the Helium Leak Detector include:
Online Resources: Access our comprehensive online library of manuals, FAQs, and troubleshooting guides designed to help you understand and operate your Helium Leak Detector effectively.
Software Updates: Keep your Helium Leak Detector up-to-date with the latest software enhancements and performance improvements by downloading the latest firmware from our support portal.
Technical Assistance: Our skilled team of technical support engineers is available to provide expert advice and assistance with any questions or issues you may encounter with your Helium Leak Detector.
Training Services: We offer specialized training programs to help you and your team get the most out of your Helium Leak Detector, covering operation, maintenance, and best practices for leak detection.
Parts and Accessories: We supply a full range of genuine parts and accessories specifically designed for the Helium Leak Detector to maintain its performance and extend its service life.
Methods of Helium Leak Detection (Helium Leak Detector)

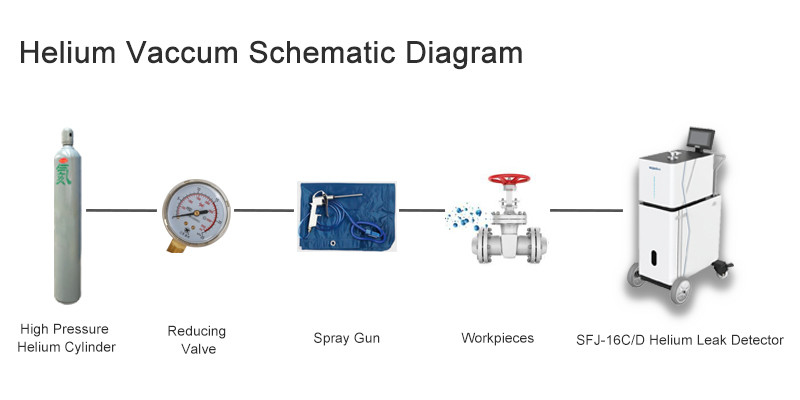

Helium Vacuum Method

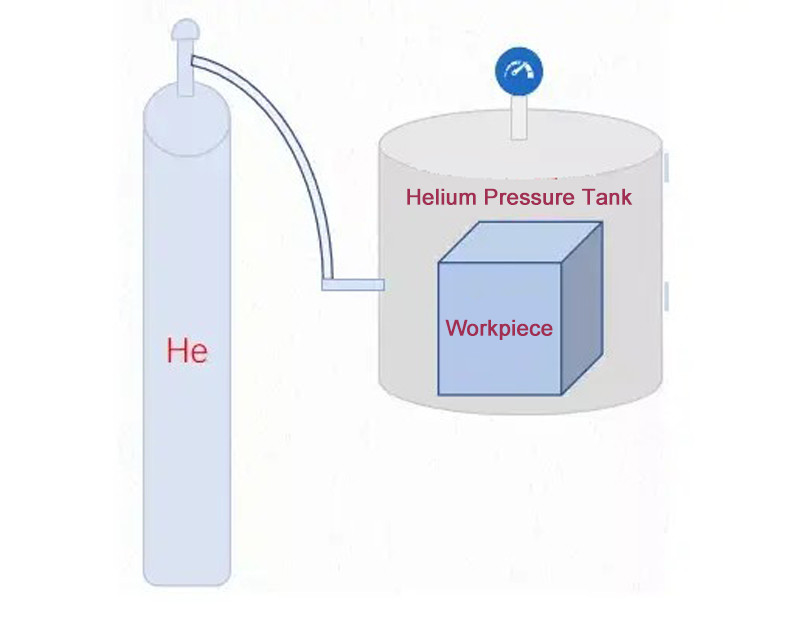

Helium Hood Method

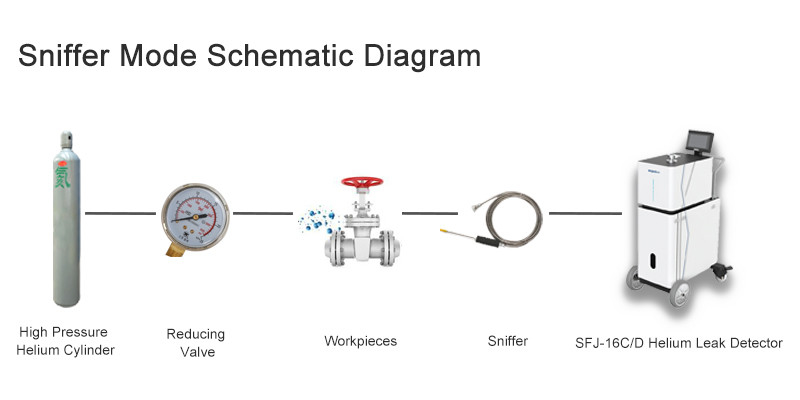

Sniffer Method
