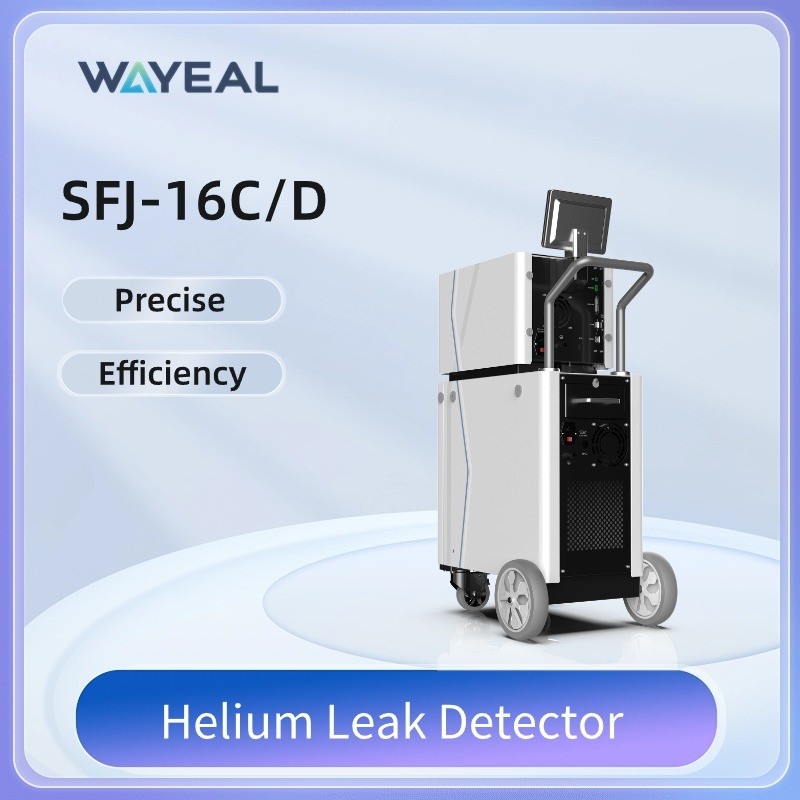

SFJ-16C Precision Helium Leak Detector For Accurate Leak Detection In Industries

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number SFJ-16C
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ion Source 2pcs, Iridium Coated Yttrium Oxide, Automatic Switching Detectable Quality 2, 3, 4 (H2, He-3, He-4)
Product Name Helium Leak Detector Language Chines/English
Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode 2.5*10-9 Pa.m3/s Detection Method Helium Mass Spectrometer
Power Supply AC220V, 50Hz/60Hz Diamension 475*714*1168mm
High Light

Precision Helium Leak Detector

,

Accurate Leak Detection Helium Leak Detector

,

Precision Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector



Helium Leak Detector



Helium leak testing is a highly specialized, non-destructive testing method used to detect and locate leaks in a system or component. This method employs helium, an inert, non-toxic, and non-flammable gas, as a tracer to find leaks in even the most intricate systems.





Technical Parameters of Helium Leak Detector:



SFJ-16C Precision Helium Leak Detector for Accurate Leak Detection in Industries

Product Name

Helium Leak Detector

Detection Method

Helium Mass Spectrometer

Leak Detection Port

DN25KF

Leak Rate Display

Numbers, Bar Charts, Graphs

Response Time(s)

<1s

User Interface

7inch Color Touch Screen

Operating temperature

0~40°C

Max Allowable Leak Detection Pressure (Pa)

1800

Communication Interface

RS232/485, LAN

Detectable Quality

2, 3, 4 (H2, He-3, He-4)

Mini Leak Detection Rate(Pa.m3/s)/Sniffer Mode

5.0*10 -13 Pa.m3/s

Mini Leak Detection Rate(Pa.m3/s)/Vacuum Mode

2.5*10-9 Pa.m3/s

Startup Time (min)

≤2

Diamension

475*714*1168mm

Power Supply

AC220V, 50Hz/60Hz

Language

Chinese/English





Applications of Helium Leak Detector:



SFJ-16C helium leak detector can be used in almost all applications for the leak testing of pipes, valves, tanks, vacuum pumps, etc.



Vacuum systems: Helium leak detectors are used to test the integrity of vacuum systems such as those used in semiconductor manufacturing, aerospace, and research facilities. They are used to detect leaks in vacuum chambers, valves, and other components of the system.


Refrigeration and air conditioning systems: Helium leak detectors are used to detect leaks in refrigeration and air conditioning systems. They are used to locate leaks in compressors, condensers, evaporators, and other components of the system.


Automotive industry: Helium leak detectors are used to test the fuel tanks, radiators, and other components of automobiles. They are used to detect leaks in the fuel system, cooling system, and air conditioning system.





Methods of Helium Leak Detection (Helium Leak Detector)

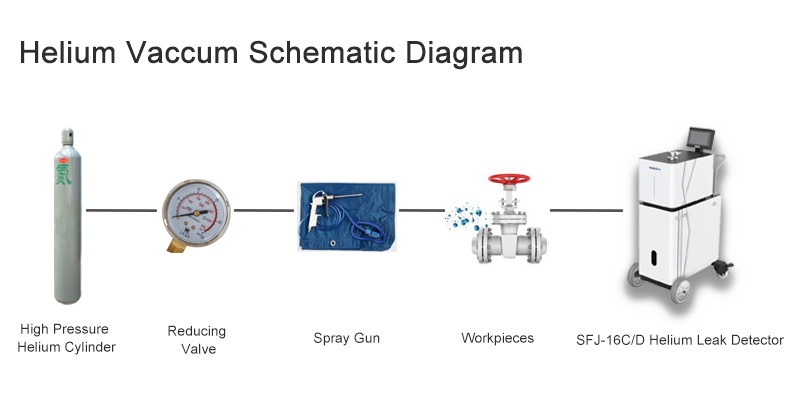

Helium Vacuum Method

SFJ-16C Precision Helium Leak Detector For Accurate Leak Detection In Industries 0

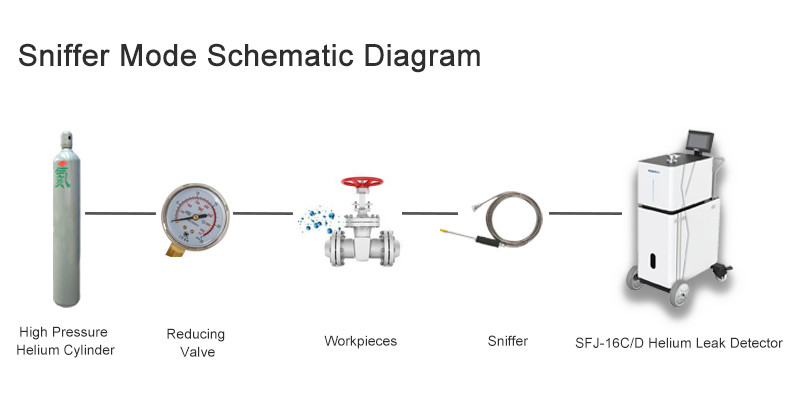

Sniffer Method

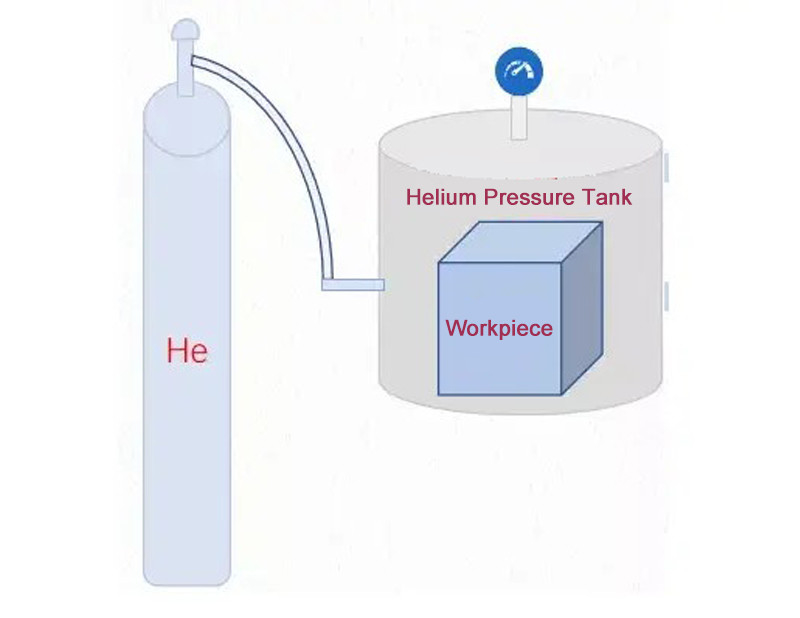

SFJ-16C Precision Helium Leak Detector For Accurate Leak Detection In Industries 1Helium Hood Method



SFJ-16C Precision Helium Leak Detector For Accurate Leak Detection In Industries 2

SFJ-16C Precision Helium Leak Detector For Accurate Leak Detection In Industries 3SFJ-16C Precision Helium Leak Detector For Accurate Leak Detection In Industries 4



SFJ-16C Precision Helium Leak Detector For Accurate Leak Detection In Industries 5
