Place of Origin:
Anhui, China
Brand Name:
Wayeal
Certification:
CE
Model Number:
LC103/LC101

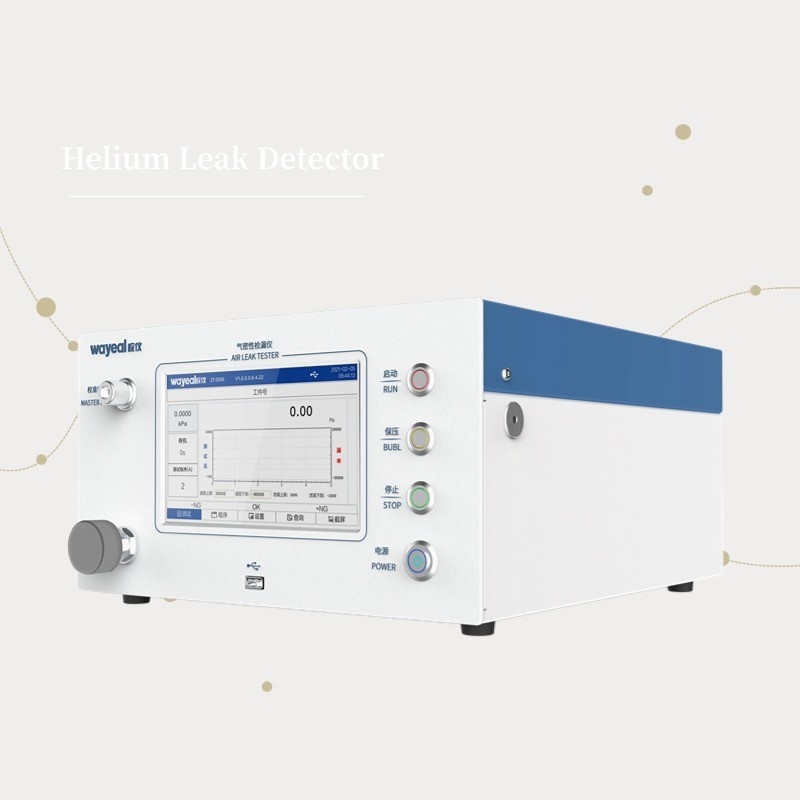

Introduction of Helium Leak Detector:
Helium leak testing is a highly specialized, non-destructive testing method used to detect and locate leaks in a system or component. This method employs helium, an inert, non-toxic, and non-flammable gas, as a tracer to find leaks in even the most intricate systems. Helium leak detectors operate based on the principle of mass spectrometry. When a system is suspected of having a leak, it is evacuated and then filled with helium.The helium that escapes through these leaks is drawn into the leak detector, where it is ionized and passed through a magnetic field. This process separates the helium ions from other gases. A detector then measures the quantity of helium ions, allowing for precise identification and localization of leaks.
Technical Parameters of Helium Leak Detector:
|
Helium Leak Testing Pressure Decay Airtightness Helium Leak Detector Machine |
||||
|---|---|---|---|---|
|
Product Name |
Helium Leak Detector |
|||
| Flow Sensor | Display Precision | The value can be set to 0 to 4 decimal places | ||
| Sensor Range | LC103 (V5) | 30mL/min~1000mL/min (optional) | ||
| LC101 (V6) | 15mL/min~1000mL /min (optional) | |||
| Sensor Error | ±3%F.S.(optional) | |||
| Direct Pressure | Display Precision | The value can be set to 0 to 4 decimal places | ||
| Recommended Test Pressure Range | LC103 (V5) | Mechanical Pressure Regulating | 10~600kPa (Optional) | |
| LC101(V6) | Mechanical Pressure Regulating | 10~600kPa (Optional | ||
| Sensor Error | ±0.1%FS. | |||
| Display Unit | Test Pressure | kPa,Mpa,kg/cm2,psi,mbar.bar, Torr,mmH,O,mmHg | ||
| Leakage | mL/s,mL/min,L/min,Lh,m3/h,Pa/min,g/h,SCCM | |||
| Parameter Program Number | 64 groups(1~64) | |||
| Test Beat Setting | 0~999 seconds, test time 1800 seconds | |||
| Power Supply | AC220V±10%, 50Hz | |||
| Test Pressure Source | Clean, Dry, Adequate flow, no less than 500KPa and 100KPa above the test pressure source | |||
| Overall Diamensions | Standard V5 | 330mm*222mm*448mm | ||
| Standard V6 | 321mm*205mm*560mm | |||
| Weight | About 16kg | |||
Industrial Applications
Helium leak detector is widely used in the industrial sector to detect and locate leaks in various types of equipment. Some of the most common industrial applications of helium leak detector include:
Detection of leaks in refrigeration and air conditioning systems
Testing of fuel tanks and pipelines for leaks
Leak testing of vacuum systems
Testing of hermetic seals on electronic components
Leak testing of pressurized containers and vessels
Helium leak detector is preferred in industrial applications because of its high sensitivity and accuracy in detecting leaks, even in the smallest of leaks. This helps to prevent equipment failure, reduce energy waste, and ensure the safety of workers and the environment.
Product Documentation: Detailed user manuals and quick-start guides are available to help you understand your device and get started with it quickly.
Software Updates: Keep your Helium Leak Detector up to date with the latest software enhancements and bug fixes to ensure optimal performance and new features.
Technical Training: We offer technical training sessions to equip your team with the knowledge and skills required to operate the Helium Leak Detector effectively and safely.
Parts and Consumables: We supply a full range of genuine parts and consumables designed specifically for your Helium Leak Detector to ensure continued high performance and reliability.
Remote Support: Our technical support team is available to provide remote assistance and guidance for troubleshooting and resolving issues without the need for on-site visits, whenever possible.
Methods of Helium Leak Detection (Helium Leak Detector)
Helium Vacuum Method
Helium Hood Method
Negative Pressure Method
Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

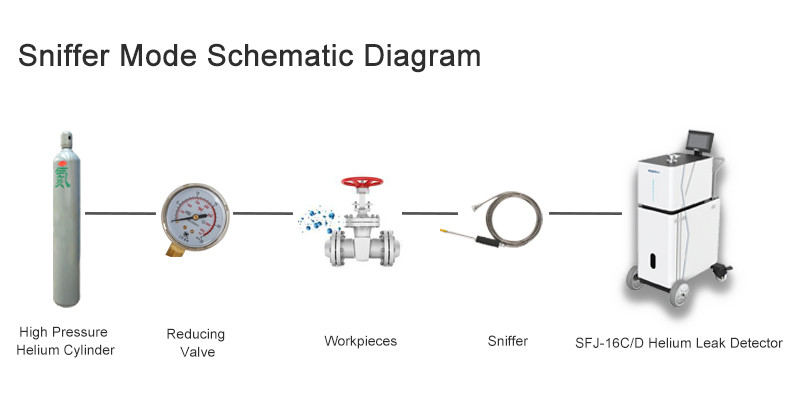

Sniffer Method
