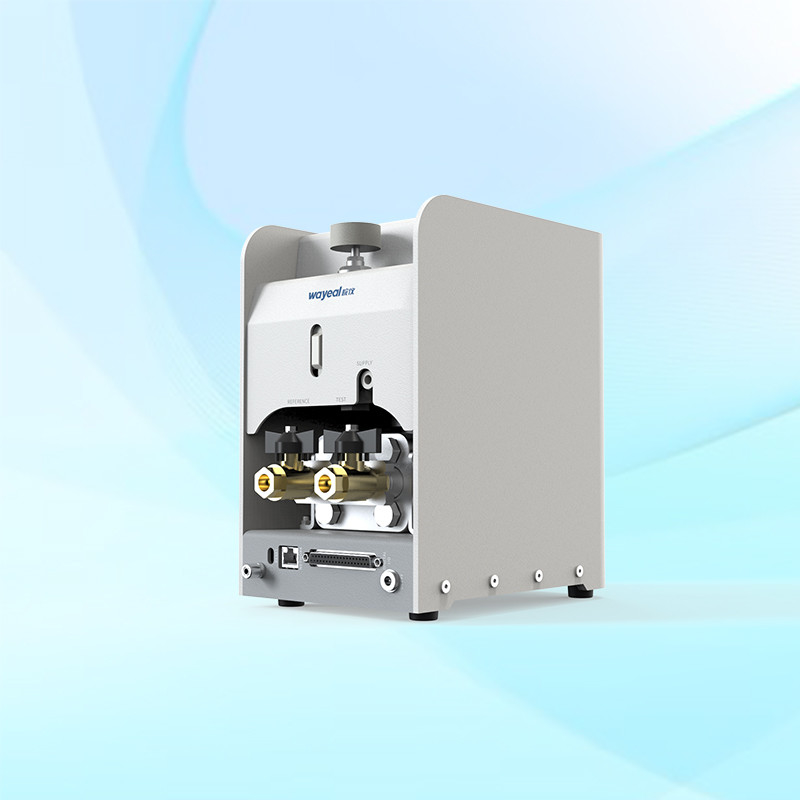

Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector

Place of Origin Anhui, China
Brand Name Wayeal
Certification CE
Model Number V6
Minimum Order Quantity 1 Unit
Price Negotiate
Packaging Details Wooden Case
Delivery Time 35 days
Payment Terms T/T, VISA
Supply Ability 200 Units/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Helium Leak Detector Differential Pressure Sensor Range 0Pa~ ±2000Pa
Sensor Error ±0.1%F.S. Power Supply AC 220V+10%, 50Hz
Weight 20KG Parameter Program Number 64 Groups (1~64)
High Light

Vaccum Helium Leak Detector

,

Modular Airtightness Helium Leak Detector

,

Modular Helium Leak Detector

Leave a Message
Product Description

Introduction of Helium Leak Detector:



A helium leak detector is used to test vacuum products or vacuum vessels for leaks into, or out of the test subject. A helium leak detector utilizes a mass spectrometer to ionize the helium particles to arc in a predictable fashion to allow the helium to hit the ion collector on the other side to be measured.





Technical Parameters of Helium Leak Detector:



Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector

Differential Pressure Sensor Display Precision The value can be set to 0 to 4 decimal places
Sensor Range 0Pa~±2000Pa
Sensor Error ±0.1% F.S.
Direct Pressure Sensor Display Precision The value can be set to 0 to 4 decimal place
Recommended Test Pressure Range Standard V5 VH90B Mechanical Pressure Regulating -100kPa~ -1kPa
CH050 Mechanical Pressure Regulating 5kPa~ 100kPa
CH050D Mechanical Pressure Regulating 5kPa~ 89kPa
CH600 Mechanical Pressure Regulating 10kPa~ 600kPa
CH600D Mechanical Pressure Regulating 5kPa~ 490kPa
CH1000 Mechanical Pressure Regulating 50kPa~ 1200kPa
CH1000D Mechanical Pressure Regulating 50kPa~ 890kPa
CH4000 Mechanical Pressure Regulating 50kPa~ 4000kPa
CH500 Mechanical Pressure Regulating 10kPa~ 5000kPa (seals leak detector)
ZF500 Mechanical Pressure Regulating -100kPa~ -1kPa, 10kPa~ 500kPa
ZF2500 Mechanical Pressure Regulating -100kPa~ -1kPa, 50kPa~ 2400kPa
Standard V6 ZF600 Mechanical Pressure Regulating -100kPa~ -1kPa, 10kPa~ 600kPa (Optional)
ZF2400 Mechanical Pressure Regulating -100kPa~ -1kPa, 50kPa~ 2400kPa (Optional)
Sensor Error ±0.25% F.S.
Display Unit Test Pressure kPa,MPa,kg/cm2,psi,mbar,bar,Torr,mmH20,mmHg
  Leakage Rate Pa,kPa,Pas,Pa·m3/s,mL/s,mL/min,mL/h,L/min,L/h,SCCM
Parameter Program Number 64 Groups (1~64)
Test Beat Setting 0~99 seconds, test time 1800 second
Power Supply AA220V ±10%, 50Hz
Test Pressure Source Clean, dry, adequate flow, not less than 500KPa and 100KPa above the test pressure pressure source

Diamension





Standard V5 330mm*222mmm*448mm
Standard V6 321mm*205mm*460mm
Modular 160mm*268mm*273mm
Weight 20kg


Applications of Helium Leak Detector:

The Helium Leak Detector is a state-of-the-art instrument designed for precise detection and localization of leaks in a wide range of applications.



Automotive: In the automotive industry, helium leak testing is used for testing fuel tanks, radiators, air-conditioning systems.



Battery: In the energy industry, helium leak testing is used to test the integrity of the battery pack, battery housing, and even pouches and cells to prevent leaks and ensure safety.



Military: In military applications, helium leak testing is vital for ensuring the reliability of weapons systems, communication equipment, and vehicles. The method is used to detect leaks in everything from missile casings to submarine hulls, contributing to national security.



Support and Services:



Our Product Technical Support and Services for the Helium Leak Detector include:



Online Resources: Access our comprehensive online library of manuals, FAQs, and troubleshooting guides designed to help you understand and operate your Helium Leak Detector effectively.



Software Updates: Keep your Helium Leak Detector up-to-date with the latest software enhancements and performance improvements by downloading the latest firmware from our support portal.



Technical Assistance: Our skilled team of technical support engineers is available to provide expert advice and assistance with any questions or issues you may encounter with your Helium Leak Detector.



Training Services: We offer specialized training programs to help you and your team get the most out of your Helium Leak Detector, covering operation, maintenance, and best practices for leak detection.





Parts and Accessories: We supply a full range of genuine parts and accessories specifically designed for the Helium Leak Detector to maintain its performance and extend its service life.



Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector 0





Methods of Helium Leak Detection (Helium Leak Detector)

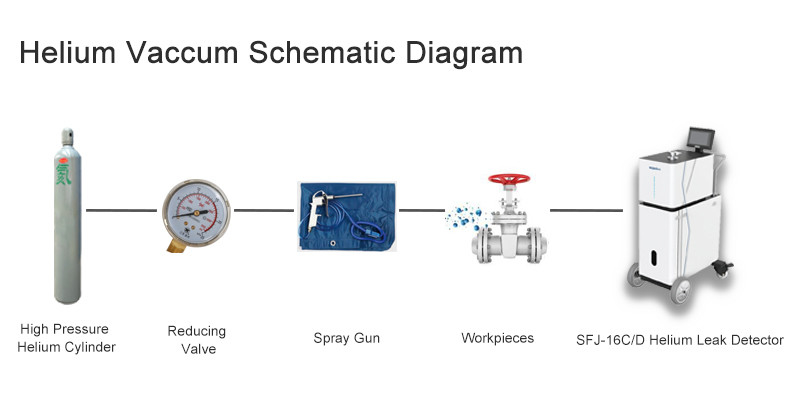

Helium Vacuum Method

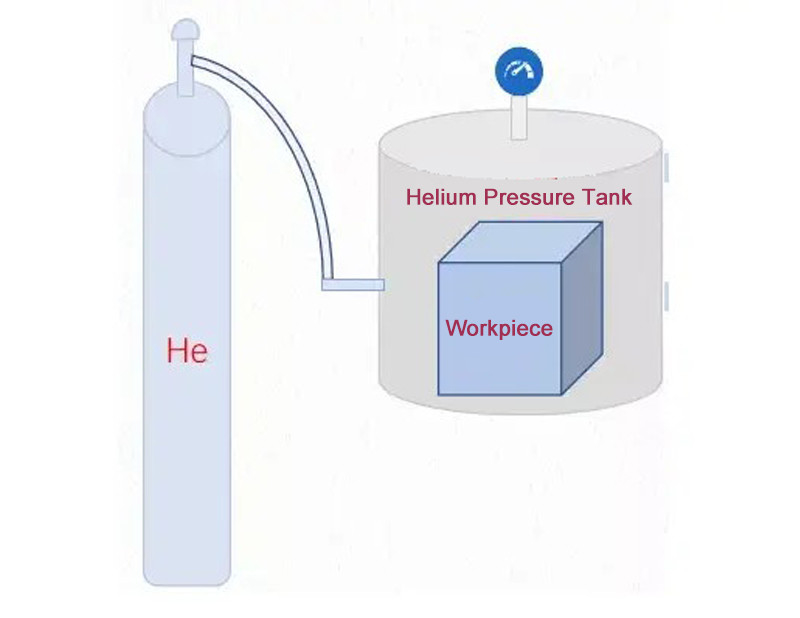

Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector 1Helium Hood Method



Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector 2



Negative Pressure Method

Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector 3



Vacuum Chamber Helium Leak Detection and Recovery System (external filling)

Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector 4

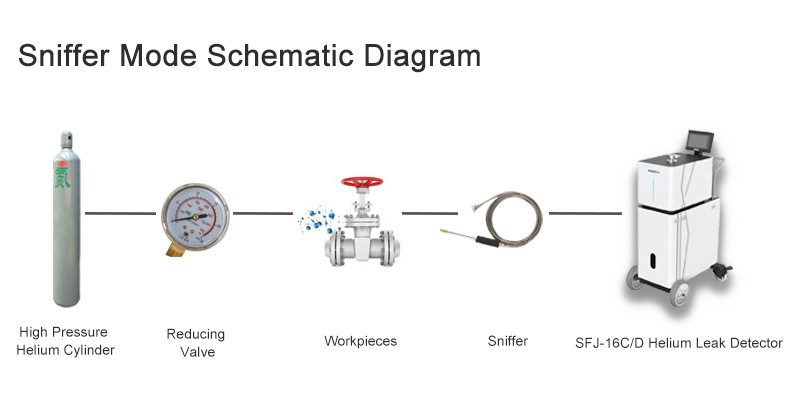

Sniffer Method

Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector 5



Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector 6Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector 7



Modular Airtightness Helium Leak Detection Equipment Vaccum Helium Leak Detector 8
